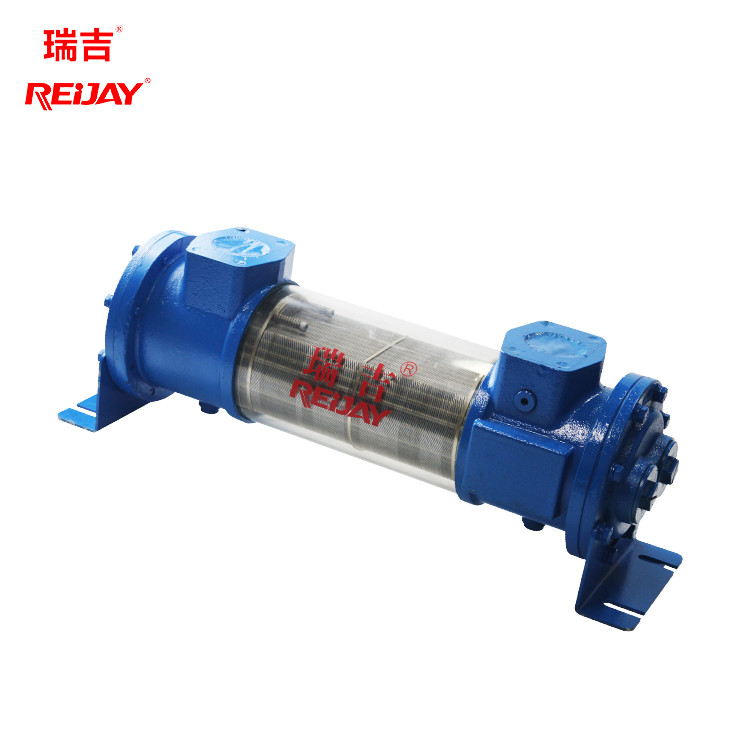

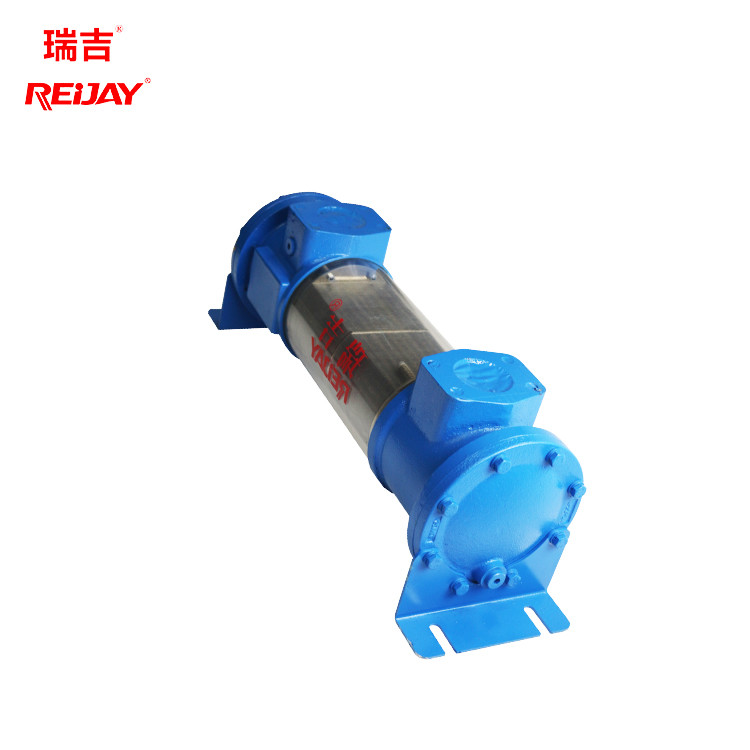

Heat Exchange Industrial Hydraulic Oil Cooler Pump

  • Heat Exchange Industrial Hydraulic Oil Cooler Pump
  • Heat Exchange Industrial Hydraulic Oil Cooler Pump
Place of Origin China
Brand Name REIJAY
Certification Provide
Model Number Tube
Minimum Order Quantity 1 set
Price USD10.00-USD50.00
Packaging Details Yes
Delivery Time 7 days
Payment Terms T/T, D/P, Western Union
Supply Ability 500 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Hydraulic Pumps Feature High Heat Exchange Efficiency
Specification Multiple Choices Advantage High Cooling Efficiency
Name Hydraulic Oil Cooler Customize Yes
Warranty 2 Year After-sales Service Provided Online Support
Structure Tube Condition New
High Light

industrial hydraulic oil cooler

,

Pump hydraulic oil cooler

,

heat exchange oil cooler
Leave a Message
Product Description

High Heat Exchange Efficiency and Eradication of Leaks Hydraulic Oil Cooler Applied to Hydraulic Pumps



      The Hydraulic Oil Cooler is placed in the cooling water circuit and uses the temperature of the cooling water to control the temperature of the lubricating oil. When the temperature of the lubricating oil is high, it is cooled by the cooling water, and when the engine is started, the heat is absorbed from the cooling water to rapidly increase the temperature of the lubricating oil. The oil cooler consists of an aluminum alloy cast casing, front cover, rear cover and copper core tube. In order to enhance cooling, heat sinks are installed on the outside of the tube. The cooling water flows outside the tube, the lubricating oil flows inside the tube, and the two exchange heat. There are also structures that allow oil to flow outside the tube and water to flow inside the tube.



Technical Specifications



  Material description Standard water coolers Seawater coolers others
  Cooling water pipe Copper-nickel 90/10 (Cu Ni 90/10) Copper-nickel 90/10 (Cu Ni 90/10) Red copper/stainless steel 1.4404(AISI316L)
Shell, plate, bracket, bypass valve Steel (ST) Steel (ST) 　
End cover Cast iron (GG25) Copper plated nickel Stainless steel 1.4408 (AISI316)
Fin-plate Aluminum (Alu) Aluminum (Alu) Red copper/stainless steel 1.4301 (AISI304)
Tube plate Steel (ST) Copper-nickel 90/10 (Cu Ni 90/10) Stainless steel
  sealing Flat gasket C 4400 　 　
  Model type Flow in shell Water flow
  Components 　 1 channel 2 channel 4 channel
  CU CuNi VA CU CuNi 1.4404(AISI316L) CopperCU CuNi 1.4404(AISI316L)
RN60 75 　 70 105 23 35 54 - - -
RN80G/F 225 90 135 202 45 67 100 22 34 51
RN125G 330 206 310 465 103 155 232 51 77 115
RN125F 400 206 310 465 103 155 232 51 77 115
RN175 850 410 614 921 205 307 460 102 154 230

Heat Exchange Industrial Hydraulic Oil Cooler Pump 0



Our Strategic Partners

Heat Exchange Industrial Hydraulic Oil Cooler Pump 1



Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.





FAQ

Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.



Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment



Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters



Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.



Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.



Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.



Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.



Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
