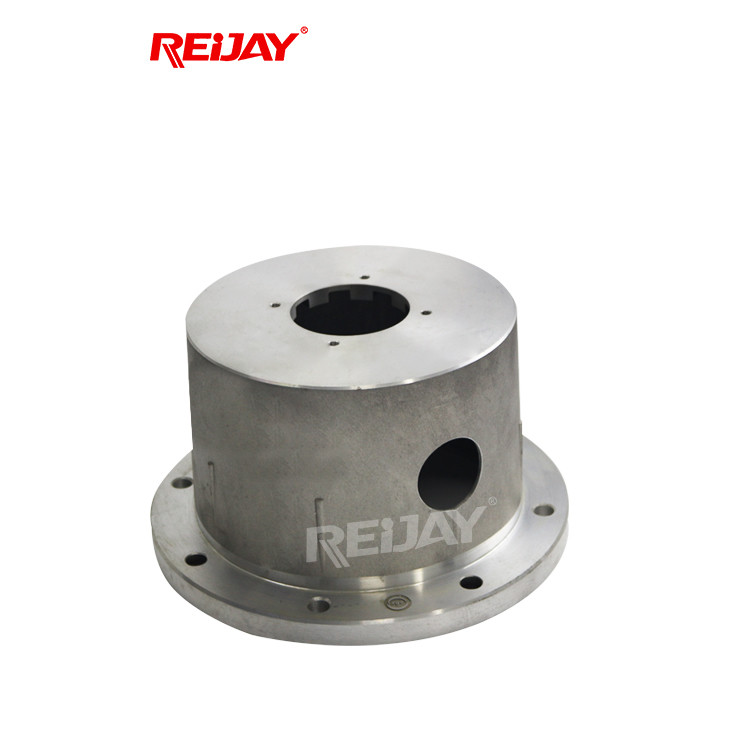

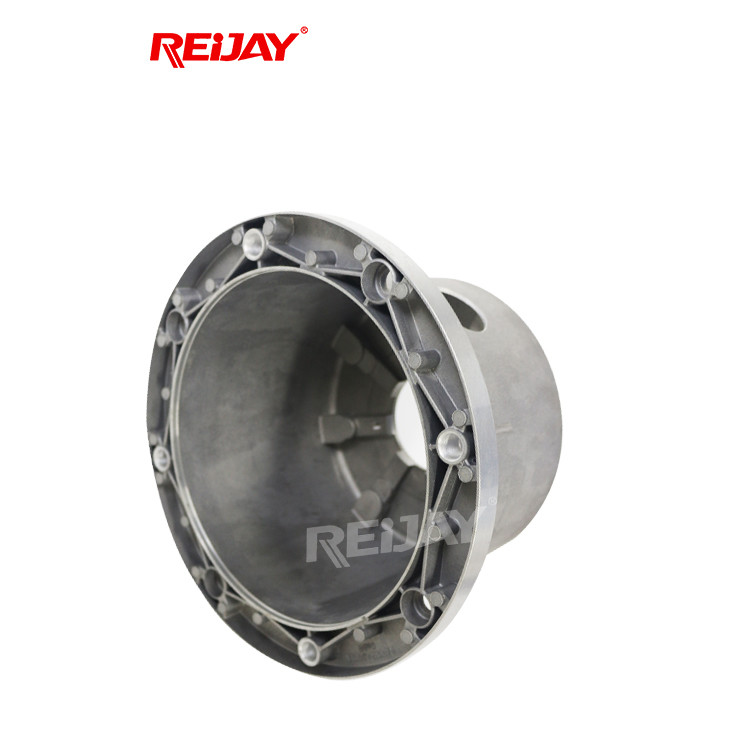

Die Casting Electric Motor Bellhousing Aluminum Hydraulic Pump Bell Housing Rc400
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Aluminum,Cast Iron | Application | Hydraulic Pump Or Motor |
---|---|---|---|
Keywords | Aluminum Die Casting Motor Bell Housing Pump Cover Bell Housing RC400 | Brand | REIJAY |
Model | RC400 | USED FOR | Connect Iec Motor And Pump And Pump |
Origin | China | Packing | Carton Plus Wooden Case |
Manufacturing Process | Die Casting, Low Pressure Casting,Option Gravity Casting | Service | OEM And ODM |
High Light | Die Casting Electric Motor Bellhousing,Aluminum Electric Motor Bellhousing,RC400 hydraulic pump bell housing |
Aluminum Die Casting Motor Bell Housing Pump Cover Bell Housing RC400
High quality customized aluminum bellhousing It is used for the connection of IEC standard motors and pumps or NEMA standard motors and pumps. The motor shaft and pump shaft are designed as selfaligning, and the dimensions are made in line with the VDMA245561 standard. It could be used in heavy loads. The material for the bell housing could be chose from aluminum alloy, cast iron and nylon. By pressure casting with high medium and low pressure, it is made. Using flow forming and spraying forming technology, the products would present a feature of light weight, compact interior structure, high strength and good heat dissipation capability. Embedded shock absorption or external shock absorption is optional.
General Products Application /Service Area:
Metal parts for vehicle, agriculture machine, construction machine, transportation equipment, Valve and Pump system. E.g. Engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve,Fitting , flange, wheel, flywheel, oil pump housing, starter housing,transmission shaft , transmission gear, sprocket, chains etc.
Technical Specifications
Typeof bellhousing | E-Motor Frame size | Power [kW] | Shaftend Dxl [mm] | Footbracket | DI | D2 | D3 | D4 | d1 | d2 | d3 | L | L1 | F | G | G1 | H2 |
RC 160/80/... | 71 | 0.25 | 14x30 | PTFL160 | 160 | 130 | 110 | 110 | 21 | 107 | 30 | 13 | 4 | 9 | S8 | 3.5 | |
RC 160/90/... | 0.37 | 90 | |||||||||||||||
RC 200/100/... | 80 | 0.55-0.75 | 19x40 | PTFL200 | 200 | 165 | 130 | 145 | 36 | 129 | 100 | 16 | 5 | 11 | ^110 | 12.5 | |
RC 200/110/... | 90S+L | 1.1-1.5 | 24x50 | 110 | |||||||||||||
RC 200/118/... | 118 | ||||||||||||||||
RC 200/124/... | 128 | 124 | |||||||||||||||
RC 200/140/... | 140 | ||||||||||||||||
RC 250/120/... | 100L | 2.2-3 | 28x60 | PTFL250 | 250 | 215 | 180 | 190 | 45 | 178 | 172 | 120 | 19 | 5 | 14 | M12 | 14.5 |
RC 250/124/... | 112M | 4 | PTFS250 | 124 | |||||||||||||
RC 250/128/... | 128 | ||||||||||||||||
RC 250/135/... | 135 | ||||||||||||||||
RC 250/148/... | 172 | 14S | |||||||||||||||
RC 250/175/... | 176 | 175 | |||||||||||||||
RC 300/144/... | 132S | 5.5 | 38x80 | PTFL300 | 300 | 265 | 230 | 234 | 50 | 222 | 217 | 144 | 20 | 5 | 14 | M12 | 18 |
RC 300/150/... | 132M | 7.5 | PTFS300 | 221 | 150 | ||||||||||||
RC 300/155/... | 155 | ||||||||||||||||
RC 300/168/... | 220 | 168 | |||||||||||||||
RC 300/196/... | 217 | 196 | |||||||||||||||
RC 350/188/... | 160 M+L | 11-15 | 42x110 | PTFS350 | 350 | 300 | 250 | 260 | 41 | 236 | 231 | 188 | 26 | 6 | 18 | M16 | 18 |
RC 350/204/... | 180 M+L | 18.5-22 | 48x110 | 53 | 234 | 204 | |||||||||||
RC 350/228/… | 70 | 232 | 228 | 228 | |||||||||||||
RC 350/256/... | 90 | 230 | 226 | 256 | |||||||||||||
RC 400/204/... | 200 L | 30 | 55x110 | PTFS400 | 400 | 350 | 300 | 300 | 50 | 265 | 260 | 204 | 26 | 6 | 18 | M16 | 22 |
RC 400/228/... | 262 | (DF350) | 228 | ||||||||||||||
RC 400/256/... | 259 | 283 | 256 | ||||||||||||||
RC 450/234/... | 225 S | 37 | 60x140 | PTFS450 | 450 | 400 | 350 | 350 | 80 | 301 | (DV400) | 234 | 26 | 6 | 18 | M16 | 20 |
RC 450/262/... | 225 M | 45 | 297 | 362 | 262 | ||||||||||||
RC 450/285/... | 276 | (DF4O1) | 285 | ||||||||||||||
RC 450/315/... | 315 | ||||||||||||||||
RC 550/248/... | 250 M | 55 | 65x140 | PTS5500 | 550 | 500 | 450 | 450 | 80 | 362 | 248 | 26 | 6 | 18 | M16 | 20 | |
RC 550/265/... | 280 S+M | 75-90 | 75x140 | 359 | 265 | ||||||||||||
RC 550/275/... | 276 | 275 | |||||||||||||||
RC 550/295/... | 295 | ||||||||||||||||
RC 550/315/... | 315 | ||||||||||||||||
RC 660/310/... | 315 S+M+L | 110-132 | 80x170 | PTS660 | 660 | 600 | 550 | 550 | 80 | 414 | 310 | 32 | 6 | 23 | M20 | 20 | |
RC 660/330/... | 160-200 | 276 | 330 | ||||||||||||||
RC 660/345/... | 345 | ||||||||||||||||
RC 800/315/..** | 355 L | 250-315 | 95x170 | 800 | 740 | 680 | 680 | 125 | 468 | 315 | 60 | 10 | 23 | M20 | 35 | ||
RC 800/335/..** | 400 L | 355-400 | 100x210 | 474 | 335 | ||||||||||||
RC 800/350/..** | 435 | 350 | |||||||||||||||
RC 800/443/..** | 490 | 443 |
Our Strategic Partners
Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.
Q: Who are we?
We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.
Q: How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment
Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters
Q: What can you buy from us?
Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.
Q: Why should you buy from us, not from other suppliers?
We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.
Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.
Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.
Q: What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery;
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
