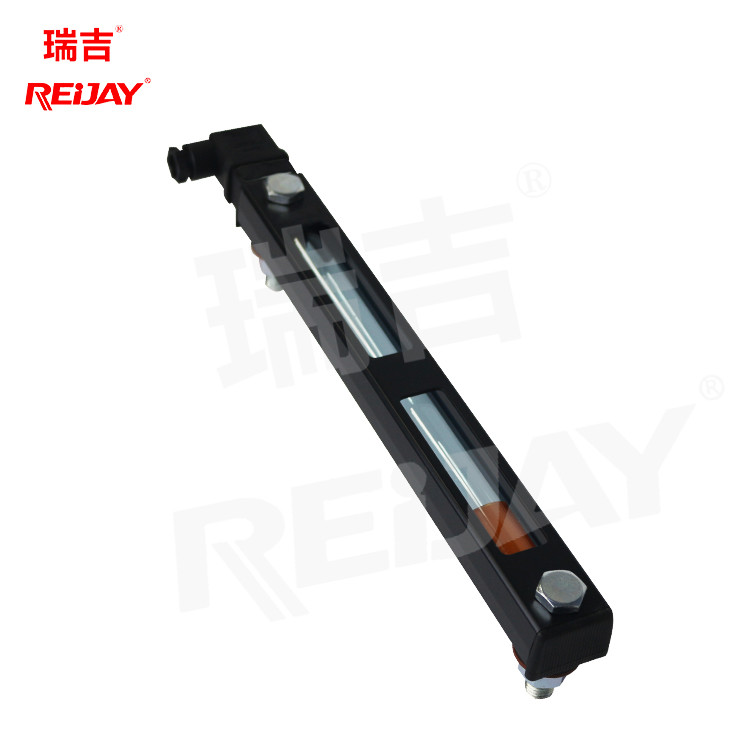

Hygienic SF Hydraulic Tank Sight Glass / Hydraulic Tank Level Gauge 381mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature | -20℃~+80℃ | Applicable Medium | DIN |
|---|---|---|---|
| Feature | No Maintenance Required | Advantage | Safe And Environmentally |
| Specification | Safe To Use | Customize | Support |
| Name | Hydraulic Oil Level Gauge | Oem | Yes |
| Application | Hygienic Liquid Storage Container | ||
| High Light | Hygienic Hydraulic Tank Sight Glass,SF Hydraulic Tank Sight Glass,381mm Hydraulic Tank Level Gauge |
||
Product Description
No maintenance required Safe to use Hydraulic Oil Level Gauge for use in hydraulic systems
Hydraulic Oil Level Gauge clearly indicates the height of the liquid level, the display is intuitive and eye-catching, the indicator is completely isolated from the storage tank, the use is safe, the design is reasonable, the structure is simple, the installation is convenient and reliable, the performance is stable, the service life is long, the maintenance cost is low, and the convenience Installation and maintenance advantages.
Technical Specifications of Hydraulic Oil Level Gauge:
| LV/E1- | ||
| Oil level indicator | ||
| Without switch, visual indicator | E | |
| No variable switch possible min. level | E1* | |
| No variable switch possible minJmax. level | E2* | |
| Round thermometer | TS | |
| 254- | ||
| Interaxis fastening screws | ||
| Standard length L | 76 | 127 |
| 254 | 381 | |
| 508 | 635 | |
| Special length up to 4000 mm | xxxx | |
| M12- | ||
| Fastening screws | ||
| M12 | Standard Thread | |
| M10 | On Request | |
| S1 | ||
| Optional Electromagnetic Switches ,Variable only starting from 127 mm |
||
| S1 S2 S3 |
Contacts open, with oil *** | |
| Material Specification | ||
| End covers Protection shield Control glass Gaskets Gaskets in connection with Pyrex tube Fastening screws M12(MW) |
Nylon glass-fibre 35% Aluminium U-profile Shock-resistant Acryl tube NBR Viton Stainless steel |
|
| Technical Specification | ||
| Commutable power D. C. | 20 W | |
| Commutable power A.G | 20 VA | |
| Max. current D.CJA.C | 1A | |
| Operation voltage | 200 V | |
| Temperature range Acryl tube | -20 to+70 °C | |
| Temperature range Pyrex tube | -20 to+100 °C | |
| Connector | DIN40050; PG 7 | |
| Protection class | IP 65 | |
| Suitable liquids | Hydraulic oil, Petrolium, water | |
