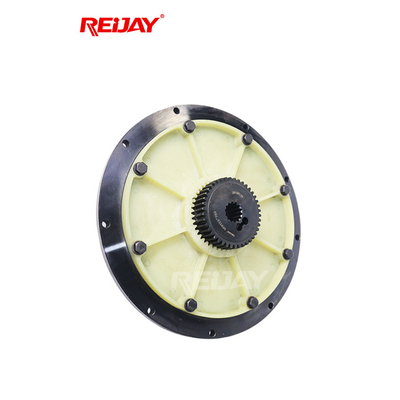

Hydraulic Pump Rubber Flexible Coupling BoWex 100FLE-PA-352.35 HUB 352*48Teeth

  • Hydraulic Pump Rubber Flexible Coupling BoWex 100FLE-PA-352.35 HUB 352*48Teeth
  • Hydraulic Pump Rubber Flexible Coupling BoWex 100FLE-PA-352.35 HUB 352*48Teeth
Place of Origin China
Brand Name REIJAY
Certification Provide
Model Number LK100 10''
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Yes
Delivery Time Negotiable
Payment Terms Negotiable
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Body Materail STEEL KEY WORDS BoWex 100FLE-PA-352.35 Hydraulic Pump Rubber Flexible Coupling Assy With HUB 352*48Teeth
MODEL RJK200 Application Construction Machinery Engine
Certification ISO9001/ITS16949 Feature High Transmission Rate;high Mechanical Strength
Standard SAE Flywheel Warranty 2years
High Light

BoWex Rubber Flexible Coupling

,

352*48Teeth Rubber Flexible Coupling

,

100FLE-PA-352.35
Leave a Message
Product Description



BoWex 100FLE-PA-352.35 hydraulic pump rubber flexible coupling assy with HUB 352*48Teeth



Technical Specifications



SAE Standard Flywheel Parameter

Size Bolt Mounting Center Circke D1(mm) Outer Diameter D(mm) Bolt Hole Diameter (mm) Bolt Hole Quantity
7 1/2" 200.02 215.90 9 6
7 1/2" 222.25 241.30 9 8
8" 244.47 263.52 11 6
10" 295.27 314.32 11 8
111/2" 333.37 352.42 11 8
14" 438.15 466.72 14 8



Size Bolt Mounting Center Circke D1(mm) Outer Diameter D(mm) Bolt Hole Diameter Quantity (mm) Location Dimension
96 50 96 4x8 70
125 100 125 3x8 80
135 100 135 3x8 135
150 130 150 5x8 106
152 122 152 3x12 105
155 125 155 3x12 155
210 185 210 3x10 125
220 165 220 6x10 220
220 185 220 3x12 125
170 140 170 3x14 170
209 165/170 209 6x16/3x16 209



RB series FL Flywheel Coupling Technical Parameter

Size Prebore (mm) Dimension (mm) Special Length SAE Size Axial Radial Angular
min max B D2 L1 L2 L3 L4 L5 L1max (mm) 61/2" 71/2" 8" 10" 111/2" 14" * max offset (mm)
42 20 42 65 100 42 35 42 20 13 60 X X X X 　 　 ±1 ±0.4 ±1°
48 20 48 68 100 50 43 50 20 13 60 X X X X 　 　
65 25 65 96 132 55 49 55 27 21 70 — 　 　 X 　 　 ±0.6
65 25 65 96 172 55 46 55 31 22 70 — 　 　 　 X 　
80 30 80 124 172 55 46 55 30 21 90 — 　 　 　 X X ±0.8
100 38 100 152 265 70 78 70 35 21 110 — — — — X X 　 　 　

Hydraulic Pump Rubber Flexible Coupling BoWex 100FLE-PA-352.35 HUB 352*48Teeth 0

Hydraulic Pump Rubber Flexible Coupling BoWex 100FLE-PA-352.35 HUB 352*48Teeth 1





Our Strategic Partners





Hydraulic Pump Rubber Flexible Coupling BoWex 100FLE-PA-352.35 HUB 352*48Teeth 2



Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.





FAQ

Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.



Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment



Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters



Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.



Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.



Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.



Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.



Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
