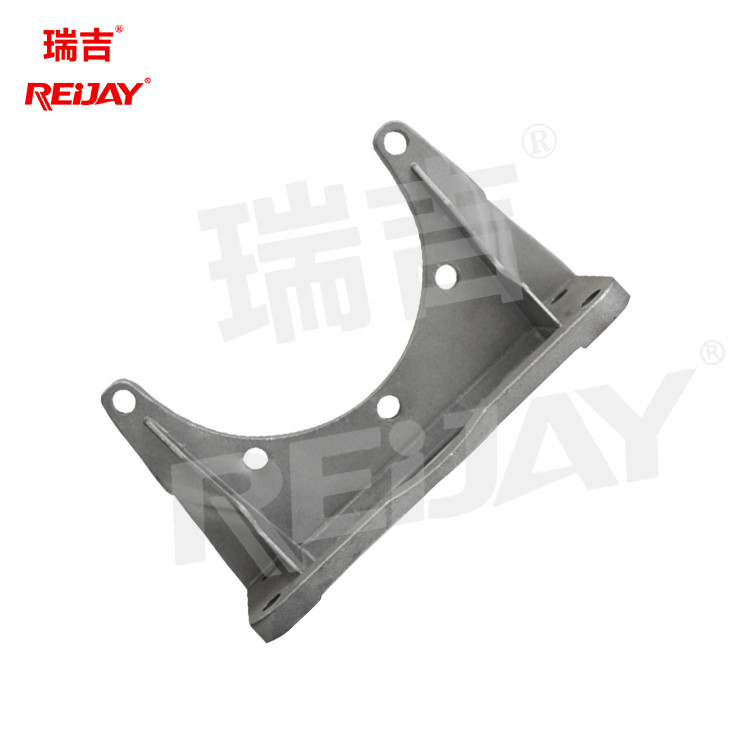

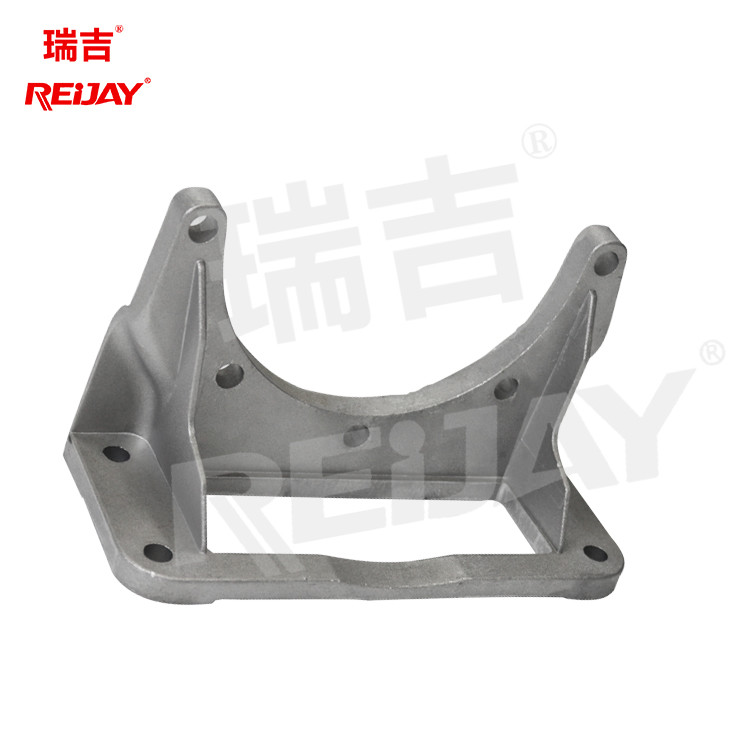

Force Resistance Damping Element Hydraulic ALU Motor Shock Mount
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Motor And Pump | Material | Alu/GG |
|---|---|---|---|
| Feature | Reliable And Stable | Installation Method | Horizontal Installation And Vertical Installation |
| Applicable Working Conditions | Road Machinery | Selection Method | 3D Modeling Software |
| Advantage | Under Force Impact Resistance | Transportation | Acc.To You |
| Highlight | Force Resistance Damping Element,Hydraulic Damping Element,ALU Motor Shock Mount |
||
Product Description
Reliable and stable under force Impact resistance Damping Element shock mount for hydraulic motors
Damping Element shock absorber has good coordination, not only can make full use of space, but also can make all hydraulic accessories well coordinated, reliable and stable force, anti-shock and vibration and has the advantage of protecting the normal operation of the motor. Damping Element shock mounts have excellent quality assurance, which can fully guarantee the integrity of the hydraulic system.
Technical Specifications
| Type | B | B1 | B2 | B3 | B4 | L | L1 | L2 | L3 |
| PTFL 160 | 160 | 140 | 80 | 50 | 15 | 7 | |||
| PTFL 200 | 210 | 180 | 90 | 60 | 15 | 4 | |||
| PTFL 250 | 250 | 220 | 110 | 60 | 25 | 21 | |||
| PTFL 300 | 290 | 260 | 120 | 80 | 24 | 20 | |||
| PTFS 250 | 250 | 215 | 193 | 250 | 162 | 260 | 185 | 10 | |
| PTFS 300 | 300 | 265 | 243 | 300 | 207 | 270 | 225 | 10 | |
| PTFS 350 | 350 | 300 | 260 | 350 | 210 | 305 | 265 | 12 | |
| PTFS 400 | 400 | 350 | 320 | 400 | 260 | 350 | 300 | 12 | |
| PTFS 450 | 450 | 400 | 364 | 450 | 317 | 385 | 335 | 12 | |
| PTFS 550 | 550 | 500 | 454 | 550 | 401 | 465 | 415 | 12 | |
| PTFS 660 | 660 | 600 | 550 | 660 | 186 | 555 | 595 | 18 | |
| Type | L4 | L5 | L6 | - | H1 | H2 | H3 | H4 | 0 |
| PTFL 160 | 180 | 100 | 10 | 65 | |||||
| PTFL 200 | 122 | 112 | 12 | 82.5 | |||||
| PTFL 250 | 145 | 132 | 15 | 107.5 | |||||
| PTFL 300 | 172 | 160 | 20 | 132.5 | |||||
| PTFS 250 | 147.5 | 67.5 | 110 | 167 | 155 | 155 | 120 | 15 | 107.5 |
| PTFS 300 | 172 | 80 | 130 | 197 | 185 | 185 | 145 | 18 | 132.5 |
| PTFS 350 | 195 | 92 | 150 | 255 | 235 | 235 | 184 | 18 | 150 |
| PTFS 400 | 225 | 105 | 277 | 260 | 232 | 220 | 20 | 175 | |
| PTFS 450 | 250 | 113 | 312 | 295 | 272 | 238 | 20 | 200 | |
| PTFS 550 | 300 | 140 | 365 | 350 | 335 | 285 | 25 | 250 | |
| PTFS 660 | 360 | 165 | 400 | 380 | 360 | 308 | 30 | 300 | |
| Type | R1 | S | 5 | d1 | L | L8 | 2::3 | 2::3 | |
| PTFL 160 | 55 | 12 | 9 | 9 | 0.2 | 0.5 | |||
| PTFL 200 | 72.5 | 14 | 11 | 11 | 0.2 | 0.5 | |||
| PTFL 250 | 95 | 19 | 14 | 14 | 0.2 | 0.5 | |||
| PTFL 300 | 117 | 18 | 14 | 14 | 0.2 | 0.75 | |||
| PTFS 250 | 95.15 | 15 | 14 | 14 | 15 | 60 | 0.2 | 0.5 | |
| PTFS 300 | 117.25 | 18 | 14 | 14 | 20 | 75 | 0.2 | 0.75 | |
| PTFS 350 | 130 | 18 | 18 | 18 | 25 | 90 | 0.3 | 1.0 | |
| PTFS 400 | 151 | 20 | 18 | 18 | 100 | 0.3 | 1.0 | ||
| PTFS 450 | 176 | 22 | 18 | 18 | 110 | 0.4 | 1.0 | ||
| PTFS 550 | 226 | 25 | 18 | 18 | 140 | 0.4 | 1.0 | ||
| PTFS 660 | 276 | 30 | 22 | 22 | 165 | 0.4 | 1.0 |
