xProduct Details
| Pressure | High Pressure, Low Pressure, 25MPa,210bar, 200-250bar | Application | Metering, Maritime, Submersible, Hydraulic Jack, Putzmeister |
|---|---|---|---|
| Usage | Oil, Water, Air Pump, Hydraulic Piston Pump | Power | Hydraulic,Pneumatic,Electric,1.2KW |
| Fuel | Diesel,hydraulic Oil,Electric,NO,Gasoline | Structuremp,Diaphragm Pump,hydraulic Variable Displacement Vane Pump For Shoe Making Machi | Gear Pump, Piston Pump, Diaphragm Pump |
| Material | Steel,Aluminum Alloy,casting,nylon,HT300 Casting Body,Cast Iron | Product Name | Hydraulic Oil Gear Pump, Hydraulic Diaphragm Metering Pump, Vickers 45VQT Vane Pump, High Pressure Hydraulic Hand Pumps |
| Type | Hydraulic Motors, Single Gear Pumps, Hydraulic Gear Products,Hydraulic Pump, Hydraulic Power Units | Feature | High Efficiency, Long Life, High Quality |
| Speed | 600-2200rpm,1800r/min,rated 2000r/max-6000r/min-800r/min | Name | 35VQ Eaton Vickers Hydraulic Pumps, Machine To Drive Hydraulic Pumps, Pumping Unit Or Rexroth Hydraulic Pump For Tower Crane |
| Oil Capacity | 1600c.c,800 C.c.,2.2L,650c.c.,350cm3 | Rated Voltage | 12V,24V |
| Highlight | Sealing Hydraulic Tank Cleanout Covers,Pressure Resistant Hydraulic Pump Bellhousing,Tank Lightweight Hydraulic Pump Bellhousing |
||
Product Description

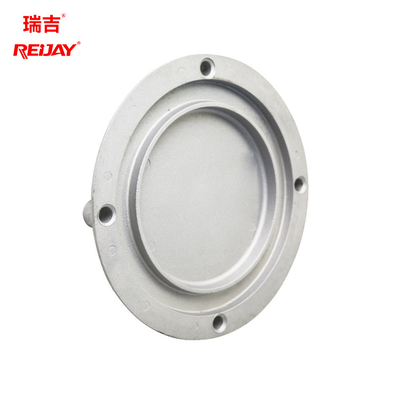

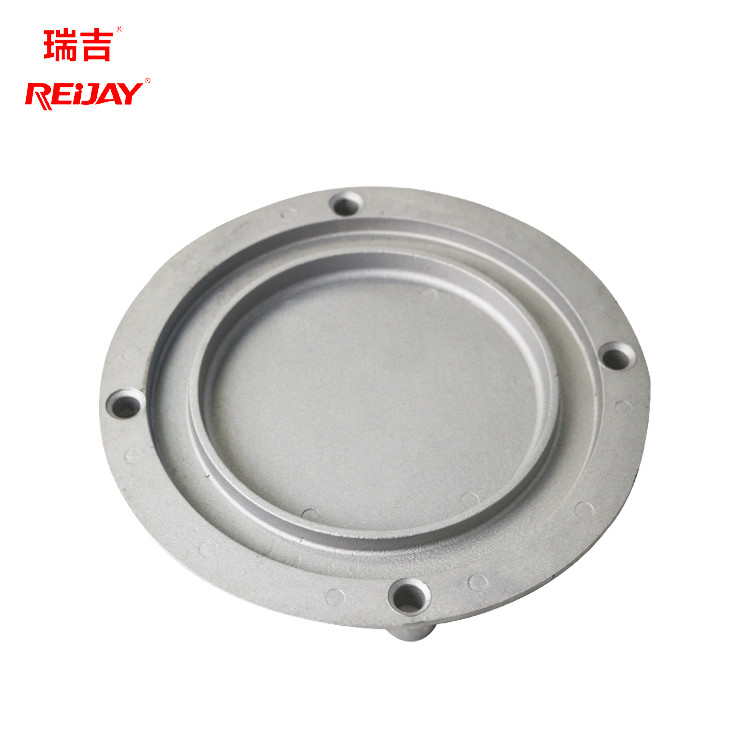

Rugged and Pressure Resistant Hydraulic Tank Cleanout Covers for Hydraulic Tanks
The fuel tank is a device used to hold oil. After the fuel tank is used for a long time, impurities are likely to accumulate inside the fuel tank. If it is difficult to clean the interior of the fuel tank only by relying on the inlet of the fuel tank, a cleaning port is usually opened outside the fuel tank. , and then use the cover to cover the fuel tank. Usually, the cleaning port of the fuel tank is sealed, and then open the cover for cleaning when it needs to be cleaned. The cover that covers the top of the fuel tank is the Hydraulic Tank Cleanout Covers.
Hydraulic Tank Cleanout Covers include a cover body, a sealing ring arranged behind the cover body, and the cleaning cover sealed and fixed by the pre-tightening force of the sealing ring.
Technical Specifications
| Steel Lid | Dimensions [mm] | Weight [kg] | ||
| L1 | L2 | D1 | ||
| SD6.5 | 1.4 | |||
| SD6.5/140 | 20 | 40 | 97 | 1 |
| SD6.5/160 | 10 | 30 | 112 | 0.9 |
| Steel Lid | Dimensions [mm] | Weight [kg] | ||
| L1 | L2 | D1 | ||
| SD12 | 2.5 | |||
| SD12/140 | 25 | 60 | 97 | 2.1 |
| SD12/160 | 25 | 60 | 112 | 2 |
| SD12/200 | 5 | 40 | 147 | 1.8 |
| Steel Lid | Dimensions [mm] | Weight [kg] | ||
| L1 | L2 | D1 | ||
| SD13 | 2.5 | |||
| SD13/140 | 25 | 60 | 97 | 2.1 |
| SD13/160 | 25 | 60 | 112 | 2 |
| SD13/200 | 5 | 40 | 147 | 1.8 |
| Steel Lid | Dimensions [mm] | Weight [kg] | ||
| L1 | L2 | D1 | ||
| SD20 | 3.6 | |||
| SD20/160 | 45 | 85 | 112 | 3.1 |
| SD20/200 | 25 | 65 | 147 | 3 |
| SD20/250 | 40 | 192 | 2.2 | |
| Steel lid | Dimensions [mm] | Weight [kg] | ||
| L1 | L2 | D1 | ||
| SD30 | 6.4 | |||
| SD30/200 | 90 | 140 | 147 | 5.7 |
| SD30/250 | 65 | 115 | 192 | 4.9 |
| SD30/300 | 90 | 236 | 4.8 | |
| Steel lid | Dimensions [mm] | Weight [kg] | ||
| L1 | L2 | D1 | ||
| SD44 | 8.5 | |||
| SD44/200 | 90 | 140 | 147 | 7.8 |
| SD44/250 | 65 | 115 | 192 | 7 |
| SD44/300 | 0 | 90 | 236 | 6.5 |
| Steel lid | Dimensions [mm] | Weight [kg] | ||
| L1 | L2 | D1 | ||
| SD70 | 10.5 | |||
| SD70/250 | 80 | 150 | 192 | 9 |
| SD70/300 | 55 | 125 | 236 | 8 |
