Shock Absorption Rexnord Replacement Flexible Disc Coupling For Compressors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel | Feature | No Wear |
|---|---|---|---|
| Application | Power Generation Equipment | Advantage | Shock Absorption No Noise |
| Nominal Torque | 240-110000N.m | Selection | Technicians Help You Choose |
| Warranty | 2 Years | After-sales Service | Support |
| Name | Disc Coupling | Main Stucture | Disc |
| Highlight | Compressors Stainless Steel Flexible Disc Coupling,Shock Absorption Replacement Flexible Disc Coupling,Double Flexible Disk Coupling |
||
Product Description

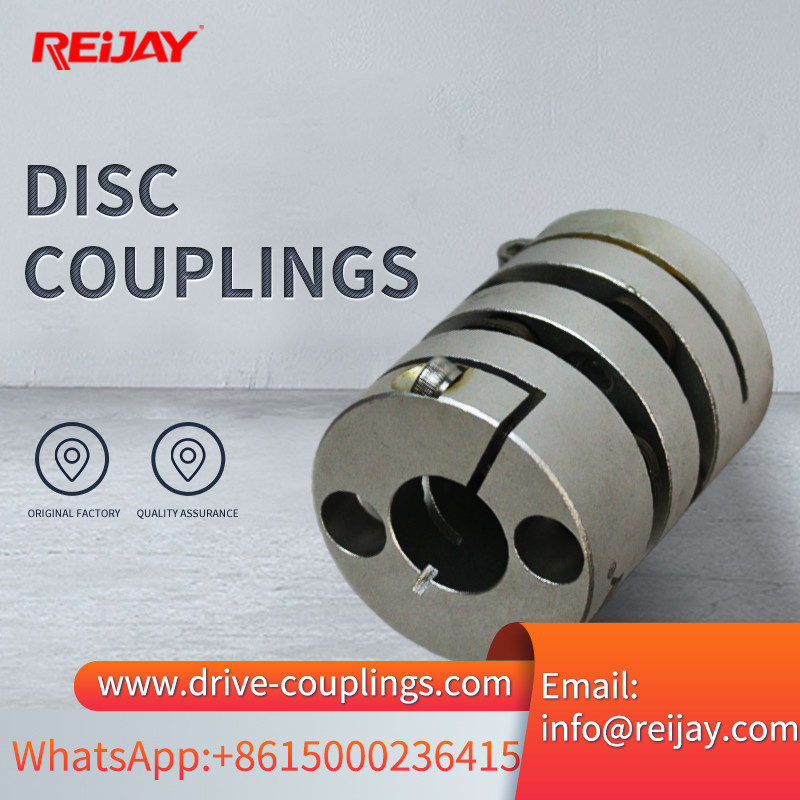

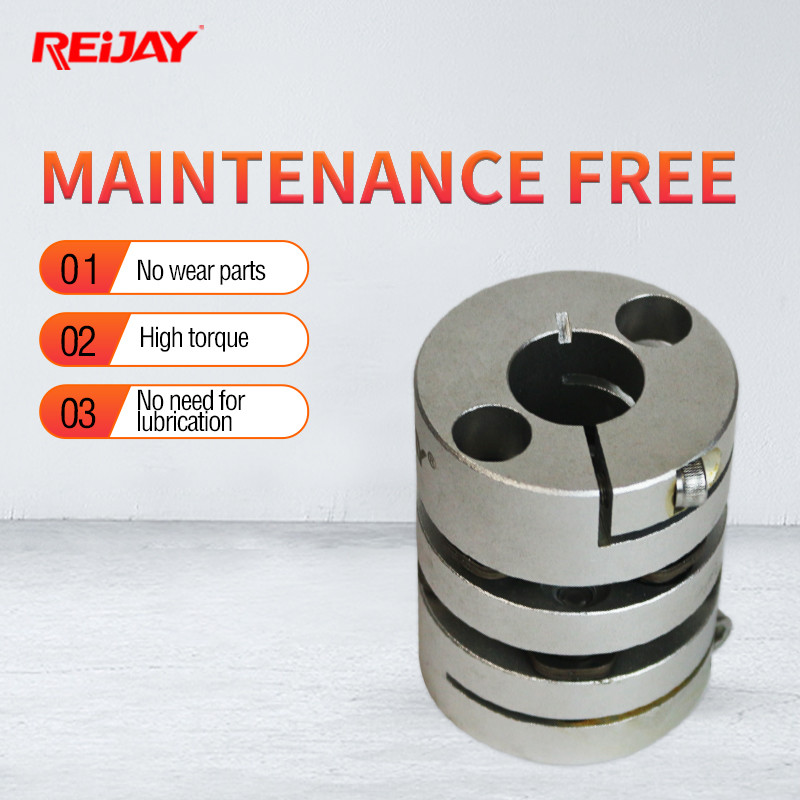

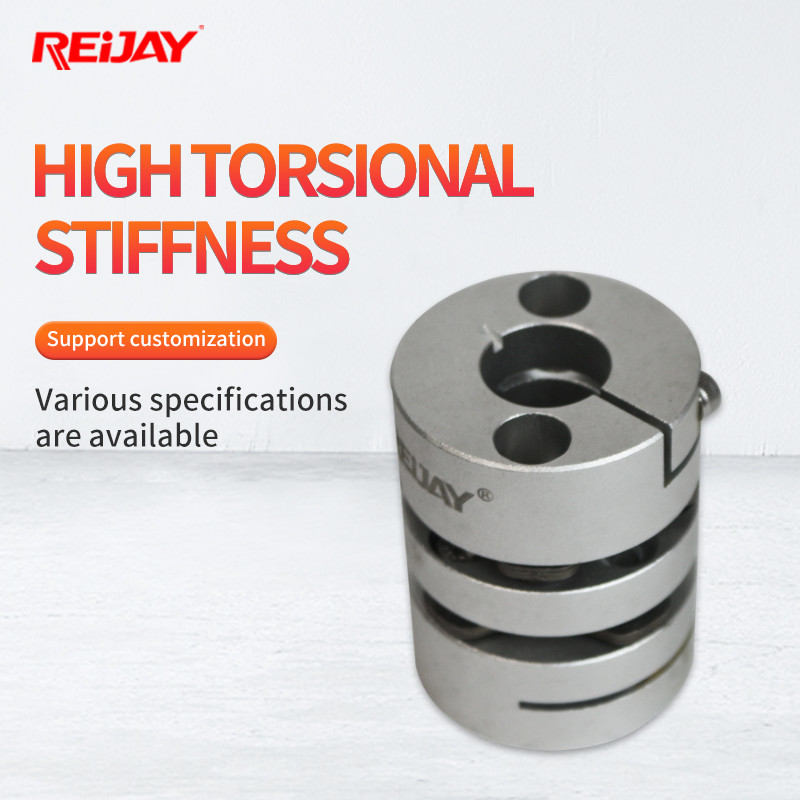

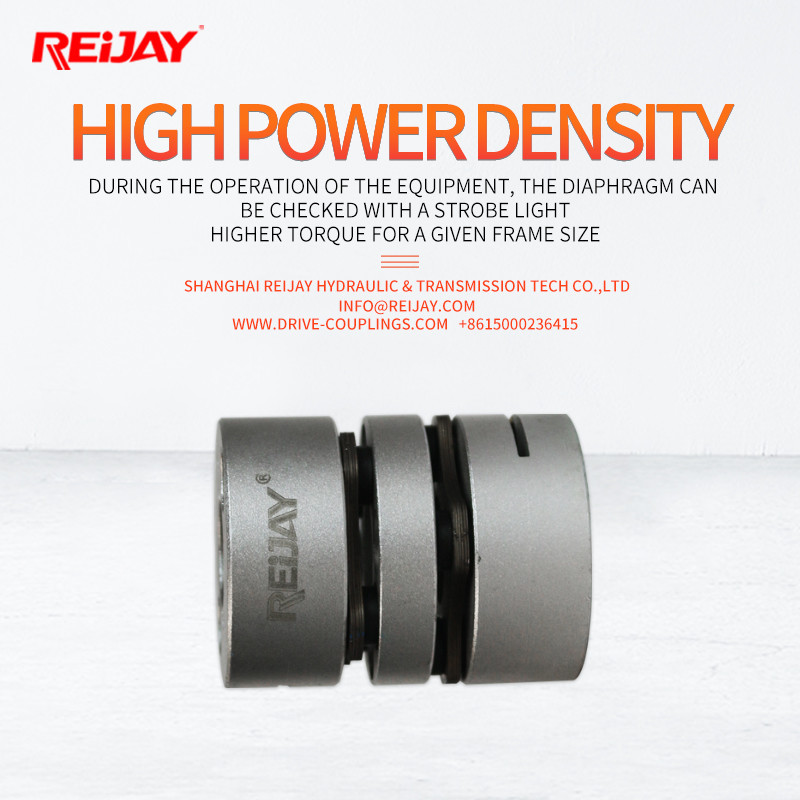

Shock Absorption No Noise No Wear Rexnord Replacement Flexible Disc Coupling For Compressors
The double Rexnord Replacement Flexible Disc Coupling is composed of several groups of diaphragms (stainless steel sheets) which are connected with the two half couplings by bolts in a staggered manner. Each group of diaphragms is formed by overlapping several pieces. The diaphragms are divided into connecting rod type and whole pieces of different shapes.
The double Rexnord Replacement Flexible Disc Coupling compensates the relative displacement of the connected two shafts by the elastic deformation of the diaphragm. It is a high-performance metal elastic element flexible coupling. It has no lubrication, compact structure, high strength, long service life, no rotating clearance, and is not affected by temperature and oil pollution. It has the characristics of acid, alkali and corrosion resistance. It is suitable for shafting transmission under high temperature, high speed and corrosive medium woterking conditions.
Technical Specifications:
| Size | Nominal Torque TKN (Nm) |
Peak Torque TKNmax (Nm) |
Max. Speed | Weight4) (kg) |
Massen- Moment of Intertia5) (kgm2) |
Permissible Axial Misalign-ment6) ±Δkazul (mm) |
Permissible Angular Misalign-ment7,8) ±Δkwzul °(Degress) |
d1/d2 Max. Bore3) (mm) |
L (mm) |
Z (mm) |
P (mm) |
L1/L2 (mm) |
S9) Standard (mm) |
A (mm) |
B (mm) |
||
| Without blancing1) (1/min) |
With blancing2) (1/min) |
||||||||||||||||
| 278-8 | 20000 | 40000 | 2800 | 7000 | 59 | 0.573 | 3.7 | 0.5° | 124 | 469 | 177 | 21.2 | 125 | 219 | 278 | 174 | |
| 302-8 | 30000 | 60000 | 2560 | 6400 | 77 | 0.878 | 4.0 | 0.5° | 135 | 505 | 186 | 24.4 | 135 | 235 | 302 | 190 | |
| 325-8 | 37000 | 74000 | 2400 | 6000 | 92 | 1.199 | 4.3 | 0.5° | 145 | 544 | 202 | 26.0 | 145 | 254 | 325 | 205 | |
| 345-8 | 46000 | 92000 | 2200 | 5500 | 112 | 1.660 | 4.6 | 0.5° | 155 | 580 | 214 | 28.2 | 155 | 270 | 345 | 217 | |
| 380-8 | 63000 | 126000 | 2040 | 5100 | 150 | 2.715 | 5.0 | 0.5° | 170 | 637 | 233 | 32.0 | 170 | 297 | 380 | 238 | |
| 410-8 | 86000 | 172000 | 1880 | 4700 | 195 | 4.110 | 5.4 | 0.5° | 180 | 690 | 254 | 33.2 | 185 | 321 | 410 | 255 | |
| 440-8 | 110000 | 220000 | 1740 | 4350 | 230 | 5.540 | 5.8 | 0.5° | 195 | 725 | 262 | 36.4 | 195 | 335 | 440 | ||
