RJF Hydraulic Pump To Engine Coupler Flexible Flywheel Drive Couplings
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Reduce The Vibration In The Transmission | Application | Various Occasions |
|---|---|---|---|
| Applicable Working Conditions | Working Conditions That Will Produce Large Vibrations | Advantage | Good Seismic Performance |
| Coupling Type | Flexible Coupling | Bore Type | According To Your Need |
| Rated Torque | 350-5000N.m | Service Life | 2 Years |
| Product Name | Torsion Shaft Coupling | Other | Welcom To Contact Us |
| High Light | Flexible hydraulic pump to engine coupler,RJF Hydraulic Pump To Engine Coupler,flywheel drive couplings |
||
Product Description
High elasticity and torsional vibration resistance Torsion Shaft Coupling for flywheels of internal combustion engines

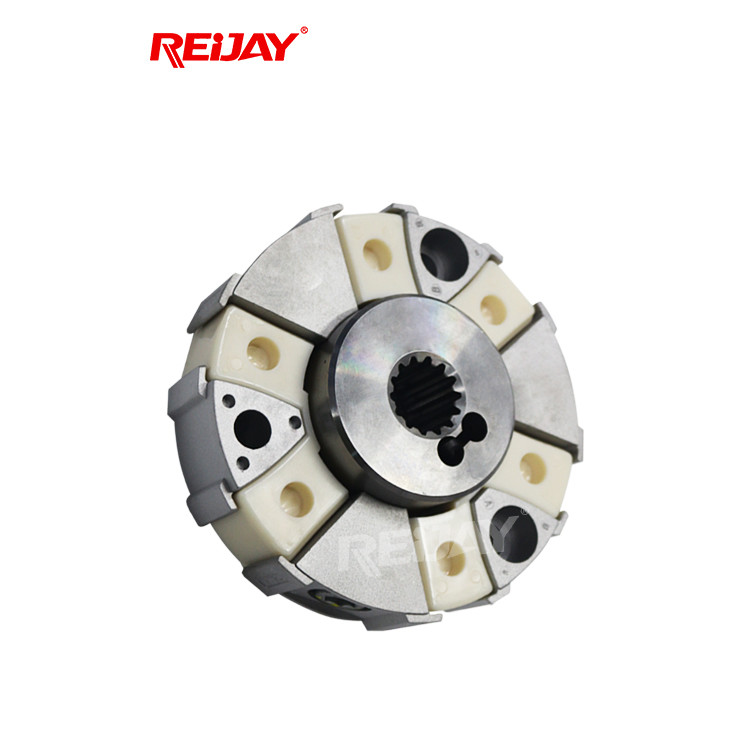

Reijay' Torsion Shaft Coupling is used to connect the internal combustion engine to the hydraulic pump. It consists of three parts: iron core, elastomer and movable aluminum block.
Torsion Shaft Coupling is simple in structure, easy to install and maintenance free. The highly elastic elements are made of synthetic rubber and absorb shocks and shocks. In addition to oil resistance and high temperature resistance, it also has the characteristics of insulation and noiseless operation. In the process of transmitting torque, it does not generate loads that are not conducive to the machine.
Technical Specifications
| Size | Dimension (mm) | ||||||||||||||
| OD (min) | LTB(+2/-1) | ET | BC/distributing angular | L1 | BE(+3/-2) | HD | R | ER | C/E | F/dis(ributing angular | S | M1 | M2 | ||
| BFK25K(L=52) | 175 | 45 | 46 | 140/3@120° | 52 | 7 | 85 | 20 | 40 | 5/17.5 | 104/3@120° | 27 | 3-M14X40 | 2-M16X20 | |
| BFK30K(L=60) | 205 | 56 | 56 | 165/3@120° | 60 | 7 | 100 | 25 | 46 | 5/5.0 | 125/3@120° | 33 | 3-M16X50 | 2-M16X20 | |
| BFK30K(L=78) | 205 | 71 | 56 | 165/3@120° | 78 | 7 | 100 | 25 | 46 | 5/5.0 | 125/3@120° | 33 | 3-M16X50 | 2-M16X20 | |
| BFK50K(L=60) | 205 | 56 | 56 | 165/4@900 | 60 | 7 | 100 | 25 | 46 | 5/5.0 | 125/4@90° | 33 | 4-M16X50 | 2-M16X20 | |
| BFK50K(L=78) | 205 | 71 | 56 | 165/4@90° | 78 | 7 | 100 | 25 | 46 | 5/5.0 | 125/4@90° | 33 | 4-M16X50 | 2-M16X20 | |
| BFK110K(L=60) | 225 | 56 | 59 | 180/4@90° | 60 | 7 | 100 | 25 | 46 | 5/10.0 | 145/4@90° | 33 | 4-M18X60 | 2-M16X20 | |
| BFK110K(L=78) | 225 | 71 | 59 | 180/4@90° | 78 | 7 | 100 | 25 | 46 | 5/10.0 | 145/4@90° | 33 | 4-M18X60 | 2-M16X20 | |
| BFK160K(L=73) | 270 | 71 | 59 | 215/4@90° | 73 | 8.5 | 125 | 25 | 48 | 8/16.0 | 165/4@90° | 35 | 4-M20X50 | 2-M16X20 | |
| BFK240K(L=76) | 330 | 73 | 65 | 260/4@90° | 76 | 8.5 | 160 | 28 | 55 | 8/32.0 | 200/4@90e | 38 | 4-M20X65 | 2-M16X20 | |
| *BFK250K(L=108) | 340 | 100 | 85 | 280/4@90° | 108 | 8.5 | 160 | 55 | 77 | / | 195/4@ 90° | 35 | / | / | |
| *BFK400K(L=135) | 370 | 125 | 105 | 300/4@90° | 135 | 8.5 | 170 | 67 | 95 | / | 200/4@90° | 35 | / | / | |
| BFK450K(l=90) | 410 | 81 | 90 | 350/6@60° | 90 | 10 | 250 | 23 | 45 | 8/16.0 | 296/4@90° | 35 | 2-M20X25 | 2-M20X25 | |
| BFK550K(l=90) | 450 | 81 | 90 | 360/6@60° | 90 | 10 | 250 | 26 | 52 | 8/16.0 | 300/6@60° | 39 | 2-M20X30 | 2-M20X30 | |
