Stainless Steel And Precise Torque Transmission Rubber Coupling For Compressor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001/TS16949 | Material | Aluminum And Other Rubbers |
|---|---|---|---|
| OEM | YES | Product Name | Torque Transmission Rubber Coupling |
| Keywords | Excavator Coupling | Application | For Compressor |
| Model | Various Specifications | Customized Support | OEM, ODM, OBM |
| Packing | Box+Carton+Pallet | Application Industries | Manufacturing Plant, Machinery Repair Shops |
| Warranty | 2 Years | Leadtime | 3 Days |
| High Light | Excavator hydraulic pump drive couplings,OEM hydraulic pump drive couplings,110H Coupling |
||
Product Description

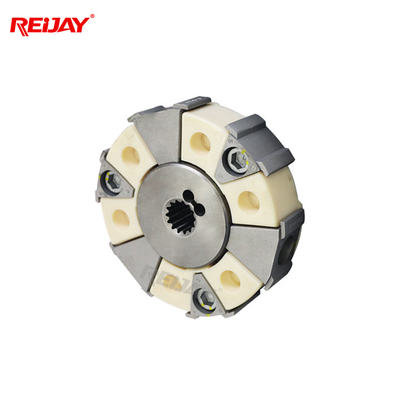

Stainless Steel And Precise Torque Transmission Rubber Coupling For Compressor
Rubber coupling is a kind of torsional flexible coupling, which is not only applicable to the medium and low power gearbox of the group, but also applicable to other diesel power transmission devices. The main components are ring gear and toothed elastic components.
Technical Specifications
| Size | Dimension (mm) | |||||||||||||
| OD (min) | LTB(+2/-1) | ET | BC/distributing angular | L1 | BE(+3/-2) | HD | R | ER | C/E | F/dis(ributing angular | S | M1 | M2 | |
| BFK25K(L=52) | 175 | 45 | 46 | 140/3@120° | 52 | 7 | 85 | 20 | 40 | 5/17.5 | 104/3@120° | 27 | 3-M14X40 | 2-M16X20 |
| BFK30K(L=60) | 205 | 56 | 56 | 165/3@120° | 60 | 7 | 100 | 25 | 46 | 5/5.0 | 125/3@120° | 33 | 3-M16X50 | 2-M16X20 |
| BFK30K(L=78) | 205 | 71 | 56 | 165/3@120° | 78 | 7 | 100 | 25 | 46 | 5/5.0 | 125/3@120° | 33 | 3-M16X50 | 2-M16X20 |
| BFK50K(L=60) | 205 | 56 | 56 | 165/4@900 | 60 | 7 | 100 | 25 | 46 | 5/5.0 | 125/4@90° | 33 | 4-M16X50 | 2-M16X20 |
| BFK50K(L=78) | 205 | 71 | 56 | 165/4@90° | 78 | 7 | 100 | 25 | 46 | 5/5.0 | 125/4@90° | 33 | 4-M16X50 | 2-M16X20 |
| BFK110K(L=60) | 225 | 56 | 59 | 180/4@90° | 60 | 7 | 100 | 25 | 46 | 5/10.0 | 145/4@90° | 33 | 4-M18X60 | 2-M16X20 |
| BFK110K(L=78) | 225 | 71 | 59 | 180/4@90° | 78 | 7 | 100 | 25 | 46 | 5/10.0 | 145/4@90° | 33 | 4-M18X60 | 2-M16X20 |
| BFK160K(L=73) | 270 | 71 | 59 | 215/4@90° | 73 | 8.5 | 125 | 25 | 48 | 8/16.0 | 165/4@90° | 35 | 4-M20X50 | 2-M16X20 |
| BFK240K(L=76) | 330 | 73 | 65 | 260/4@90° | 76 | 8.5 | 160 | 28 | 55 | 8/32.0 | 200/4@90e | 38 | 4-M20X65 | 2-M16X20 |
| *BFK250K(L=108) | 340 | 100 | 85 | 280/4@90° | 108 | 8.5 | 160 | 55 | 77 | / | 195/4@ 90° | 35 | / | / |
| *BFK400K(L=135) | 370 | 125 | 105 | 300/4@90° | 135 | 8.5 | 170 | 67 | 95 | / | 200/4@90° | 35 | / | / |
| BFK450K(l=90) | 410 | 81 | 90 | 350/6@60° | 90 | 10 | 250 | 23 | 45 | 8/16.0 | 296/4@90° | 35 | 2-M20X25 | 2-M20X25 |
| BFK550K(l=90) | 450 | 81 | 90 | 360/6@60° | 90 | 10 | 250 | 26 | 52 | 8/16.0 | 300/6@60° | 39 | 2-M20X30 | 2-M20X30 |
| Size | Material | Rated torque Tkn | Max. torque Tmax | Max.rotaiy speed | Permissible alternate torque Tkw | Dynamic torsional stiffness NmAad | Deviation rectifying | Working temperature range | |||
| Nm | Nm | rpm | Nm | Axial | Radial | Angular | |||||
| BFK25K | YHTREL | 350 | 875 | 5000 | 125 | 120000 | ±2 | 0.3 | 0.5 | -40°C-+120°C | |
| BFK30K | YHTREL | 500 | 1400 | 4000 | 200 | 88000 | ±3 | 0.5 | 1 | -40J+120Q | |
| BFK50K | YHTREL | 800 | 2000 | 4000 | 300 | 262000 | ±3 | 0.5 | 0.5 | -40°C-+120°C | |
| BFK110K | YHTREL | 1200 | 2400 | 4000 | 700 | 400000 | ±3 | 0.5 | 1 | -40°C-+120°C | |
| BFK160K | YHTREL | 2000 | 4000 | 3600 | 1000 | 730000 | ±3 | 0.5 | 0.5 | -40°C-+120°C | |
| BFK240K | YHTREL | 2500 | 5000 | 3000 | 1200 | 510000 | ±3 | 0.5 | 0.8 | -40°C-+120t! | |
| *BFK250K | HTR | 3000 | 8750 | 3000 | 1250 | / | ±5 | 0.5 | 2 | -40°C-+120°C | |
| *BFK400K | HTR | 5000 | 12500 | 2500 | 2000 | / | ±3 | 0.5 | 2 | -40°C-+120°C | |
| BFK450K | YHTREL | 4000 | 8000 | 2500 | 1500 | 560000 | ±3 | 0.5 | 1 | -40°C-+120°C | |
| BFK550K | YHTREL | 5000 | 10000 | 2500 | 1750 | 580000 | ±3 | 0.5 | 1 | -40°C-+120X? | |
