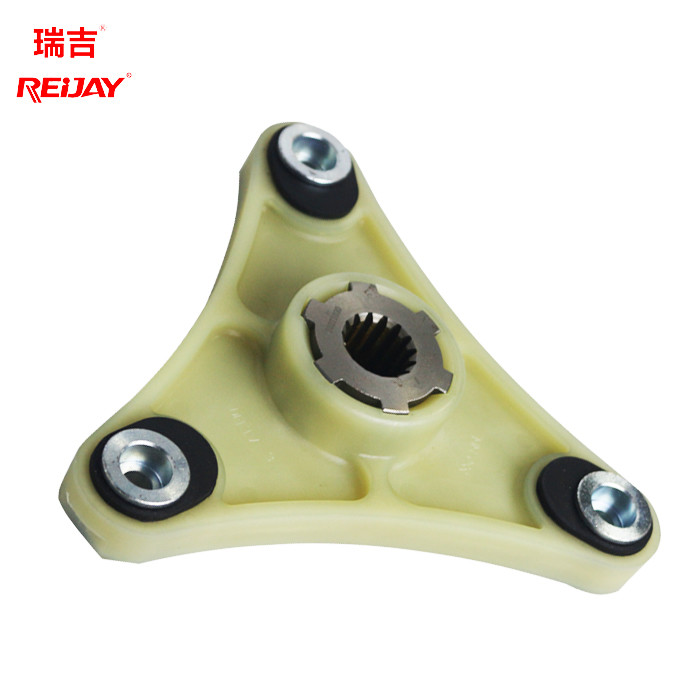

SAE Flywheel Diesel Engine Coupling For Flange Rubber Steel Bushing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001/ITS16949 | Key Words | Internal Combustion Engine Coupling |
|---|---|---|---|
| Model | FL LTA | Application | Construction Machinery Engine |
| Warranty | 2 Years | Product Name | Sae Flywheel Coupling |
| Installation | Video Guidance | Material | Rubber And Steel |
| Feature | Maintenance-free | ||
| High Light | Flywheel Diesel Engine Coupling,SAE Diesel Engine Coupling,FL flange rubber coupling |
||
Product Description
Wear-free Sae Flywheel Coupling for rubber flange and steel bushing connections
Sae Flywheel Coupling is used for flexible transmission and has strong correction ability in axial, radial and angular directions. Since the structure of the hyperboloid tooth can effectively avoid the phenomenon of local stress concentration caused by angular and radial deviation, REIJAY Sae Flywheel Coupling hardly produces wear.
Structural features and advantages
1. Sae Flywheel Coupling is a double-section structure, the stress caused by the angular and radial installation deviation can be ignored, and the angular velocity will not fluctuate periodically.
2. Suitable for horizontal and vertical installation without any special assembly tools.
3. Couplings are used to connect the internal combustion engine flywheel and hydraulic pump.
4. It is suitable for use in hydraulic transmission systems such as construction machinery, collection, and PJ machinery.
5. High torsional rigidity and no resonance in operation.
6. Nylon flange and steel bushing connection, maintenance-free.
7. Nylon flanges have high mechanical strength and thermal stability (+130°C).
8. The installation length is extremely short.
9. Axial insert assembly, easy to install.
10. Special connection lengths are available.
Technical Specification
| Type | Rated Torque(Nm) | Max Torque(Nm) | A(mm) | B(mm) | C(mm) | Radial deviation correction(mm) |
| FL LTA 135 | 120 | 300 | 135 | 100 | 3x10 | 0.2 |
| FL LTA 3-165 | 180 | 450 | 220 | 165 | 3x12 | 0.2 |
| FL LTA 3-185 | 180 | 450 | 220 | 185 | 3x10 | 0.2 |
| FL LTAW"SD | 356 | 890 | 314.3 | 295.3 | 8x10 | 0.2 |
| FL LTA 10" HD | 693 | 1732 | 314.3 | 295.3 | 8x10 | 0.2 |
