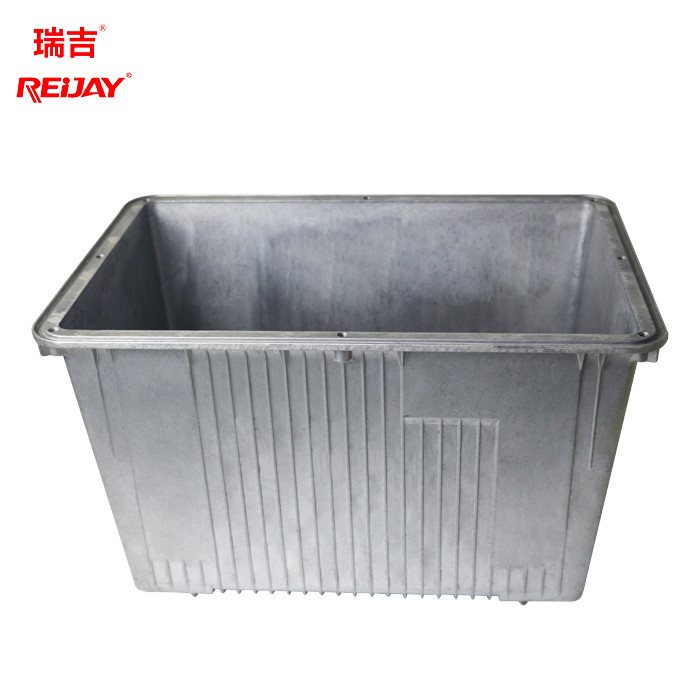

SB Hydraulic Fuel Tank NG30 Stainless Steel Hydraulic Reservoirs
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Good Heat Dissipation | Application | Hydraulic System |
---|---|---|---|
Working Temperature | +110℃ | Applicable Medium | Various Hydraulic Oils |
Advantage | Pressure-free Operation | Manufacturing Method | 2000-4000 Ton Press High-pressure Casting Aluminum Forming |
Service Life | Two Years | Specification | Various Sizes |
Product Name | Hydraulic Oil Tanks | Custom | Support |
High Light | SB Hydraulic Fuel Tank,NG30 Hydraulic Fuel Tank,Stainless Steel Hydraulic Reservoirs |
Various volume specifications and integral Hydraulic Oil Tanks for hydraulic systems and hydraulic stations
The hydraulic oil tank is used to store the oil required to ensure the operation of the hydraulic system. The fuel tanks in the hydraulic system include integral fuel tanks, separate fuel tanks; open fuel tanks, closed fuel tanks, etc.
The main functions of the hydraulic oil tank in the hydraulic system are:
1. Store the oil needed for system circulation.
2. Dissipate the heat generated when the system works
3. Release the gas mixed in the oil.
4. Provide locations for the installation of components in the system.
Technical Specifications of Hydraulic Tank:
SB | |||||
Bores for oil level gauge | |||||
without | |||||
withSB | |||||
SF1 | |||||
Bores for oillevelgauge | |||||
without | |||||
SF1 | Oil level gauge 76 mm | ||||
SF2 | Oillevel gauge 127 mm | ||||
SF3 | Oil level gauge254mm | ||||
KL13 | Oil eye G1/4" | ||||
Al 8 | Oil eye G3/4" | ||||
KL33 | Oil eye G1" | ||||
SD | |||||
Material reservoir lid | |||||
Steel | SD | ||||
NG30 | |||||
Nominal size | 3.5 | ||||
6.5 | |||||
8 | |||||
12 | |||||
13 | |||||
20 | |||||
30 | |||||
44 | |||||
70 | |||||
130 | |||||
200 | |||||
Bores for bellhousing | |||||
without | |||||
140 | NG6.5 | ||||
NG 12/13 | |||||
160 | NG6.5 | ||||
NG 12/13 | |||||
NG20 | |||||
200 | NG12/13 | ||||
NG20 | |||||
NG30 | |||||
NG44 | |||||
250 | NG20 | ||||
NG30 | |||||
NG44 | |||||
NG70 | |||||
300 | NG30 | ||||
NG44 | |||||
NG70 | |||||
Size of reservoir | Effective volume | Specific cooling capacity | Cooling capacity* | Surface with reservoir lid | Weight |
V[l] | VN[I] | P/Δt [W/K] | P[kW]Δt = 40K | [m2] | [kg] |
NG3.5 | 3 | 4 | 0.16 | 0.15 | 1.4 |
NG6.5 | 6 | 9 | 0.36 | 0.25 | 1.7 |
NG8 | 6.5 | 11 | 0.44 | 0.3 | 2.5 |
NG12 | 10 | 15 | 0.6 | 0.35 | 2.3 |
NG13 | 11 | 15 | 0.6 | 0.4 | 2.8 |
NG20 | 17 | 18 | 0.72 | 0.5 | 4.3 |
NG30 | 27 | 23 | 0.92 | 0.75 | 5 |
NG44 | 40 | 26 | 1.04 | 1 | 7 |
NG70 | 63 | 29 | 1.16 | 1.3 | 10 |
NG130 | 123 | 52 | 2.10 | 1.93 | 25 |
