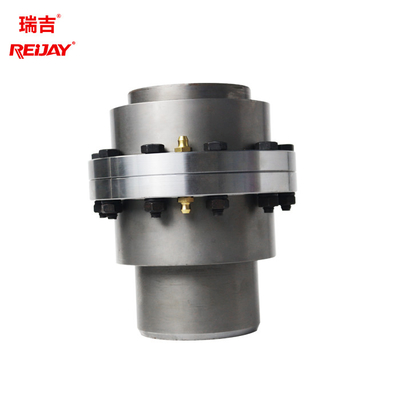

Gear Flexible Floating Shaft Coupling High Torque Transfer 6000 RPM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Flexible Gear Coupling | Feature | High Load Capacity |
|---|---|---|---|
| Application | Heavy Duty Conditions | Advantage | Easy Maintenance And Long Service Life |
| Nominal Torque | 850-206400N.m | Working Environment | Various Occasions |
| Customize | Support | Warranty | 2 Years |
| After-sales Service | Support | Other | Professional Technicians Support Selection |
| High Light | Gear Floating Shaft Coupling,6000 RPM Floating Shaft Coupling,Flexible high torque coupling |
||
Product Description
Flexible Gear Coupling with high torque transfer and high load capacity for low speed and heavy duty conditions
Flexible Gear Coupling is composed of inner gear ring with the same number of teeth and flange half coupling with outer teeth. The external teeth are divided into two types: straight teeth and drum teeth. The so-called drum teeth are made of spherical surfaces. The center of the spherical surface is on the axis of the gear. Allowing larger angular displacement (relative to the straight-tooth coupling), it can improve the contact conditions of the teeth, improve the ability to transmit torque, and prolong the service life.
Technical Specifications
| Size | Rated Torque Nm | max Rotary Speed | Bore | weight F(FFR) (kg) | OAL f(FFR) (mm) | LTB (mm) | LTB1 (mm) | BSEF (FFR) | ADF (FFR) mm | FD (mm) | D (mm) | HD (mm) | parallel misalignment (mm) | max. angular misalignment | ||||
| Non-dynamic balance RPM | Dynamic balance RPM | ID 1 | ID 2 | |||||||||||||||
| max. Bore | finish ed (mm) |
max bore | finish ed (mm) |
|||||||||||||||
| 1 | 850 | 6000 | 9000 | 42 | 11 | 56 | Solid | 4⑷ | 89(87) | 43 | 40 | 3(4) | 52(56) | 116 | 78 | 59 | 1.4 | 1.5° each bite |
| 1.5 | 2140 | 5000 | 8250 | 56 | 18 | 76 | 9(8) | 102(100) | 49 | 47 | 3(4) | 59(63) | 152 | 101 | 76 | 1.5 | ||
| 2 | 3560 | 5000 | 7500 | 73 | 24 | 95 | 15(15) | 127(124) | 62 | 58 | 3(4) | 75(79) | 178 | 123 | 102 | 2.2 | ||
| 2.5 | 6410 | 4400 | 6600 | 85 | 37 | 114 | 25(25) | 159(156) | 77 | 74 | 5(5) | 88(93) | 213 | 148 | 118 | 2.7 | ||
| 3 | 10700 | 4000 | 6000 | 107 | 37 | 134 | 36(39) | 187(183) | 91 | 87 | 5(5) | 101(105) | 240 | 174 | 143 | 2.9 | ||
| 3.5 | 17100 | 3500 | 5250 | 125 | 46 | 150 | 59(61) | 219(213) | 106 | 101 | 6(6) | 116(121) | 279 | 201 | 165 | 3.3 | ||
| 4 | 24900 | 3000 | 4500 | 145 | 62 | 176 | 86(89) | 248(241) | 121 | 113 | 6(8) | 127(135) | 318 | 235 | 191 | 3.8 | ||
| 4.5 | 34200 | 2700 | 4050 | 165 | 76 | 202 | 114(112) | 278(272) | 135 | 128 | 8(9) | 140(152) | 346 | 264 | 216 | 4.4 | ||
| 5 | 41900 | 2500 | 3750 | 180 | 76 | 230 | 101 | 173(179) | 314(306) | 153 | 145 | 8(9) | 161(170) | 389 | 294 | 241 | 5.1 | |
| 5.5 | 64800 | 2200 | 3300 | 200 | 101 | 260 | 114 | 236(239) | 359(241) | 176 | 156 | 8(9) | 179(186) | 425 | 323 | 267 | 5.6 | |
| 6 | 84700 | 2100 | 3150 | 225 | 101 | 285 | 127 | 295(312) | 384(387) | 188 | 188 | 8(10) | 212(223) | 457 | 356 | 292 | 3 | |
| 7 | 113900 | 2000 | 3000 | 255 | 127 | 320 | 139 | 431(462) | 451(454) | 221 | 221 | 10(13) | 249(262) | 527 | 400 | 330 | 3.4 | |
| 8 | 149500 | 1900 | 2850 | 310 | 152 | 375 | 165 | 708(730) | 568(572) | 279 | 279 | 10(13) | 313(325) | 591 | 466 | 394 | 4.1 | |
| 9 | 206400 | 1800 | 2700 | 340 | 117 | 415 | 190 | 915(966) | 597(598) | 292 | 292 | 13(14) | 330(344) | 660 | 518 | 432 | 4.2 | |
