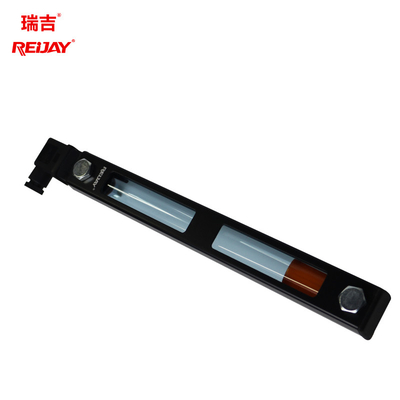

254mm DIN M12 Mechanical Liquid Level Indicator For Tanks

  • 254mm DIN M12 Mechanical Liquid Level Indicator For Tanks
  • 254mm DIN M12 Mechanical Liquid Level Indicator For Tanks
  • 254mm DIN M12 Mechanical Liquid Level Indicator For Tanks
  • 254mm DIN M12 Mechanical Liquid Level Indicator For Tanks
Place of Origin China
Brand Name REIJAY
Certification ISO CE
Model Number SF
Minimum Order Quantity 1 set
Packaging Details Yes
Delivery Time 7 days
Payment Terms T/T, D/P, Western Union
Supply Ability 500 sets/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -20℃~+80℃ Applicable Medium DIN
Feature Having Good Sealing Performance Advantage Its Surface Anti
Specification Various Specifications Customize Support
Product Name Hydraulic Oil Level Gauge Oem Yes
Application Hygienic Liquid Storage Container Color Any Of Color
Highlight

DIN Mechanical Liquid Level

,

254mm Mechanical Liquid Level

,

M12 liquid level indicator for tanks
Leave a Message
Product Description

Hydraulic Oil Level Gauge to prevent internal leakage and prevent discoloration for hydraulic oil tanks





      Hydraulic Oil Level Gauge is used for visual or electronically controlled low level alarm to monitor the oil level in the tank. REIJAY's Hydraulic Oil Level Gauge has good sealing performance, which can prevent the internal leakage surface from being oil-proof, anti-aging and discoloring. If you need Hydraulic Oil Level Gauge in special length, you are welcome to contact REIJAY to order.



Hydraulic Oil Level Gauge Technical Specification



　- E1　　 - 1　　　　　
Type SF liquid level switch Tighten bolt Installed on the tank wallcenter distance
no liquid level switch 1=76
The default normally closed 0 type 2=127
No Liquid Level Switch 3=254
normally C type L=Speciallength can be customized
double switch W type
- Th　　　　　
- V　　 thermometer function　
Seal material　 No temperature function　
tacitly approve NBR rubber Default tube scale thermometer　
V FPM　　 Tube scale thermometer range: -10.C..+80°C　
Sf1 tube scale display range: +20°C.. +80°C　
- CV　　 External bime tal thermometer length 200mm　
Fastening Bolt　 External bimetal thermometer length 300mm　
Default M12　 Temperature switch temperature +60°C　
With check check Valve Temperature switch temperature+70°C　
FV anti-leak type　 Temperature switch temperature+80°C　
Temperature switch normally closed contact, when the oil temperature
Exceeds the Set Switch Temperature　
Contact Open, Temperature Alarm　　　
Type size(mm)
A B C D E 27 G
SF1 76 32 108 34 45 27 M12
SF2 127 76 159 34 45 27 M12
SF3 254 203 286 34 45 27 M12
