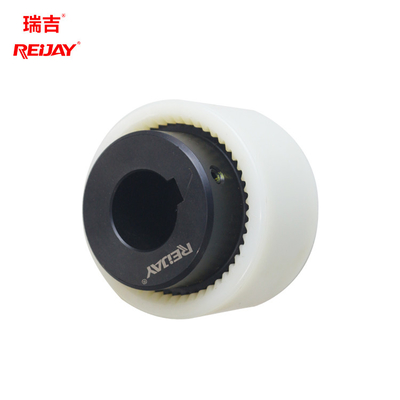

HT20-40 Cast Iron Pump Rubber Coupling Machinery Nylon Sleeve

  • HT20-40 Cast Iron Pump Rubber Coupling Machinery Nylon Sleeve
  • HT20-40 Cast Iron Pump Rubber Coupling Machinery Nylon Sleeve
  • HT20-40 Cast Iron Pump Rubber Coupling Machinery Nylon Sleeve
Place of Origin China
Brand Name REIJAY
Certification Provide
Model Number B24
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Yes
Delivery Time Negotiable
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nylon Sleeve Gear Coupling Working Environment Machinery Transmission
Use Time 2 Years Material Cast Iron
Advantage Low Transmission Efficiency Loss Application Various Occasions
Packaging Type Case After-sales Service Provided Yes
High Light

machinery Pump Rubber Coupling

,

Nylon Sleeve Pump Rubber Coupling

,

HT20-40 cast iron coupling
Leave a Message
Product Description

Maintenance-free and long-life cast iron Nylon Sleeve Gear Coupling for a variety of transmission applications



Nylon Sleeve Gear Coupling is widely used in various transmission occasions. This type of coupling is cast by professional process, cast iron HT20-40, cast steel ZG35Ⅱ, 45# steel, shaft hole and keyway are drawn and formed, nylon internal gear type. The coupling elastomer jacket can be synthesized with various hardnesses according to user requirements.



Technical data of Nylon Sleeve Gear Coupling:



Dimensions [mm] Extended hub length Weight Moment of inertia
A B L L1/L2 E H* C F g f L1/L2 [kg] J[lqm2]
40 25 50 23 4 15 6.5 37 M5 6 40 0.175 0.00003
48 30 54 25 4 17 7 37 M5 6 　 0.32 0.00047
52 36 56 26 4 17 7.5 41 M5 6 50 0.316 0.000093
66 44 84 40 4 20 19 46 M8 10 55 0.739 0.00031
76 50 84 40 4 20 18 48 M8 10 55 0.95 0.00055
83 58 84 40 4 20 18 48 M8 10 60 1.22 0.00087
92 65 88 42 4 22 19 50 M8 10 60 1.49 0.0014
100 68 104 50 4 22 27 50 M8 10 60 1.81 0.0018
125 83 124 60 4 30 30 65 M10 20 　 3.45 0.0046
140 96 144 70 4 32 36 72 M10 20 　 5.18 0.0099
175 124 186 90 6 45 46.5 93 M10 20 　 11.5 0.037
210 152 228 110 8 55 63 102 M12 30 　 20.5 0.1156



HT20-40 Cast Iron Pump Rubber Coupling Machinery Nylon Sleeve 0



Our strategic partners

HT20-40 Cast Iron Pump Rubber Coupling Machinery Nylon Sleeve 1

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.







FAQ



Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.



Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment



Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters



Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.



Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.



Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.



Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.



Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
