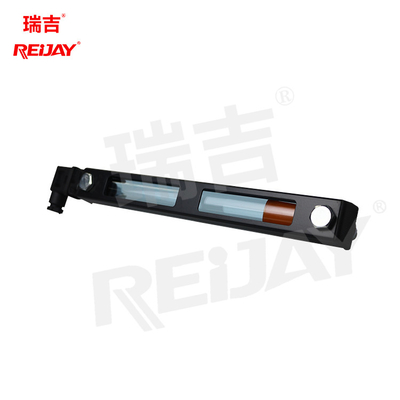

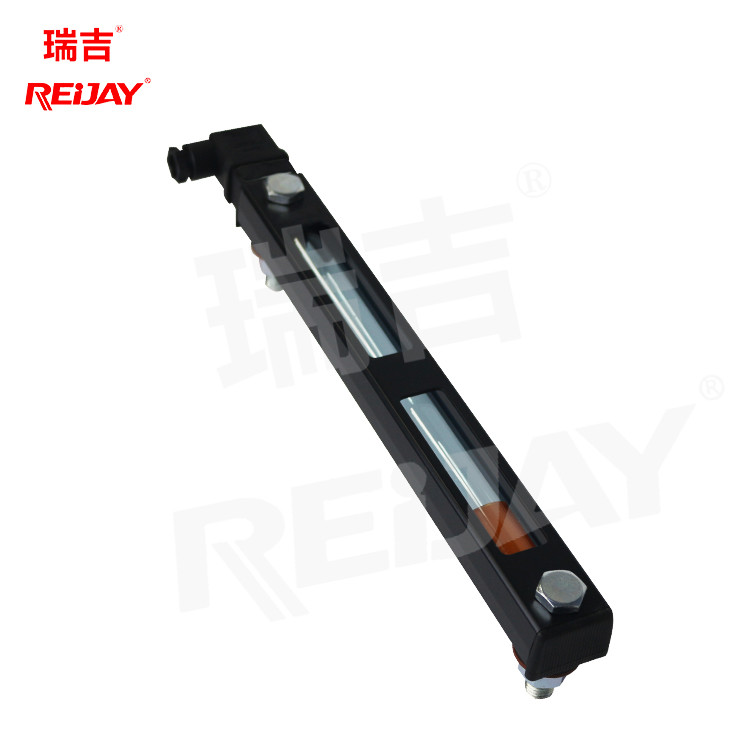

High Precision Hydraulic Oil Level Sight Glass 254mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature | -20℃~+80℃ | Applicable Medium | DIN |
|---|---|---|---|
| Feature | High Precision | Advantage | Good Stability |
| Specification | Various Specifications | Customize | Support |
| Product Name | Hydraulic Oil Level Gauge | Oem | Yes |
| Application | Hygienic Liquid Storage Container | ||
| High Light | High Precision Hydraulic Oil Level Sight Glass,Hydraulic Oil Level Sight Glass |
||
Product Description
High precision and good stability Hydraulic Oil Level Gauge is widely used in the field of industrial control
Hydraulic Oil Level Gauge is a dual-chamber liquid level gauge. The measured medium is isolated from the cavity at the end of the magnetic panel. The inside of the cavity at the container end and the float are specially treated to ensure that the float is linearly transmitted to the magnetic panel following the change of the liquid level. , and clearly and accurately indicate the height of the liquid level. It can display on-site, take into account the alarm control and output remote signal.
Technical Specifications of Hydraulic Oil Level Gauge:
| LV/E1- | ||
| Oil level indicator | ||
| Without switch, visual indicator | E | |
| No variable switch possible min. level | E1* | |
| No variable switch possible minJmax. level | E2* | |
| Round thermometer | TS | |
| 254- | ||
| Interaxis fastening screws | ||
| Standard length L | 76 | 127 |
| 254 | 381 | |
| 508 | 635 | |
| Special length up to 4000 mm | xxxx | |
| M12- | ||
| Fastening screws | ||
| M12 | Standard Thread | |
| M10 | On Request | |
| S1 | ||
| Optional Electromagnetic Switches ,Variable only starting from 127 mm |
||
| S1 S2 S3 |
Contacts open, with oil *** | |
| Material Specification | ||
| End covers Protection shield Control glass Gaskets Gaskets in connection with Pyrex tube Fastening screws M12(MW) |
Nylon glass-fibre 35% Aluminium U-profile Shock-resistant Acryl tube NBR Viton Stainless steel |
|
| Technical Specification | ||
| Commutable power D. C. | 20 W | |
| Commutable power A.G | 20 VA | |
| Max. current D.CJA.C | 1A | |
| Operation voltage | 200 V | |
| Temperature range Acryl tube | -20 to+70 °C | |
| Temperature range Pyrex tube | -20 to+100 °C | |
| Connector | DIN40050; PG 7 | |
| Protection class | IP 65 | |
| Suitable liquids | Hydraulic oil, Petrolium, water | |
