Hydraulic Electric Motor Bellhousing IEC Standard Aluminum Alloy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feature | Aluminum Alloy | Application | Motor And Pump |
|---|---|---|---|
| Advantage | Connect IEC Standard Motor | Working Environment | Various Occasions |
| Customize | Support | Warranty | 2 Years |
| After-sales Service | Support | Product Name | RC Electric Motor Bellhousing |
| High Light | Hydraulic Electric Motor Bellhousing,IEC Electric Motor Bellhousing,REIJAY motor bell housing |
||
Product Description

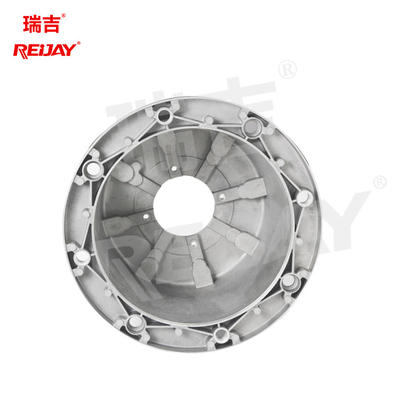

Connect IEC standard motor and Aluminum alloy Electric Motor Bellhousing for hydraulic system
Electric Motor Bellhousing material is made of aluminum alloy, with good rigidity, and cast iron material can also be customized. The connection flanges at both ends are machined and can be connected to various hydraulic pumps of ISO standard installation size
The motor shaft and the hydraulic pump shaft are automatically aligned, which is convenient, accurate and efficient to install.
Technical Specifications
| Model type | Pump connection method | Di | d2 | d3 | d4 | d1 | d2 | L | L1 | F | G | G1 | G2 | M | M1 | M2 |
| RC200/80/401 | Fig.l | 200 | 165 | 130 | 145 | 32 | 129 | 80 | 16 | 5 | 11 | M10 | 2XM8 | 40 | 40 | 10.35 |
| RC200/80/448 | Fig.4 | 25.4 | 4XM6 | 72 | 52.4 | 26.2 | ||||||||||
| RC200/80/453 | 30 | 73 | 56 | 24.5 | ||||||||||||
| RC200/80/468 | Fig.3 | 22 | 2XM6 | 66 | 25.5 | 33 | ||||||||||
| RC200/80/493 | Fig.4 | 33 | 4XM6 | 72 | 52.4 | 26.3 | ||||||||||
| RC200/90/401 | Fig.l | 32 | 90 | 2XM8 | 40 | 40 | 10.35 | |||||||||
| RC200/90/448 | Fig.4 | 25.4 | 4XM6 | 72 | 52.4 | 26.2 | ||||||||||
| RC200/90/453 |
30 |
73 | 56 | 24.5 | ||||||||||||
| RC200/90/468 | Fig.3 | 22 | 2XM6 | 66 | 25.5 | 33 | ||||||||||
| RC200/90/493 | Fig.4 | 33 | 4XM6 | 72 | 52.4 | 26.2 | ||||||||||
| RC200/96/439/ZFV* | 50 | - | 96 | 2XM10 | 80 | 60 | 14.5 | |||||||||
| RC200/96/441/ZFV* | 80 | 4XM8 | 100 | 72 | 34.5 | |||||||||||
| RC200/96/446/ZFV* | 36.5 | 96.2 | 71.5 | 32.7 | ||||||||||||
| RC200/96/459/ZFV* | 36.5 | 4XM6 | ||||||||||||||
| RC200/100/404 | 52 | 129 | 100 | 2XM8 | 62 | 62 | 23.3 | |||||||||
| RC200/100/405 | 63 | |||||||||||||||
| RC200/100/474 | 32 | 52 | 52 | 19.5 | ||||||||||||
| RC200/100/476 | 45.24 | |||||||||||||||
| RC200/106/439 | 50 | - | 106 | 2XM10 | 60 | 60 | 14.5 | |||||||||
| RC200/106/441 | 80 | 4XM8 | 100 | 72 | 34.5 | |||||||||||
| RC200/106/446 | 36.5 | 96.2 | 71.5 | 32.7 | ||||||||||||
| RC200/106/459 | 36.5 | 4XM6 | ||||||||||||||
| RC200/110/404 | 52 | 129 | 110 | 2XM8 | 62 | 62 | 23.3 | |||||||||
| RC200/110/405 | 63 |
Our Strategic Partners
Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.
FAQ
Q: Who are we?
We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.
Q: How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment
Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters
Q: What can you buy from us?
Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.
Q: Why should you buy from us, not from other suppliers?
We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.
Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.
Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.
Q: What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken: English, Chinese, Spanish
