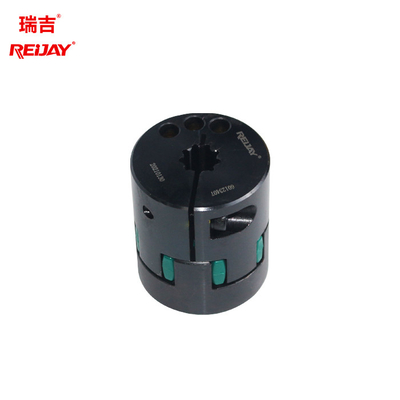

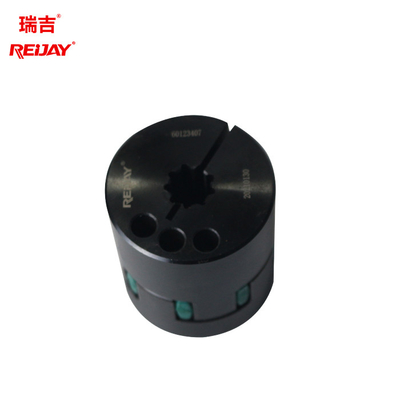

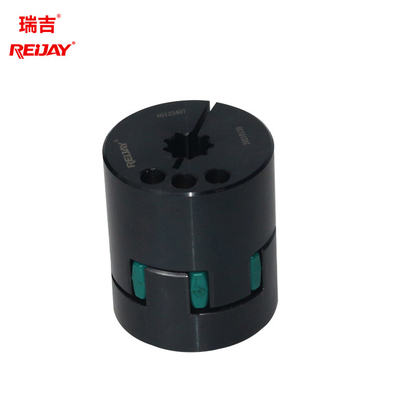

Disassembly Flexible Jaw Coupling REIJAY Multi Spec Stepped Shaft Coupling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Generally Used Material | Structure | Jaw / Spider |
|---|---|---|---|
| Flexible Or Rigid | Flexible | Product Name | Flexible Jaw Couplings |
| Type | Flexible Clamp Coupling | Color | Black |
| Application | Hydraulic Machinery | Certification | ISO 9001 |
| Service | OEM Service | Feature | Long Operating Life |
| High Light | Disassembly Flexible Jaw Coupling,REIJAY Flexible Jaw Coupling,Multi Spec Stepped Shaft Coupling |
||
Product Description
Convenient Maintenance and easy Disassembly Flexible Jaw Coupling with Multi-spec spider
The Flexible Jaw Coupling is suitable for connecting the transmission shafts of two coaxial lines. It is widely used in CNC machine tools, CNC lathes, CNC milling machines, engraving machines, metallurgical machinery, mining machinery, lifting machinery, petroleum machinery, chemical machinery, and transportation machinery. , Processing centers, light industrial machinery, water pumps, textile machinery, fans, etc. It has the performance of compensating the relative offset of the two axes, shock absorption, wear resistance and buffering.
Flexible Jaw Coupling generally have multiple specifications of elastomers, and the elastomers are generally composed of engineering plastics or rubber. The life of the coupling is also the life of the elastomer. Since the elastic body has the function of buffering and damping, it is often used in the occasion of strong vibration. The performance limit temperature of the elastomer determines the operating temperature of the coupling.
Technical Speicifications –spiders of Flexible Jaw Coupling
| Spider | Size | Torque [Nm] | Max. rotation n [1/min] | |||
| Contln, tkn | Alternat. tkw | V= 30 m/s | 40 m/s | |||
| 80° Shore | 14/16,15 | 4 | 8 | 1 | 19000 | |
| 19/24 | 4.9 | 9.7 | 1.3 | 14000 | 19000 | |
| 24/32 | 17 | 34 | 4.4 | 10600 | 14000 | |
| 28/38 | 46 | 92 | 12 | 8500 | 11800 | |
| 38/45 | 93 | 185 | 24 | 7100 | 9500 | |
| Scale A | 42/55 | 130 | 260 | 34 | 6000 | 8000 |
| Color:Blue | 48/60 | 150 | 300 | 39 | 5600 | 7100 |
| 55/70 | 180 | 360 | 47 | 4750 | 6300 | |
| 65/75 | 205 | 410 | 53 | 4250 | 5600 | |
| 75/90 | 475 | 950 | 124 | 3550 | 4750 | |
| 90/100 | 1175 | 2350 | 306 | 2800 | 3750 | |
| 100/110 | 1610 | 3220 | 419 | 2500 | 3350 | |
| 110/125 | 1950 | 3900 | 507 | 2240 | 3000 | |
| 125/145 | 2440 | 4880 | 634 | 2000 | 2650 | |
| 92° Shore | 14/16,15 | 7.5 | 15 | 2.0 | 19000 | |
| 19/24 | 10 | 20 | 2.6 | 14000 | 19000 | |
| 24/32 | 35 | 70 | 9.1 | 10600 | 14000 | |
| 28/38 | 95 | 190 | 25 | 8500 | 11800 | |
| 38/45 | 190 | 380 | 49 | 7100 | 9500 | |
| Scale A | 42/55 | 265 | 530 | 69 | 6000 | 8000 |
| Color: White | 48/60 | 310 | 620 | 81 | 5600 | 7100 |
| 55/70 | 410 | 820 | 107 | 4750 | 6300 | |
| 65/75 | 625 | 1250 | 163 | 4250 | 5600 | |
| 75/90 | 1280 | 2560 | 333 | 3550 | 4750 | |
| 90/100 | 2400 | 4800 | 624 | 2800 | 3750 | |
| 100/110 | 3300 | 6600 | 858 | 2500 | 3350 | |
| 110/125 | 4800 | 9600 | 1248 | 2240 | 3000 | |
| 125/145 | 6650 | 13300 | 1729 | 2000 | 2650 | |
| 98° Shore | 14/16,15 | 12.5 | 25 | 3.3 | 19000 | |
| 19/24 | 17 | 34 | 4.4 | 14000 | 19000 | |
| 24/32 | 60 | 120 | 16 | 10600 | 14000 | |
| 28/38 | 160 | 320 | 42 | 8500 | 11800 | |
| Scale A | 38/45 | 325 | 650 | 85 | 7100 | 9500 |
| Color: Red | 42/55 | 450 | 900 | 117 | 6000 | 8000 |
| 48/60 | 525 | 1050 | 137 | 5600 | 7100 | |
| 55/70 | 685 | 1370 | 178 | 4750 | 6300 | |
| 95°Shore | 65/75 | 940 | 1880 | 244 | 4250 | 5600 |
| 75/90 | 1920 | 3840 | 499 | 3550 | 4750 | |
| 90/100 | 3600 | 7200 | 936 | 2800 | 3750 | |
| Scale A | 100/110 | 4950 | 9900 | 1287 | 2500 | 3350 |
| Color: Red | 100/125 | 7200 | 14400 | 1872 | 2240 | 3000 |
| 125/145 | 10000 | 20000 | 2600 | 2000 | 2650 | |
| 64°Shore | 24/32 | 75 | 150 | 19.5 | 10600 | 14000 |
| 28/38 | 200 | 400 | 52 | 8500 | 11800 | |
| 38/45 | 405 | 810 | 105 | 7100 | 9500 | |
| 42/55 | 560 | 1120 | 146 | 6000 | 8000 | |
| 48/60 | 655 | 1310 | 170 | 5600 | 7100 | |
| Scale D | 55/70 | 825 | 1650 | 215 | 4750 | 6300 |
| Color:Green | 65/75 | 1175 | 2350 | 306 | 4250 | 5600 |
| 75/90 | 2400 | 4800 | 624 | 3550 | 4750 | |
| 90/100 | 4500 | 9000 | 1170 | 2800 | 3750 | |
