Stable Reliable Flexible Jaw Coupling 3D Printed Motor Coupler For Occasions

  • Stable Reliable Flexible Jaw Coupling 3D Printed Motor Coupler For Occasions
  • Stable Reliable Flexible Jaw Coupling 3D Printed Motor Coupler For Occasions
  • Stable Reliable Flexible Jaw Coupling 3D Printed Motor Coupler For Occasions
  • Stable Reliable Flexible Jaw Coupling 3D Printed Motor Coupler For Occasions
Place of Origin China
Brand Name REIJAY
Model Number RA
Minimum Order Quantity 1 set
Price USD10.00-USD50.00
Packaging Details Yes
Delivery Time 7 days
Payment Terms T/T, D/P, Western Union
Supply Ability 500 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO 9001 Flexible Or Rigid Flexible
Standard Or Nonstandard Standard Product Name Flexible Jaw Coupling
Type Standard Or Nonstandard Weight Depends
Service OEM Service Size Customized Size
Surface Treatment Black Oxide
High Light

Reliable Flexible Jaw Coupling

,

Stable Flexible Jaw Coupling

,

3D Printed Motor Coupler
Leave a Message
Product Description

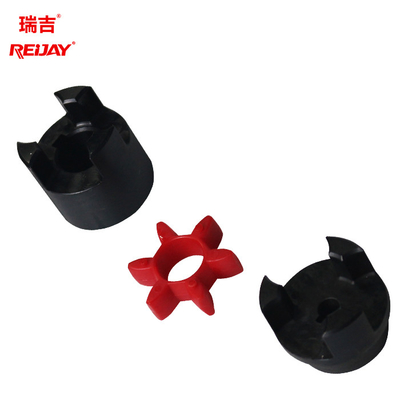

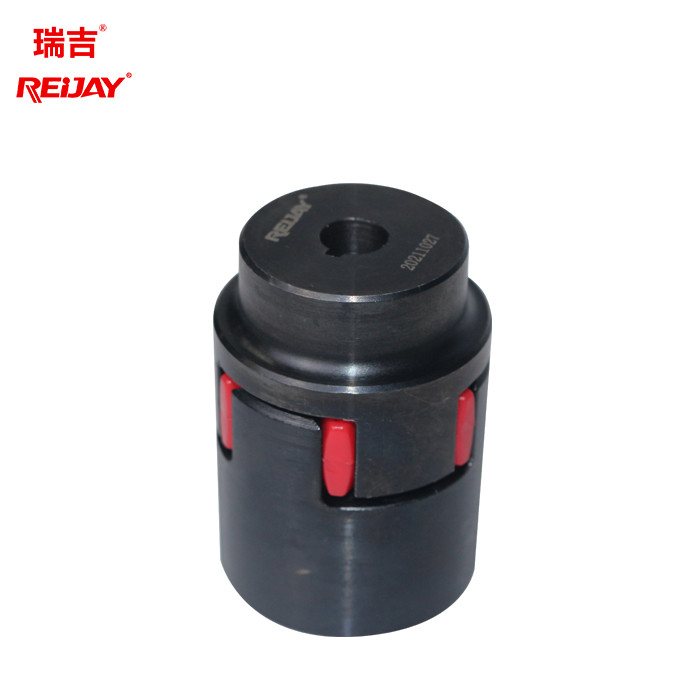

Stable and reliable Flexible Jaw Coupling is suitable for medium and high speed occasions



      The Flexible Jaw Coupling uses plum-shaped elastic elements to be placed between the two half-coupling claws to realize the connection of the two half-couplings.



      Flexible Jaw Coupling are well balanced and suitable for high speed applications, but cannot handle large deflections, especially axial deflections. Larger eccentricities and declinations create larger bearing loads than other servo couplings. Another issue of concern is the failure of the plum coupling. Once the elastomer is damaged or fails, the torque transmission is not interrupted, and the metal claws of the two bushings mesh together to continue to transmit torque, which is likely to cause problems in the system. Choosing the right elastomer according to the actual application is a great advantage of this coupling.



Technical Specifications



Type Bans Dimensions [mm] Weight Special Hub length
Finish bores L1 +
HubA HubB
mln max min max A B Ba L L2 E s b C C1 dh g f H* [kg] [mm]
Material: Die cast Aluminium
A15 　 　 4 15 26 　 26 28 10 8 1 6 　 　 12 M5 5 8 0.025 　
Al 9/24 6 19 19 24 40 32 39 66 25 16 2 12 20 21 18 M5 10 14 0.13 55
A24/32 8 24 16 32 55 40 53 78 30 18 2 14 24 26 27 M5 10 16 026 60
A28/38 10 28 28 38 65 48 63 90 35 20 2.5 15 28 29 30 M6 15 18 0.46 60
A38/45 14 38 38 45 80 66 79 114 45 24 3 18 37 39 38 M8 15 19 0.90 70
Material: Castimn (GG), SG Iron (GGG), Steel (St), Sintered steel (Si)
A14/16 Sint 　 　 4 16 30 　 30 35 11 13 15 10 　 　 10 M4 5 12 0.14 185
A19/24 GG/St/Si 6 19 12 24 40 32 39 66 25 16 2 12 20 21 18 M5 10 14 035 55
A24/32 GG/St/SI 10 24 14 32 55 40 52 78 30 18 2 14 24 26 27 M5 10 16 1.0 60
A28/38 GG/St/Si 12 28 28 38 65 45 62 90 35 20 25 15 28 29 30 M6 15 18 1-6 80
A38/45 GG/GGG/SVSi 14 38 38 45 80 66 77 114 45 24 3 18 37 37 38 M8 15 19 023 110
A42/55 GG/GGG/St 19 42 42 55 95 75 94 126 50 26 3 20 40 40 46 M8 20 21 3.6 no
A48/60 GG/GGG/St 19 48 48 60 105 85 102 140 56 28 3.5 21 45 45 51 M8 20 22 4.8 no
A55/70 GG/GGG/St 19 55 55 70 120 98 118 160 65 30 4 22 52 52 60 M10 20 23 7.4 140
A65/75 GG/GGG/St 22 65 65 75 135 115 132 185 75 35 4.5 26 61 59 68 M10 20 27 10.9 140
A75/90 GG/GGG/St 30 75 75 90 160 135 158 210 85 40 5 30 69 65 80 M10 25 31 177 195
A90/100 GG/GGG/St 40 90 90 100 200 160 180 245 100 45 5.5 34 81 81 100 MIO 25 35 29.5 140/210
A100/110 GG/GGG/St 　 　 55 110 225 　 200 270 110 50 6 38 　 89 113 M12 30 39 435 　
A110/125 GG/GGG/St 　 　 65 125 255 　 230 295 120 55 6.5 42 　 96 127 M16 35 43 063 　
A125/145 GG/GGG/St 　 　 65 145 290 　 265 340 140 60 7 46 　 112 147 M16 40 47 095 　



Stable Reliable Flexible Jaw Coupling 3D Printed Motor Coupler For Occasions 0
