ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm

  • ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm
  • ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm
  • ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm
  • ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm
  • ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm
Place of Origin China
Brand Name REIJAY
Certification ISO CE
Model Number 55/70
Minimum Order Quantity 1 set
Price USD10.00-USD50.00
Packaging Details Yes
Delivery Time 7 days
Payment Terms T/T, D/P, Western Union
Supply Ability 500 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Cast Iron Keywords Flexible Pump Rubber Coupling; Spline Shaft Coupling
Standard IEC Standard Motor And Nemo Motor Outside Diameter(D) 26mm ~ 420mm
Hole Diameter(d) 4mm-200mm Structure Jaw/ Spider
Warranty 2 Years Packing Wooden Case
Body #45 Brand Reijay
High Light

ODM Flexible Pump Rubber Coupling

,

26mm Flexible Pump Rubber Coupling

,

Spline Shaft Coupling
Leave a Message
Product Description

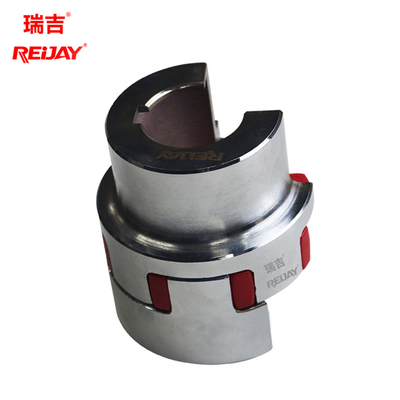

ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm



      If you need the NBL series curved jaw coupling with zero backlash capability in a 3-piece design, please refer to our catalogue. The coupling is provided and assembled under prestress. The series can be used in various applications requiring precision and accuracy.



      The series spider features a straight centre of the spider tooth, providing higher stiffness due to coupling pretress.



      The crowning of the ends of the spider legs allows for misalignment, while the curved jaws and solid spider centre provide high-speed capability.







Technical Specifications



Product Name Aluminium alloy material Rotex Coupling/flexible jaw coupling/Reijay coupling hydraulic motor coupling A19,24,28,38,42,48,55,65,….
Standard IEC standard Motor
Material Stainless Steel, Cast Steel, Aluminium, Cast Iron
Type Claw Coupling/ Elastic Couplings/ NBL Precision no backlash/expansion sleeve toothless/….
Operating Temperature -40°C to +120°C
Connecting Way Keyway, Spline Single slot locking, etc
Feature Light Weight, Flexible, Vibration Damping
Custom Order Available upon request
Application Engine Construction and Plant Engineering, IEC Standard Motor, Mining Machinery, Hydraulic Machinery….



Dimensions

Max. Radial displacement max. angular displacement n=1500tnin-1

 Torque(Nm) Dimensions Max radial displacement with 1°angular displacement and n=15001/mln Max axial displacement Hexagon screws
DIN933
8.8 or 10.9
Spec OD H LTB G S BSE OAL (ASPC) Tkn Tkmax F SL OAL ADSPC Screw Spec Screw Quantity

Torque TA

[Nm]
100 140 180 250
19 40 18 25 16 10 42 92 0.65 Each
Sleeve
Hub
1°30'		 　　　　　　　　　　　　　
24 55 27 30 18 16 52 112 0.89 35 70 8 52 BSE+60 1.4 　 　 　 1.4 M5 16 6
28 65 30 35 20 18 58 128 1 95 190 10 60 BSE+70 1.4 　 　 　 1.5 M6 16 14
38 80 38 45 24 20 68 158 1.15 190 380 10 68 BSE+90 1.3 2 　 　 1.8 M8 16 35
42 95 46 50 26 22 74 174 1.26 265 530 12 76 BSE+100 　 2 　 　 2 M8 16 35
48 105 61 56 28 24 80 192 1.36 310 620 12 80 BSE+112 　 2 　 　 2.1 M8 16 35
55 120 60 65 30 28 88 218 1.52 410 820 16 92 BSE+130 　 1.9 2.6 3.8 2.2 M10 8 69
65 135 68 75 35 32 102 252 1.75 625 1250 16 102 BSE+150 　 　 　 3.8 2.6 M10 12 69
75 160 80 85 40 36 116 286 2 1280 2560 19 118 BSE+170 　 　 2.4 3.7 3 M12 15 120
90 200 100 100 45 40 130 330 2.5 2400 4800 20 130 BSE+200 　 　 　 3.5 3.4 M16 15 295



ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm 0









Our Strategic Partners

ODM Flexible Pump Rubber Coupling Spline Shaft Coupling 26mm 1



      Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.





FAQ

Q: Who are we?

        We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.



Q: How can we guarantee quality?

        Always a pre-production sample before mass production; Always final Inspection before shipment



Q: What information should I tell you to confirm the product?
        Motor drawing or other technique parameters



Q: What can you buy from us?

        Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.



Q: Why should you buy from us, not from other suppliers?

        We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.



Q: What is your product warranty period?
        We offer 2-10 years of service life since the vessel departure date left China.



Q: What are your terms of payment?
        Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.



Q: What services can we provide?

        Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

        Accepted Payment Currency: USD, EUR, HKD, CNY;

        Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

        Language Spoken: English, Chinese, Spanish
