L LOC Electric Hydraulic Motor Drive Coupling LM Torsion Shaft

Place of Origin China
Brand Name REIJAY
Certification Provide
Model Number LM
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Accoording to your need
Delivery Time Negotiable
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Reduce The Vibration In The Transmission Application Engine
Applicable Working Conditions Occasions With Special Requirements For Torsional Vibration Advantage High Performance
Coupling Type Flexible Coupling Bore Type According To Your Need
Rated Torque 350-5000N.m Service LLife 2 Years
Product Name LM Torsion Shaft Coupling Other Welcom To Contact Us
High Light

L LOC Hydraulic Motor Drive Coupling

,

LM Hydraulic Motor Drive Coupling

,

Torsion electric motor coupling

Leave a Message
Product Description

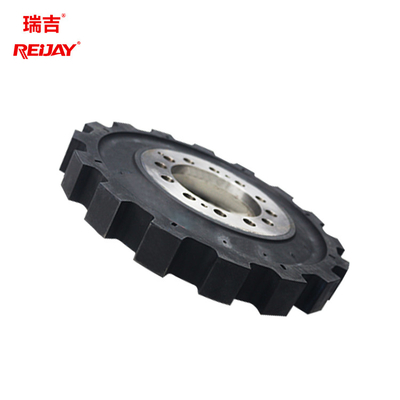

L-LOC locking construction and corrosion resistant LM Torsion Shaft Coupling for engine



      LM Torsion Shaft Coupling uses rubber as a material for rubber parts connecting two shafts or shafts and rotating parts in mechanical transmission shafting. It plays the role of transmitting motion and power, and has the functions of compensating for the relative displacement of the two axes and buffering and damping. It is suitable for occasions driven by internal combustion engines and many other occasions with special requirements for torsional vibration.





Technical Specifications



Size rated torque Nm max rotary speed Bore weight F(FFR) KG OAL f(FFR) mm LTB mm LTB1 mm BSEF (FFR) ADF (FFR) mm FD mm D mm HD mm parallel misalignment mm max angular misalignment
Non dynamic balance RPM dynamic balance RPM ID 1 ID 2
max bore finishe d
mm
max bore finishe d
mm
1 850 6000 9000 42 11 56 Solid 4⑷ 89(87) 43 40 3(4) 52(56) 116 78 59 1.4 1.5° each bite
1.5 2140 5000 8250 56 18 76 9(8) 102(100) 49 47 3(4) 59(63) 152 101 76 1.5
2 3560 5000 7500 73 24 95 15(15) 127(124) 62 58 3(4) 75(79) 178 123 102 2.2
2.5 6410 4400 6600 85 37 114 25(25) 159(156) 77 74 5(5) 88(93) 213 148 118 2.7
3 10700 4000 6000 107 37 134 36(39) 187(183) 91 87 5(5) 101(105) 240 174 143 2.9
3.5 17100 3500 5250 125 46 150 59(61) 219(213) 106 101 6(6) 116(121) 279 201 165 3.3
4 24900 3000 4500 145 62 176 86(89) 248(241) 121 113 6(8) 127(135) 318 235 191 3.8
4.5 34200 2700 4050 165 76 202 114(112) 278(272) 135 128 8(9) 140(152) 346 264 216 4.4
5 41900 2500 3750 180 76 230 101 173(179) 314(306) 153 145 8(9) 161(170) 389 294 241 5.1
5.5 64800 2200 3300 200 101 260 114 236(239) 359(241) 176 156 8(9) 179(186) 425 323 267 5.6
6 84700 2100 3150 225 101 285 127 295(312) 384(387) 188 188 8(10) 212(223) 457 356 292 3
7 113900 2000 3000 255 127 320 139 431(462) 451(454) 221 221 10(13) 249(262) 527 400 330 3.4
8 149500 1900 2850 310 152 375 165 708(730) 568(572) 279 279 10(13) 313(325) 591 466 394 4.1
9 206400 1800 2700 340 117 415 190 915(966) 597(598) 292 292 13(14) 330(344) 660 518 432 4.2
