Torque Gearbox Motor Coupling Cast Iron Motor Shaft Coupler LightWeight

Place of Origin China
Brand Name REIJAY
Certification Provide
Model Number B24
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Yes/ Available upon request
Delivery Time Negotiable
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nylon Sleeve Gear Coupling Working Environment Low To Medium Torque Applications
Warranty 2 Years Material Cast Iron
Advantage Low Transmission Efficiency Loss Application Flexible Transmission Between Shafts
Customize Yes Packaging Type Case
Condition New After-sales Service Provided Support
High Light

Torque Gearbox Motor Coupling

,

cast iron Gearbox Motor Coupling

,

LightWeight Motor Shaft Coupler

Leave a Message
Product Description

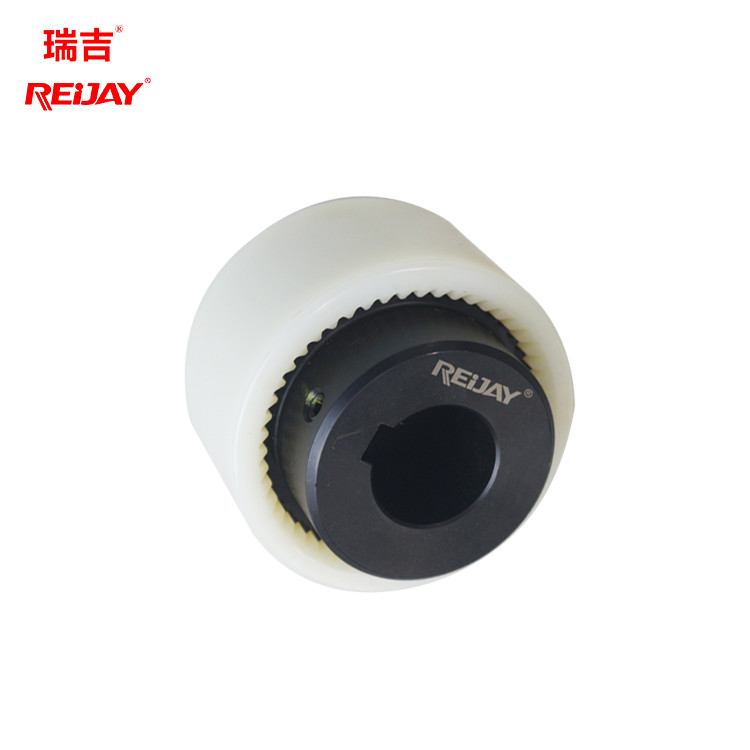

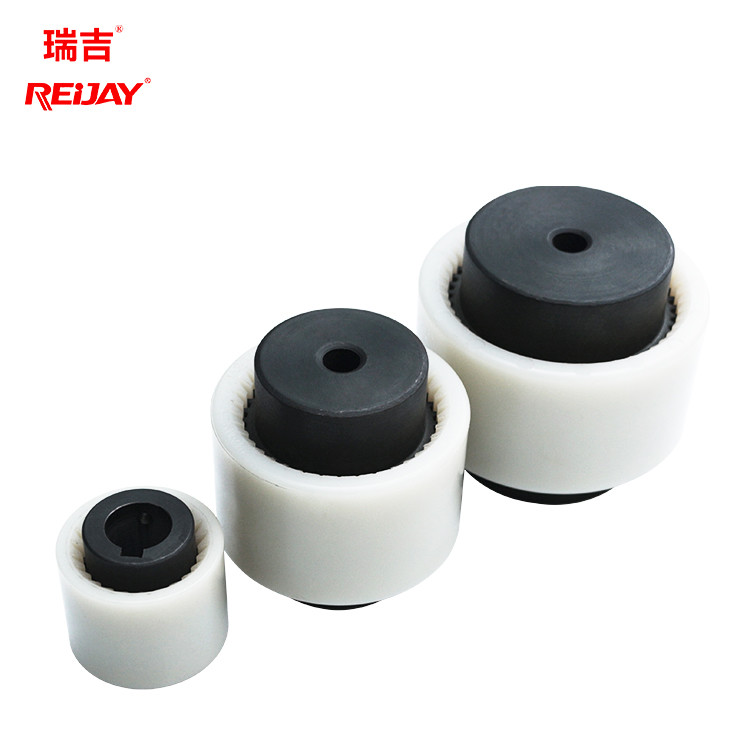

Nylon Sleeve Gear Coupling with low moment of inertia and light weight for low to medium torque applications



Nylon Sleeve Gear Coupling's inner gear ring is made of nylon material, and the outer gear shaft sleeve is made of forged steel. It has the advantages of small size, light weight, low moment of inertia, low noise, convenient assembly and disassembly, and no need for lubrication. It can be used for small and medium torques. environment, such as fans, water pumps, lubrication pumps, textile machinery, etc.



Technical data of Nylon Sleeve Gear Coupling:

Type Rotation Torque
[Nm]
PowerP [kW/mfn-1] Misalignment max
axial
axial
[mm]
radial radial [mm] winklig angular [Grad]
n max [1/min] Tkn Tkmax Nenn max
B-14 8000 10 20 0.001 0.0021   ±0.3
B-19 8000 16 32 0.0017 0.0033
B-24 8000 20 40 0.0021 0.0042
B-28 8000 45 90 0.0047 0.0094
B-32 7000 60 120 0.0063 0.0130
B-38 6000 80 160 0.0084 0.017   ±0.4
B-42 5400 100 200 0.01 0.02
B-48 5000 140 280 0.015 0.029
B-55 4000 250 500 0.026 0.052
B-65 3800 390 780 0.041 0.08 ±1 ±0.6 ±1 perhub
B-80 3000 700 1400 0.073 0.15   ±0.7
B-100 2400 1250 2400 0.13 0.25   ±0.8
B3R 24 10200 20 40 0.002 0.004
28 8300 45 90 0.0045 0.0095   ±0.4
  32 7000 80 160 0.0084 0.017
  45 5000 140 280 0.015 0.029
B3R
B4R
65 3800 390 780 0.041 0.08   ±0.6
80 3000 700 1400 0.073 0.15   ±0.7
  100 2400 1250 2400 0.13 0.25   ±0.8





Torque Gearbox Motor Coupling Cast Iron Motor Shaft Coupler LightWeight 0



Our strategic partners

Torque Gearbox Motor Coupling Cast Iron Motor Shaft Coupler LightWeight 1

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.
