PLC Hydraulic Nylon Sleeve Gear Coupling Bowex B28 Coupling, nylon sleeve gear coupling

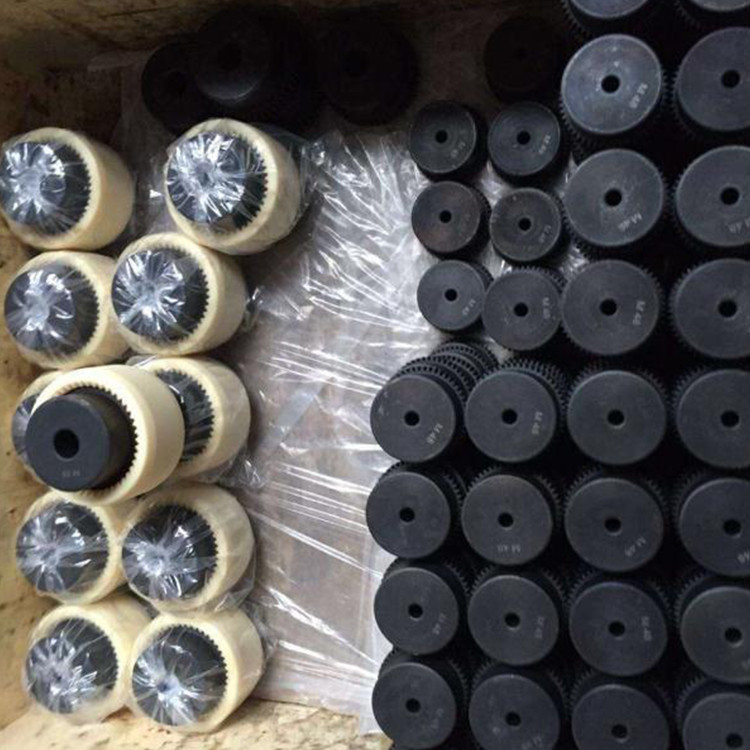

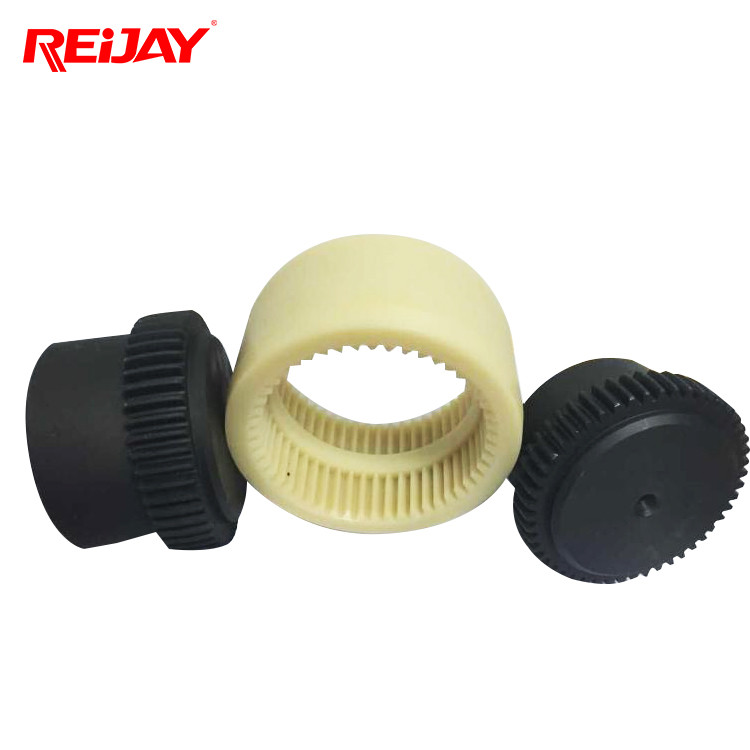

Bowex M-28 Nylon Sleeve Gear Coupling

      1. Compensation of axial, radial and angular misalignment of shafts through double cardanic action; Simple and easy assembly; High electrical insulating property; High thermal stability; No maintenance needed

      2. The DENTEXR coupling is a flexible gear coupling whose typical features are two congruent hubs with crowned teeth that transmit torque by meshing with a housing component's internal toothing of a housing component.

      3. The coupling sleeve with axially parallel involute gearing is centred at the tooth flanks of the coupling hub. The coupling design fulfils the requirement to compensate radial, angular and axial shaft displacements to relieve the neighbouring shaft bearings from non-controlled, additional loads.

      4. Even with the maximum permissible displacement, edge contact of the teeth is excluded, and there will be no periodic variation of the angular velocity. The high internal cushioning properties of the plastic material used for the coupling sleeve reduce the effect of shock loading.

      5. DENTEXR couplings are suitable for horizontal and vertical shaft connection, reversing and intermittent service. The steel/plastic combination also has the advantage that no lubrication by oil or grease is required;

      6. the coupling, therefore, does not need any maintenance. The 6.6-polyamide used for the coupling sleeve is distinguished by its excellent sliding properties and wear resistance; it is also resistant to all market-standard lubricants and hydraulic fluids. However, substances of strongly polar character, such as concentrated mineral acids, formic acid, cresol, glycol, and benzyl alcohol, can dissolve 6.6-polyamide at high temperatures.

      7. Maximum service reliability is guaranteed at temperatures between-25 C and +80 °C. A coupling sleeve in heat-stabilised polyamides is required for temperatures up to +140“℃.

Technical Specifications:
