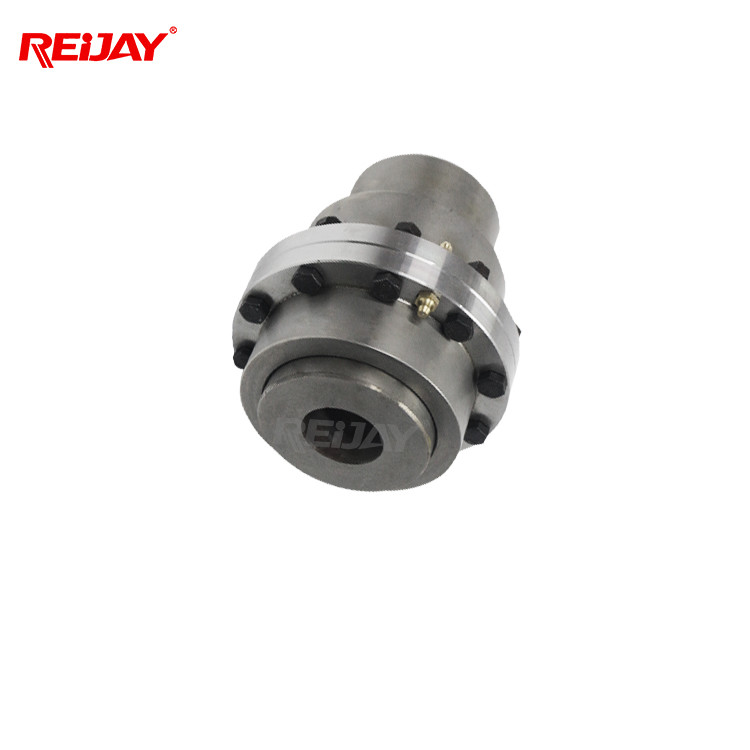

Abrasion Resistant Flexible Gear Coupling For Bridge Crane
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Bridge Cranes | Marerial | St 52.3 |
|---|---|---|---|
| Feature | Simple Structure And Wide Application | Rated Torque | 850-206400N.m |
| Advantage | Durable And Abrasion Resistant | Service Life | 2 Years |
| Name | Flexible Gear Coupling | Other | Support Customization |
| Highlight | Gear Flexible Shaft Coupling,Abrasion Resistant Flexible Drive Gear Coupling,Bridge Crane Gear Type Flexible Coupling |
||
Product Description
Durable And Abrasion Resistant Flexible Gear Coupling For Bridge Crane Most Concerned By Russia
Compared with other high torque drivers, flexible gear coupling has the characteristics of compact structure, lightweight and long service life. The loss of transmission torque can be reduced furthest, and there is almost no noise and vibration during high-speed rotation.
The flexible gear coupling needs regular lubrication. If there is a lack of grease or oil, it will fail prematurely. The shaft seal is usually an O-ring that holds the lubricant in place. Wear is a normal aspect of gear couplings, but with proper lubrication, it can be managed within the service life of the coupling.
Technical Specifications
| Size |
Rated Torque (Nm) |
max. Rotary Speed | Bore size |
weight (kg) |
OAL (mm) |
LTB (mm) |
LTB1 (mm) |
||
| Non-dynamic balance RPM | Dynamic balance RPM | ID1 | ID2 | ||||||
| max. | max. | ||||||||
| 7 | 110000 | 2000 | 3000 | 225 | 320 | 431 (462) | 451 (452) | 221 | 221 |
| 8 | 150000 | 1900 | 2850 | 310 | 375 | 708 (730) | 568 (572) | 279 | 279 |
| 9 | 210000 | 1750 | 2625 | 340 | 415 | 915 (966) | 597 (598) | 292 | 292 |
| 10 | 280000 | 1550 | 2325 | 355 | 455 | 1,135 (1236) | 622 (626) | 305 | 305 |
| 11 | 390000 | 1400 | 2100 | 410 | 500 | 1,535(1653) | 679 (683) | 334 | 334 |
| 12 | 500000 | 1300 | 1950 | 435 | — | 1,891(2047) | 718 (721) | 353 | 353 |
| 13 | 600000 | 1150 | 1725 | 480 | — | 2,368(2542) | 762 (762) | 372 | 372 |
| 14 | 730000 | 1050 | 1575 | — | — | 2,906 (3104) | 806(806) | 394 | 394 |
| 15 | 880000 | 900 | 1350 | — | — | 3,500 (3743) | 857 (857) | 419 | 419 |
| 16 | 1070000 | 800 | 1200 | — | — | 4,200 (4471) | 908 (908) | 441 | 441 |
| 18 | 1420000 | 550 | 825 | — | — | 5,398 (5754) | 940(940) | 457 | 457 |
| 20 | 1920000 | 450 | 675 | — | — | 7,641 (8223) | 1099 (1099) | 537 | 537 |
| 22 | 2420000 | 380 | 570 | — | — | 9,974 (10747) | 1194(1197) | 584 | 584 |
| 24 | 2990000 | 325 | 485 | — | — | 12,592(13601) | 1283(1286) | 629 | 629 |
| 26 | 3700000 | 280 | 420 | — | — | 15,604(16845) | 1372 (13750 | 673 | 673 |
| 28 | 4410000 | 240 | 360 | — | — | 18,573(19981) | 1403(1407) | 689 | 689 |
| 30 | 5340000 | 220 | 330 | — | — | 21,551 (23184) | 1429(1432) | 702 | 702 |
Our Strategic Partners
Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.
FAQ
Q: Who are we?
We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.
Q: How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment
Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters
Q: What can you buy from us?
Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.
Q: Why should you buy from us, not from other suppliers?
We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.
Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.
Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.
Q: What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken: English, Chinese, Spanish
