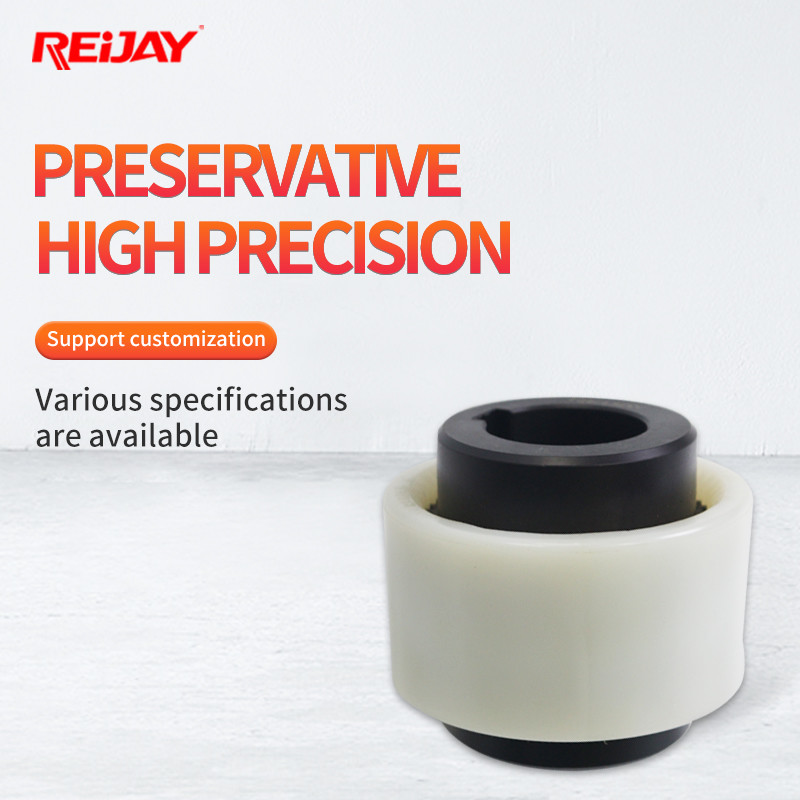

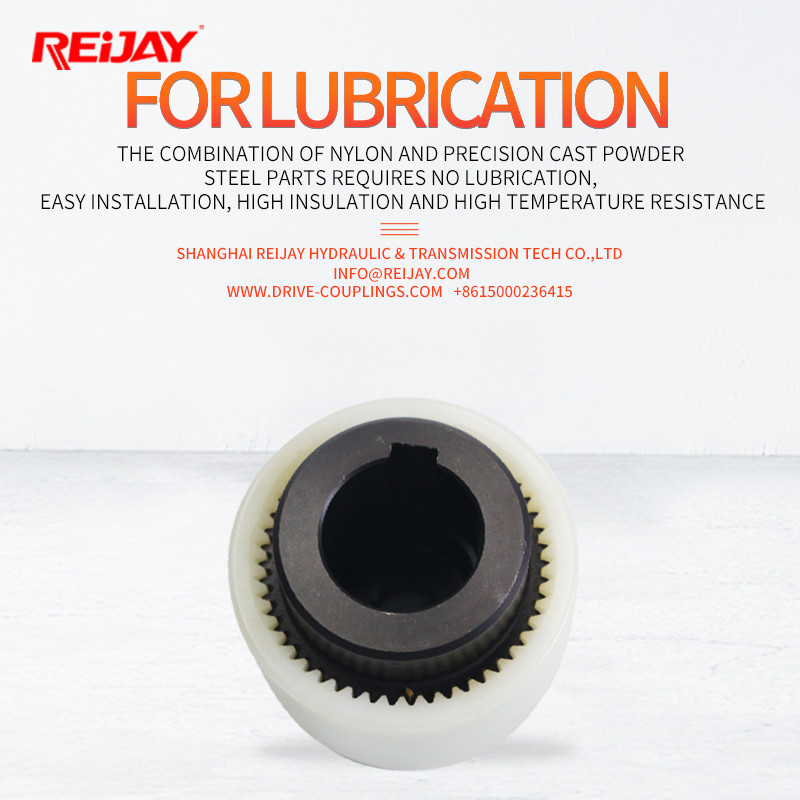

Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems

  • Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems
  • Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems
  • Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems
Place of Origin China
Brand Name REIJAY
Certification Provide
Model Number B24
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Yes/ Available upon request
Delivery Time Negotiable
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Nylon Sleeve Gear Coupling Working Environment Mechanical Machinery And Hydraulic System
Warranty 2 Years Material Nylon And Steel Hub
Advantage Low-noise And Non-lubricated Application Engine And Pump
Quotation FOB, EXW Ect... Packaging Type Wooden Case
Standard Condition Yes After-sales Service Provided Support
Highlight

Construction Nylon Sleeve Gear Couplings

,

Hydraulic Systems Nylon Sleeve Gear Couplings

,

Engine Nylon Sleeve Coupling
Leave a Message
Product Description

Multiple specifications and long life Nylon Sleeve Gear Couplings For Construction Machinery and Hydraulic Systems



REIJAY mechanical transmission technology co., LTD. focus on research and development, design, manufacturing of mechanical power transmission components, hydraulic group accessories and heat exchange products, with nearly 20 years of brand experience and German and American manufacturing technology for product quality assurance and comprehensive technical support, our nylon sleeve gear coupling for drum shape, drum tooth coupling can allow large angular displacement, can improve the tooth contact conditions, improve the ability to transfer torque, prolong the service life.Enhanced durability when running under high load, with high cushioning and shock absorption performance, and has a greater compensation ability for axial, angular and radial displacement deviation.



Technical data of Nylon Sleeve Gear Coupling:

Motor
sixe		 WilteSfMift
Dxl [mm]		 n=750 [1/min] Power P Coupling Tk max [Nm] n = 1000 [1/min] Power P Coupling Tk max [Nm] n = 1500 [1/min] Power P Coupling Tk max [Nm] n=3000(1/min] PawwP Coupling Tk max [Nm]
1500 [1/mln] 3000 [1/mm] [kW] TAN [Nm] [kW] TAN [Nm] [kW] TAN [Nm] [kW] TAN [Nm]
56 9x20 　 　 14 20 0.037 0.43 14 20 0.06 0.4 14 20 0.09 0.3 14 20
0.045 0.52 0.09 0.6 0.12 0.4
63 11x23 　 　 14 20 0.06 0.7 14 20 0.12 0.9 14 20 0.18 0.6 14 20
0.09 1.1 0.18 1.2 0.25 0.9
71 14x30 0.09 1.4 14 20 0.18 2 14 20 0.25 1 14 20 0.37 1.3 14 20
0.12 1.8 0.25 2.8 0.37 2.5 0.55 1.9
80 19x40 0.18 2.5 19 32 0.37 3.7 19 32 0.55 3.7 19 32 0.75 2.5 19 32
0.25 3.5 0.55 5.5 0.75 5 1.1 3.7
90S 24x50 0.37 5.3 24 40 0.75 7.9 24 40 1.1 7.5 24 40 1.5 4.9 24 40
90L 0.55 7.9 1.1 11 1.5 10 2.2 7.4
100 L 28x60 0.75 11 28 90 1.5 15 28 90 2.2 15 28 90 3 9.8 28 90
1.1 16 3 20 4 13
112M 28x60 1.50 21 28 90 2.2 22 28 90 4 27 28 90 4 13 28 90
132 S 38x80 2.20 29 38 160 3 30 38 160 5.5 36 38 160 5.5 18 38 160
7.5 25
132 M 3 40 4 39 7.5 49 　 　
5.5 55
160M 42x110 4 54 42 200 7.5 74 42 200 11 72 42 200 11 35 42 200
5.50 74 15 49
160 L 7.50 100 11 108 15 98 18.5 60
180M 48x110 　 　 48 280 　 　 48 280 18.5 121 48 280 22 72 48 280
180 L 11 147 15 147 22 144 　 　
200L 55x110 15 196 55 500 18.5 185 55 500 30 195 55 500 30 97 55 500
22 215 37 117
225 S 60x140 55x110 18.50 245 65 780 　 　 65 780 37 245 65 780 　 　 55 500
225 M 22 294 30 292 45 294 45 146
250 M 65x140 60x140 30 390 65 780 37 361 65 780 55 357 65 780 55 176 65 780
280S 75x140 65x140 37 490 80 1400 45 440 80 1400 75 487 80 1400 75 245 65 780
280 M 45 585 55 536 90 584 90 294
315 S 80x170 65x140 55 715 80 1400 75 730 80 1400 110 714 80 1400 110 350 65 780
315M 75 970 100 2400 90 876 100 2400 132 857 100 2400 132 420
315 L 90 1170 110 1070 160 1030 160 513 80 1400
110 1420 132 1200 200 1290 200 641

The main use of nylon sleeve gear coupling is: forging, construction, mining, plastic, food, engineering, petroleum, chemical, machine tool, ship, leather, textile, fan, water pump and other industries of mechanical transmission.It has a significantly wider application range compared to other couplings.

Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems 0





To better satisfy special demands from customers, we can provide non-standard design, product invention, shafting torsional vibration calculation, simulation system testing and related professional software support. More than 40% of the employees in Reijay nowadays are professional engineers (including senior engineers) with bachelor’s degrees or above. At the same time, we are glad to have 8 senior product application engineers and development engineers (including a PhD in Machinery who studied in Germany before). Reijay has established cooperation with many well-known universities and research institutes in dynamic simulation analysis, motion, shock, dynamics, vibration, strength, and other reliability tests. Furthermore, Reijay also cooperates with some research institutes enterprises in development partnerships and industrial and mining application tests.

Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems 1

Our warehouse

Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems 2

Our team

Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems 3

Our exhibition



Reijay has a better understanding of the Chinese market throughout nearly 20 years of direct sales marketing system. By directly facing the needs of terminal users in product design selection, prototype verification, assembly production, market application, sharing of technical knowledge with German and American companies, we owned plenty of unique application experience which allow us to face harsh external environments. According to market demand and finding customer’s demands, Reijay technical department operates strictly under the internal quality management system (ISO9001 and IATF16949 internal quality system specifications). We develop new products and continuously improve to help customers solve problems. Welcome to contact us!



Our strategic partners

Nylon Sleeve Gear Couplings For Construction Machinery Hydraulic Systems 4

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.







FAQ



Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.



Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment



Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters



Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.



Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.



Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.



Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.



Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
