Corrosion Resistant Internal Combustion Engine Couplings For Hydraulic Pumps
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Hardness Corrosion Resistant | Application | Hydraulic Pumps |
|---|---|---|---|
| Applicable Working Conditions | Internal Combustion Engines | Advantage | High Bearing Capacity |
| Coupling Type | Flexible Coupling | Bore Type | According To Your Need |
| Rated Torque | 350-5000N.m | Service Life | 2 Years |
| Product Name | Internal Combustion Engines Coupling | Other | Welcom To Contact Us |
| Highlight | Internal Combustion Engine Couplings,High Hardness Engine Couplings,Corrosion Resistant Hydraulic Pump Coupling |
||
Product Description

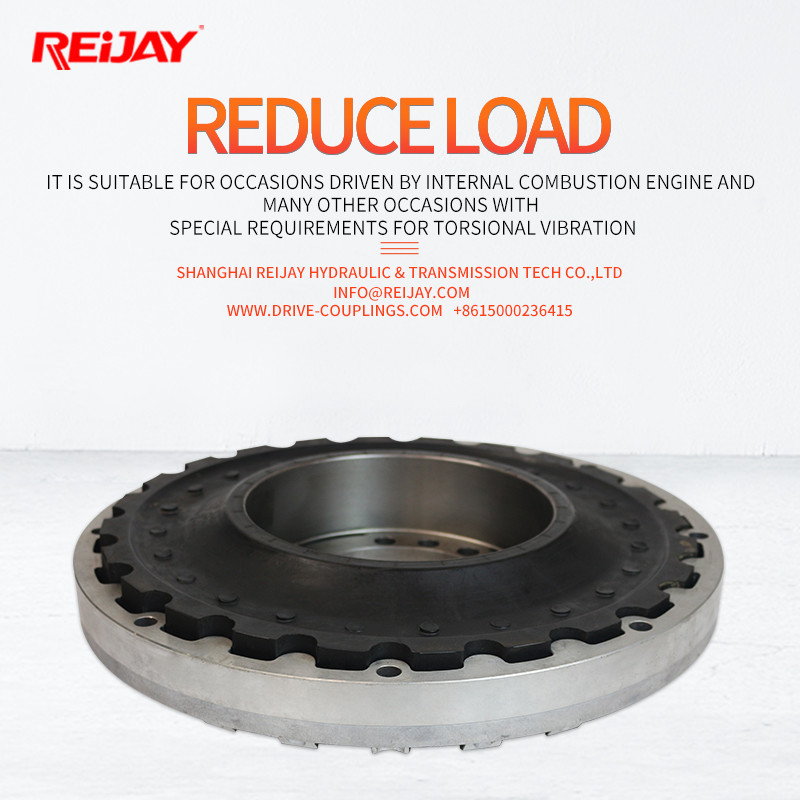

High hardness Corrosion resistant internal combustion engines Couplings for hydraulic pumps
Rubber Coupling is a kind of torsional high elastic coupling, which is applicable to the power transmission device with diesel engine and motor as the main power. Its structure is mainly composed of damping ring assembly, elastic plate and connecting pieces at the driving and driven ends, which can effectively compensate the radial, angular and axial displacement of adjacent machinery, absorb vibration and reduce resonance speed, so as to improve the torsional characteristics of shafting and extend the maintenance cycle and service life of equipment.
Technical Specifications
| Size | rated torque Nm | max rotary speed | Bore | weight F(FFR) KG | OAL f(FFR) mm | LTB mm | LTB1 mm | BSEF (FFR) | ADF (FFR) mm | FD mm | D mm | HD mm | parallel misalignment mm | max angular misalignment | ||||
| Non dynamic balance RPM | dynamic balance RPM | ID 1 | ID 2 | |||||||||||||||
| max bore | finishe d mm |
max bore | finishe d mm |
|||||||||||||||
| 1 | 850 | 6000 | 9000 | 42 | 11 | 56 | Solid | 4⑷ | 89(87) | 43 | 40 | 3(4) | 52(56) | 116 | 78 | 59 | 1.4 | 1.5° each bite |
| 1.5 | 2140 | 5000 | 8250 | 56 | 18 | 76 | 9(8) | 102(100) | 49 | 47 | 3(4) | 59(63) | 152 | 101 | 76 | 1.5 | ||
| 2 | 3560 | 5000 | 7500 | 73 | 24 | 95 | 15(15) | 127(124) | 62 | 58 | 3(4) | 75(79) | 178 | 123 | 102 | 2.2 | ||
| 2.5 | 6410 | 4400 | 6600 | 85 | 37 | 114 | 25(25) | 159(156) | 77 | 74 | 5(5) | 88(93) | 213 | 148 | 118 | 2.7 | ||
| 3 | 10700 | 4000 | 6000 | 107 | 37 | 134 | 36(39) | 187(183) | 91 | 87 | 5(5) | 101(105) | 240 | 174 | 143 | 2.9 | ||
| 3.5 | 17100 | 3500 | 5250 | 125 | 46 | 150 | 59(61) | 219(213) | 106 | 101 | 6(6) | 116(121) | 279 | 201 | 165 | 3.3 | ||
| 4 | 24900 | 3000 | 4500 | 145 | 62 | 176 | 86(89) | 248(241) | 121 | 113 | 6(8) | 127(135) | 318 | 235 | 191 | 3.8 | ||
| 4.5 | 34200 | 2700 | 4050 | 165 | 76 | 202 | 114(112) | 278(272) | 135 | 128 | 8(9) | 140(152) | 346 | 264 | 216 | 4.4 | ||
| 5 | 41900 | 2500 | 3750 | 180 | 76 | 230 | 101 | 173(179) | 314(306) | 153 | 145 | 8(9) | 161(170) | 389 | 294 | 241 | 5.1 | |
| 5.5 | 64800 | 2200 | 3300 | 200 | 101 | 260 | 114 | 236(239) | 359(241) | 176 | 156 | 8(9) | 179(186) | 425 | 323 | 267 | 5.6 | |
| 6 | 84700 | 2100 | 3150 | 225 | 101 | 285 | 127 | 295(312) | 384(387) | 188 | 188 | 8(10) | 212(223) | 457 | 356 | 292 | 3 | |
| 7 | 113900 | 2000 | 3000 | 255 | 127 | 320 | 139 | 431(462) | 451(454) | 221 | 221 | 10(13) | 249(262) | 527 | 400 | 330 | 3.4 | |
| 8 | 149500 | 1900 | 2850 | 310 | 152 | 375 | 165 | 708(730) | 568(572) | 279 | 279 | 10(13) | 313(325) | 591 | 466 | 394 | 4.1 | |
| 9 | 206400 | 1800 | 2700 | 340 | 117 | 415 | 190 | 915(966) | 597(598) | 292 | 292 | 13(14) | 330(344) | 660 | 518 | 432 | 4.2 | |
Our Strategic Partners
Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.
FAQ
Q: Who are we?
We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.
Q: How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment
Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters
Q: What can you buy from us?
Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.
Q: Why should you buy from us, not from other suppliers?
We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.
Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.
Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.
Q: What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken: English, Chinese, Spanish
