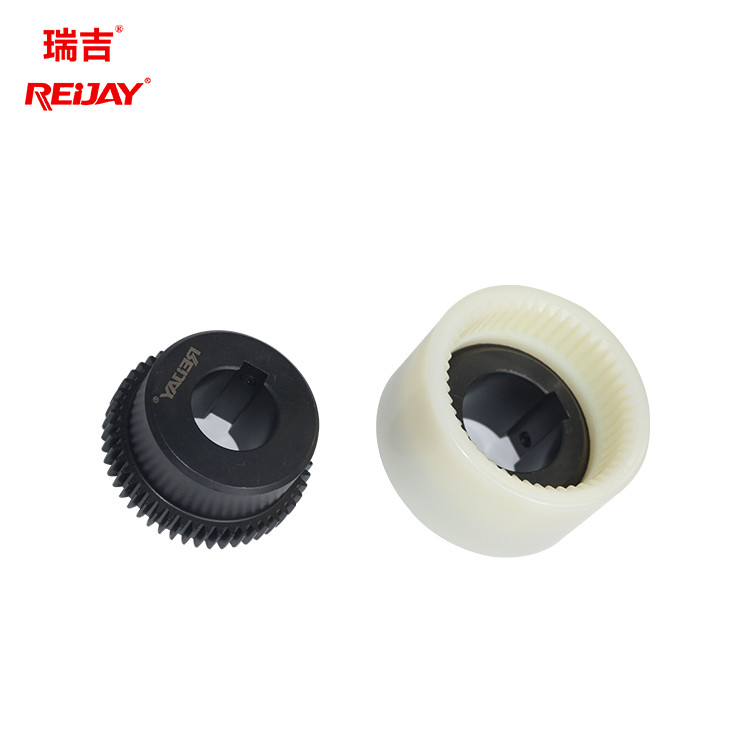

Low Noise And Unlubricated Nylon Sleeve Gear Coupling For Fan Lubrication Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Nylon Sleeve Coupling | Warranty | 2 Years |
---|---|---|---|
Customize | Support | Application | Fan Pump Lubrication Pump |
Advantage | Low-noise And Non-lubricated | Packaging Type | Wooden Case |
High Light | Unlubricated Nylon Sleeve Gear Coupling,Low Noise Nylon Sleeve Gear Coupling,Nylon Sleeve Gear Fan Pump Coupling |
Easy maintenance Low loss of transmission efficiency Cylindrical Nylon Sleeve Gear Coupling
nylon sleeve gear coupling(dentex coupling) catalo...
The main uses of Nylon Sleeve Gear Coupling are: forging, construction, mining, plastics, food, engineering, petroleum, chemical, machine tools, ships, leather, textiles, fans, pumps and other industries machinery transmission. The use effect of the inner tooth elastic coupling is obviously better than that of couplings with other structures.
Nylon Sleeve Gear Couplings for lEC-standard motors:
Motor sixe |
WilteSfMift Dxl [mm] |
n=750 [1/min] Power P | Coupling | Tk max [Nm] | n = 1000 [1/min] Power P | Coupling | Tk max [Nm] | n = 1500 [1/min] Power P | Coupling | Tk max [Nm] | n=3000(1/min] PawwP | Coupling | Tk max [Nm] | |||||
1500 [1/mln] | 3000 [1/mm] | [kW] | TAN [Nm] | [kW] | TAN [Nm] | [kW] | TAN [Nm] | [kW] | TAN [Nm] | |||||||||
56 | 9x20 | 14 | 20 | 0.037 | 0.43 | 14 | 20 | 0.06 | 0.4 | 14 | 20 | 0.09 | 0.3 | 14 | 20 | |||
0.045 | 0.52 | 0.09 | 0.6 | 0.12 | 0.4 | |||||||||||||
63 | 11x23 | 14 | 20 | 0.06 | 0.7 | 14 | 20 | 0.12 | 0.9 | 14 | 20 | 0.18 | 0.6 | 14 | 20 | |||
0.09 | 1.1 | 0.18 | 1.2 | 0.25 | 0.9 | |||||||||||||
71 | 14x30 | 0.09 | 1.4 | 14 | 20 | 0.18 | 2 | 14 | 20 | 0.25 | 1 | 14 | 20 | 0.37 | 1.3 | 14 | 20 | |
0.12 | 1.8 | 0.25 | 2.8 | 0.37 | 2.5 | 0.55 | 1.9 | |||||||||||
80 | 19x40 | 0.18 | 2.5 | 19 | 32 | 0.37 | 3.7 | 19 | 32 | 0.55 | 3.7 | 19 | 32 | 0.75 | 2.5 | 19 | 32 | |
0.25 | 3.5 | 0.55 | 5.5 | 0.75 | 5 | 1.1 | 3.7 | |||||||||||
90S | 24x50 | 0.37 | 5.3 | 24 | 40 | 0.75 | 7.9 | 24 | 40 | 1.1 | 7.5 | 24 | 40 | 1.5 | 4.9 | 24 | 40 | |
90L | 0.55 | 7.9 | 1.1 | 11 | 1.5 | 10 | 2.2 | 7.4 | ||||||||||
100 L | 28x60 | 0.75 | 11 | 28 | 90 | 1.5 | 15 | 28 | 90 | 2.2 | 15 | 28 | 90 | 3 | 9.8 | 28 | 90 | |
1.1 | 16 | 3 | 20 | 4 | 13 | |||||||||||||
112M | 28x60 | 1.50 | 21 | 28 | 90 | 2.2 | 22 | 28 | 90 | 4 | 27 | 28 | 90 | 4 | 13 | 28 | 90 | |
132 S | 38x80 | 2.20 | 29 | 38 | 160 | 3 | 30 | 38 | 160 | 5.5 | 36 | 38 | 160 | 5.5 | 18 | 38 | 160 | |
7.5 | 25 | |||||||||||||||||
132 M | 3 | 40 | 4 | 39 | 7.5 | 49 | ||||||||||||
5.5 | 55 | |||||||||||||||||
160M | 42x110 | 4 | 54 | 42 | 200 | 7.5 | 74 | 42 | 200 | 11 | 72 | 42 | 200 | 11 | 35 | 42 | 200 | |
5.50 | 74 | 15 | 49 | |||||||||||||||
160 L | 7.50 | 100 | 11 | 108 | 15 | 98 | 18.5 | 60 | ||||||||||
180M | 48x110 | 48 | 280 | 48 | 280 | 18.5 | 121 | 48 | 280 | 22 | 72 | 48 | 280 | |||||
180 L | 11 | 147 | 15 | 147 | 22 | 144 | ||||||||||||
200L | 55x110 | 15 | 196 | 55 | 500 | 18.5 | 185 | 55 | 500 | 30 | 195 | 55 | 500 | 30 | 97 | 55 | 500 | |
22 | 215 | 37 | 117 | |||||||||||||||
225 S | 60x140 | 55x110 | 18.50 | 245 | 65 | 780 | 65 | 780 | 37 | 245 | 65 | 780 | 55 | 500 | ||||
225 M | 22 | 294 | 30 | 292 | 45 | 294 | 45 | 146 | ||||||||||
250 M | 65x140 | 60x140 | 30 | 390 | 65 | 780 | 37 | 361 | 65 | 780 | 55 | 357 | 65 | 780 | 55 | 176 | 65 | 780 |
280S | 75x140 | 65x140 | 37 | 490 | 80 | 1400 | 45 | 440 | 80 | 1400 | 75 | 487 | 80 | 1400 | 75 | 245 | 65 | 780 |
280 M | 45 | 585 | 55 | 536 | 90 | 584 | 90 | 294 | ||||||||||
315 S | 80x170 | 65x140 | 55 | 715 | 80 | 1400 | 75 | 730 | 80 | 1400 | 110 | 714 | 80 | 1400 | 110 | 350 | 65 | 780 |
315M | 75 | 970 | 100 | 2400 | 90 | 876 | 100 | 2400 | 132 | 857 | 100 | 2400 | 132 | 420 | ||||
315 L | 90 | 1170 | 110 | 1070 | 160 | 1030 | 160 | 513 | 80 | 1400 | ||||||||
110 | 1420 | 132 | 1200 | 200 | 1290 | 200 | 641 |
