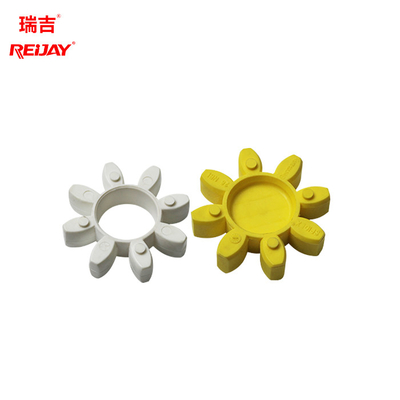

OEM Polyurethane Coupling Elastomers Jaw Rubber Coupling Spider

  • OEM Polyurethane Coupling Elastomers Jaw Rubber Coupling Spider
  • OEM Polyurethane Coupling Elastomers Jaw Rubber Coupling Spider
  • OEM Polyurethane Coupling Elastomers Jaw Rubber Coupling Spider
  • OEM Polyurethane Coupling Elastomers Jaw Rubber Coupling Spider
Place of Origin China
Brand Name REIJAY
Certification ISO CE
Model Number SPIDER
Minimum Order Quantity 1 set
Price USD10.00-USD50.00
Packaging Details Yes
Delivery Time 7 days
Payment Terms T/T, D/P, Western Union
Supply Ability 500 sets/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material High-strength Polyurethane Product Name Flexible Jaw Coupling
Weight 10g Certification ISO 9001
Service OEM Service Size Various Specifications
Feature Load Capacity And Easy Maintenance
High Light

Polyurethane Coupling Elastomers

,

OEM Coupling Elastomers

,

Jaw Rubber Coupling Spider
Leave a Message
Product Description

Elastomers for Flexible Jaw Coupling with High Load Capacity and Easy Maintenance



      The Flexible Jaw Coupling is to install an integral plum-shaped elastomer between the claws of two half-couplings with the same shape to realise the connection of the two half-couplings. Therefore, the elastomer of the Flexible Jaw Coupling plays a crucial role in its performance.



      The elastomer of the Flexible Jaw Coupling is approximately plum blossom shape, which can compensate for the displacement deviation of part of the two shafts. It has the function of vibration reduction at the same time.







Technical Specifications



Spider Size

Torque

[Nm]

Max. rotation n [l/min]

 Torsional angle

Torsional stress Cdyn

[Nm/rad]

 Relatively damping
Contln, tkn max. Alternat. tkw v=30 m/s

v=40

m/s

 Tkn Tkmax. 1.00Tkn 0.75Tkn 0.5Tkn 0.25Tkn









80° Shore
Colour: Blue
Scale A









 14/16+15 4 8 1 19000 　 6.4° 10° 　 　 　 　

0.85
19/24 4.9 9.7 1.3 14000 19000



3.2°





5°



 0.25×103 0.21×103 0.17×103 0.11×103
24/32 17 34 4.4 10600 14000 0.90×103 0.75×103 0.60×103 0.40×103
28/38 46 92 12 8500 11800 230×103 1.93×103 1.52×103 1.03×103
38/45 93 185 24 7100 9500 4.10×103 3.45×103 2.75×103 1.85×103
42/55 130 260 34 6000 8000 5.90×103 5.05×103 4.00×103 2.70×103
48/60 150 300 39 5600 7100 8.00×103 6.81×103 5.30×103 3.60×103
55/70 180 360 47 4750 6300 9.95×103 8.45×103 6.71×103 4.50×103
65/75 205 410 53 4250 5600 13.05×103 11.08×103 8.79×103 5.89×103
75/90 475 950 124 3550 4750 22.00×103 18.44×103 14.65×103 9.85×103
90/100 1175 2350 306 2800 3750 45.00×103 38.20×103 30.05×103 20.00×103
100/110 1610 3220 419 2500 3350 75.69×103 64.00×103 50.20×103 34.00×103
110/125 1950 3900 507 2240 3000 100.00×103 84.00×103 67.00×103 45.00×103
125/145 2440 4880 634 2000 2650 140.00×103 118.00×103 94.00×103 63.06×103

92° Shore
　Colour: White
Scale A



 14/16,15 7.5 15 2.0 19000 　 6.4° 10° 0.38×103 0.31×103 0.24×103 0.14×103 0.75
19/24 10 20 2.6 14000 19000 3.2°
　		 5°
　		 1.28×103 1.05×103 0.80×103 0.47×103 　
24/32 35 70 9.1 10600 14000 4.86×103 3.98×103 3.01×103 1.79×103 　
28/38 95 190 25 8500 11800 10.90×103 8.94×103 6.76×103 4.01×103 　
38/45 190 380 49 7100 9500 21.05×103 17.26×103 13.05×103 7.74×103 　
42/55 265 530 69 6000 8000 23.74×103 19.47×103 14.72×103 8.73×103 　
48/60 310 620 81 5600 7100 36.70×103 30.09×103 22.75×103 13.49×103 　
55/70 410 820 107 4750 6300 50.72×103 41.59×103 31.45×103 18.64×103 　
65/75 625 1250 163 4250 5600 97.13×103 79.65×103 60.22×103 35.70×103 　
75/90 1280 2560 333 3550 4750 113.32×103 92.92×103 70.26×103 41.65×103 　
90/100 2400 4800 624 2800 3750 190.09×103 155.87×103 117.86×103 69.86×103 　
100/110 3300 6600 858 2500 3350 253.08×103 207.53×103 156.91×103 93.01×103 　
110/125 4800 9600 1248 2240 3000 311.61×103 255.52×103 193.20×103 114.52×103 　
125/145 6650 13300 1729 2000 2650 474.86×103 389.39×103 294.41×103 174.51×103 　

98° Shore

Colour: Red
Scale A

 14/16+15 12.5 25 3.3 19000 　 6.4° 10°　 0.56×103 0.46×103 035×103 0.21×103 0.7
19/24 17 34 4.4 14000 19000 3.2°


5°



 2.92×103 2.39×103 131×103 1.07×103
24/32 60 120 16 10600 14000 9.93×103 8.14×103 6.16×103 3.65×103
28/38 160 320 42 8500 11800 26.77×103 21.95×103 16.60×103 9.84×103
38/45 325 650 85 7100 9500 4S.57×103 39.83×103 30.11×103 17.85×103
42/55 450 900 117 6000 8000 54.50×103 44.69×103 33.79×103 20.03×103
48/60 525 1050 137 5600 7100 65.29×103 53.54×103 40.48×103 24.00×103
55/70 685 1370 178 4750 6300 94.97×103 77.88×103 58.88×103 34.90×103

95° Shore

Colour: Red

Scale A

 65/75 940 1880 244 4250 5600 3.2° 5° 129.51×103 106.20×103 80.30×103 47.60×103 0.7
75/90 1920 3840 499 3550 4750 197.50×103 161.95×103 122.45×103 72.58×103
90/100 3600 7200 936 2800 3750 312.20×103 256.00×103 193.56×103 114.73×103
100/110 4950 9900 1287 2500 3350 383.26×103 314.27×103 237.62×103 140.85×103
100/125 7200 14400 1872 2240 3000 690.06×103 565.85×103 427.84×103 253.60×103
125/145 10000 20000 2600 2000 2650 1343.64×103 1101.79×103 833.06×103 493.79×103

64° Shore

Colour: Green
Scale D

 24/32 75 150 19.5 10600 14000 2.5° 3.6° 15.11×103 12.39×103 9.37×103 5.55×103 0.6
28/38 200 400 52 8500 11800 27.52×103 22.57×103 17.06×103 10.12×103
38/45 405 810 105 7100 9500 70.15×103 57.52×103 43.49×103 25.78×103
42/55 560 1120 146 6000 8000 79.86×103 65.49×103 49.52×103 29.35×103
48/60 655 1310 170 5600 7100 95.51×103 78.32×103 59.22×103 35.10×103
55/70 825 1650 215 4750 6300 107.52×103 88.50×103 66.91×103 39.66×103
65/75 1175 2350 306 4250 5600 151.09×103 123.90×103 93.68×103 55.53×103
75/90 2400 4800 624 3550 4750 248.22 X103 203.54×103 153.90×103 91.22×103
90/100 4500 9000 1170 2800 3750 674.52×103 553.11×103 418.20×103 247.89×103



OEM Polyurethane Coupling Elastomers Jaw Rubber Coupling Spider 0

Our Strategic Partners

OEM Polyurethane Coupling Elastomers Jaw Rubber Coupling Spider 1

      Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.
