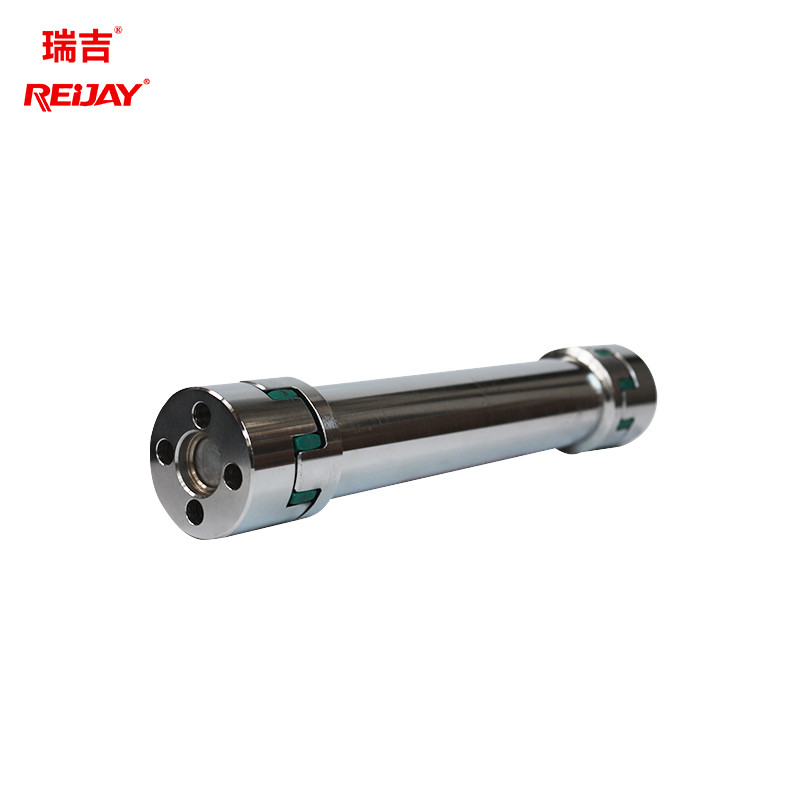

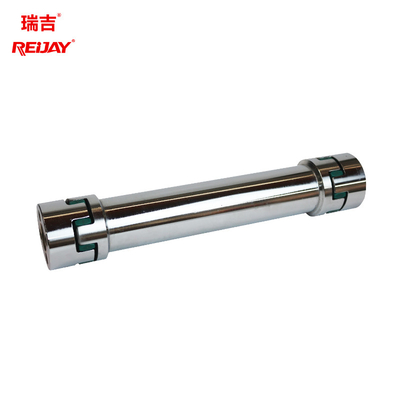

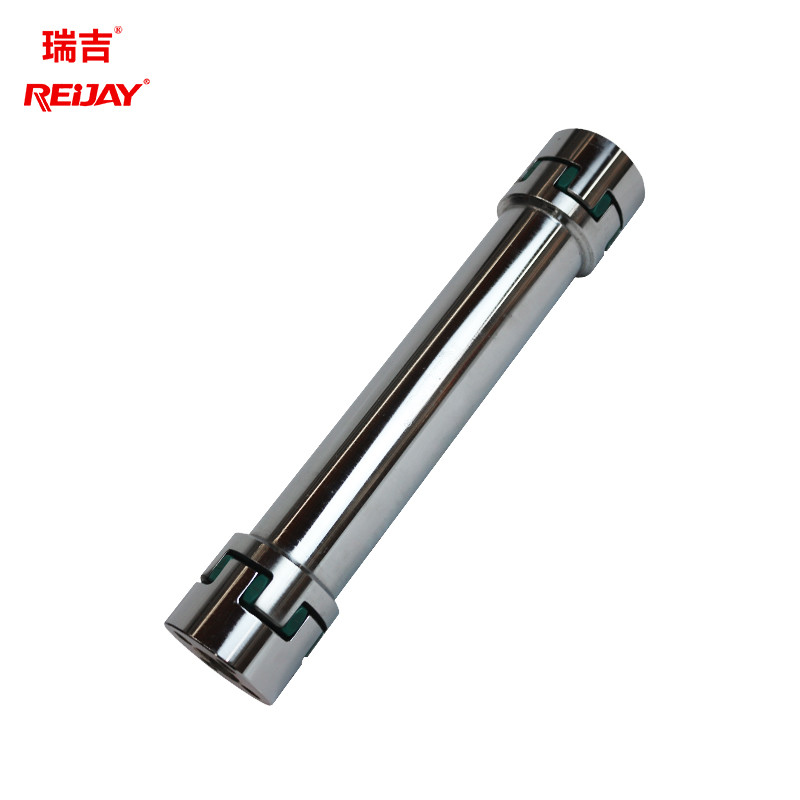

Misalignment Flexible Jaw Coupling Compensation Hydraulic Pump Coupler 1000g
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | According To Your Request | Product Name | Flexible Jaw Coupling |
|---|---|---|---|
| Weight | 1000g | Certification | ISO 9001 |
| Service | OEM Service | Size | Different Size Available Upon Request |
| Body Material | GG/St/Si Etc | Feature | Load Capacity And Easy Maintenance |
| High Light | Misalignment Flexible Jaw Coupling,Compensation Flexible Jaw Coupling,Hydraulic Pump Coupler 1000g |
||
Product Description
Compensation for misalignment and application of Universal Flexible Jaw Coupling
Flexible Jaw Coupling suits the transmission shaft system connecting two coaxial lines. It has the performance of compensating for the relative offset of the two shafts, buffering, shock absorption and wear resistance, and is suitable for common occasions.
The polyurethane elastomer is limited by the convex claw block, which can avoid the internal deformation caused by impact and the external deformation caused by centrifugal force; the large concave surface of the convex claw makes the surface pressure on the involute tooth very small, even if the tooth is overloaded, the teeth will still not wear or deform.
Technical Specifications
| Type | Bans |
Dimensions [mm] |
Weight |
Special hub length |
||||||||||||||||
| Finish bores | L1 + | |||||||||||||||||||
| HubA | HubB | |||||||||||||||||||
| min. | max. | min. | max. | A | B | Ba | L | L2 | E | s | b | C | C1 | dh | g | f | H* | [kg] | [mm] | |
| Material: Die-cast Aluminium | ||||||||||||||||||||
| A15 | 4 | 15 | 26 | 26 | 28 | 10 | 8 | 1 | 6 | 12 | M5 | 5 | 8 | 0.025 | ||||||
| Al 9/24 | 6 | 19 | 19 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 0.13 | 55 |
| A24/32 | 8 | 24 | 16 | 32 | 55 | 40 | 53 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 026 | 60 |
| A28/38 | 10 | 28 | 28 | 38 | 65 | 48 | 63 | 90 | 35 | 20 | 2.5 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 0.46 | 60 |
| A38/45 | 14 | 38 | 38 | 45 | 80 | 66 | 79 | 114 | 45 | 24 | 3 | 18 | 37 | 39 | 38 | M8 | 15 | 19 | 0.90 | 70 |
| Material: Castimn (GG), SG iron (GGG), Steel (St), Sintered steel (Si) | ||||||||||||||||||||
| A14/16 Sint | 4 | 16 | 30 | 30 | 35 | 11 | 13 | 15 | 10 | 10 | M4 | 5 | 12 | 0.14 | 185 | |||||
| A19/24 GG/St/Si | 6 | 19 | 12 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 035 | 55 |
| A24/32 GG/St/SI | 10 | 24 | 14 | 32 | 55 | 40 | 52 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 1.0 | 60 |
| A28/38 GG/St/Si | 12 | 28 | 28 | 38 | 65 | 45 | 62 | 90 | 35 | 20 | 25 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 1-6 | 80 |
| A38/45 GG/GGG/SVSi | 14 | 38 | 38 | 45 | 80 | 66 | 77 | 114 | 45 | 24 | 3 | 18 | 37 | 37 | 38 | M8 | 15 | 19 | 023 | 110 |
| A42/55 GG/GGG/St | 19 | 42 | 42 | 55 | 95 | 75 | 94 | 126 | 50 | 26 | 3 | 20 | 40 | 40 | 46 | M8 | 20 | 21 | 3.6 | no |
| A48/60 GG/GGG/St | 19 | 48 | 48 | 60 | 105 | 85 | 102 | 140 | 56 | 28 | 3.5 | 21 | 45 | 45 | 51 | M8 | 20 | 22 | 4.8 | no |
| A55/70 GG/GGG/St | 19 | 55 | 55 | 70 | 120 | 98 | 118 | 160 | 65 | 30 | 4 | 22 | 52 | 52 | 60 | M10 | 20 | 23 | 7.4 | 140 |
| A65/75 GG/GGG/St | 22 | 65 | 65 | 75 | 135 | 115 | 132 | 185 | 75 | 35 | 4.5 | 26 | 61 | 59 | 68 | M10 | 20 | 27 | 10.9 | 140 |
| A75/90 GG/GGG/St | 30 | 75 | 75 | 90 | 160 | 135 | 158 | 210 | 85 | 40 | 5 | 30 | 69 | 65 | 80 | M10 | 25 | 31 | 177 | 195 |
| A90/100 GG/GGG/St | 40 | 90 | 90 | 100 | 200 | 160 | 180 | 245 | 100 | 45 | 5.5 | 34 | 81 | 81 | 100 | MIO | 25 | 35 | 29.5 | 140/210 |
| A100/110 GG/GGG/St | 55 | 110 | 225 | 200 | 270 | 110 | 50 | 6 | 38 | 89 | 113 | M12 | 30 | 39 | 435 | |||||
| A110/125 GG/GGG/St | 65 | 125 | 255 | 230 | 295 | 120 | 55 | 6.5 | 42 | 96 | 127 | M16 | 35 | 43 | 063 | |||||
| A125/145 GG/GGG/St | 65 | 145 | 290 | 265 | 340 | 140 | 60 | 7 | 46 | 112 | 147 | M16 | 40 | 47 | 095 | |||||
