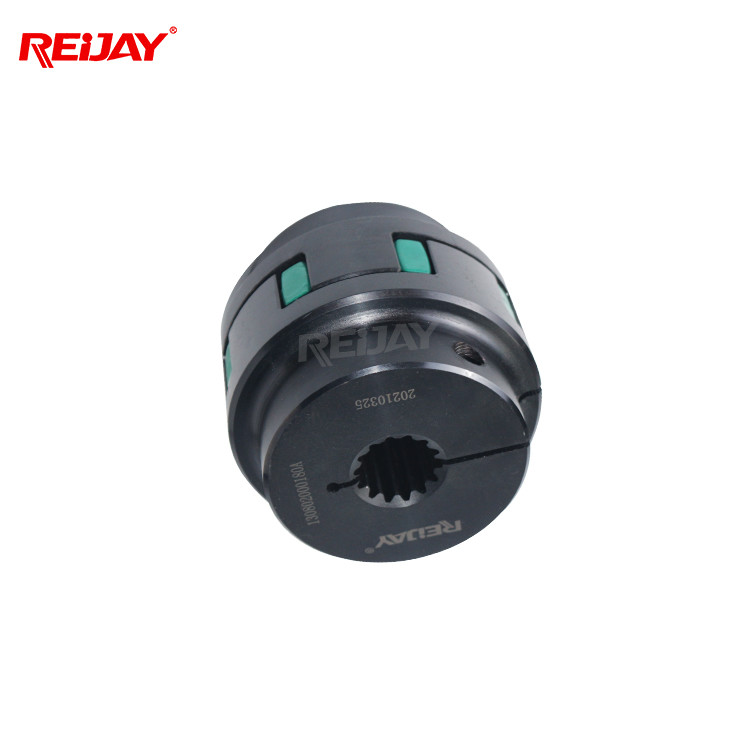

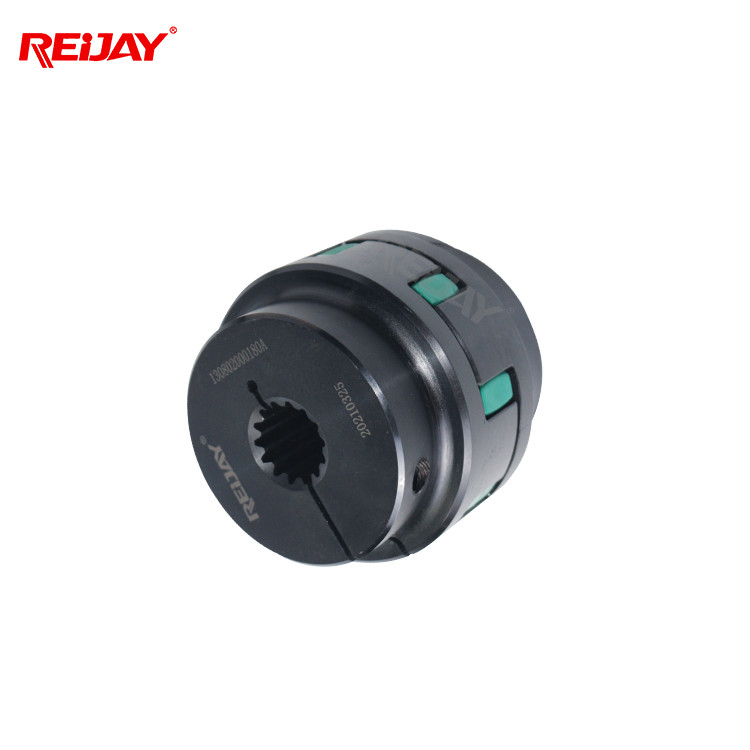

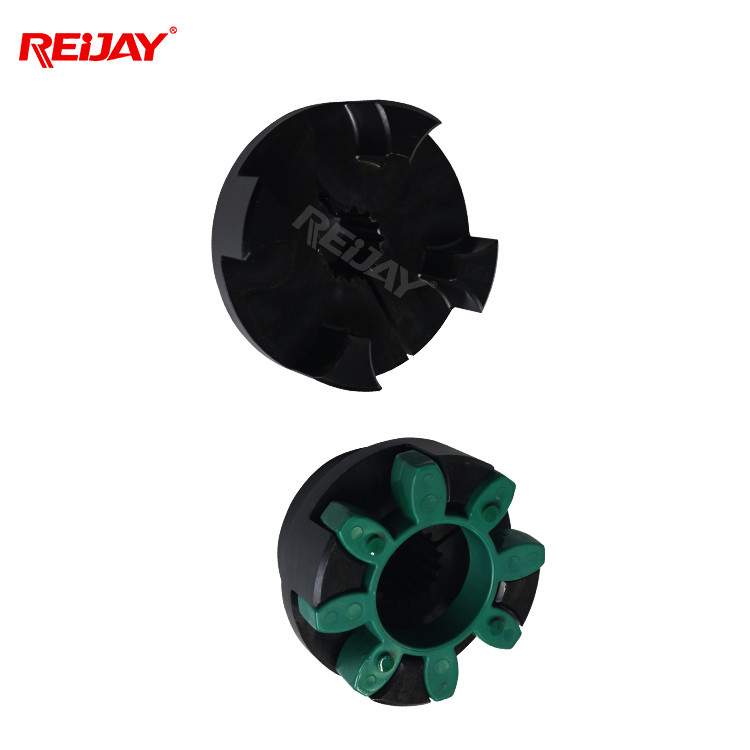

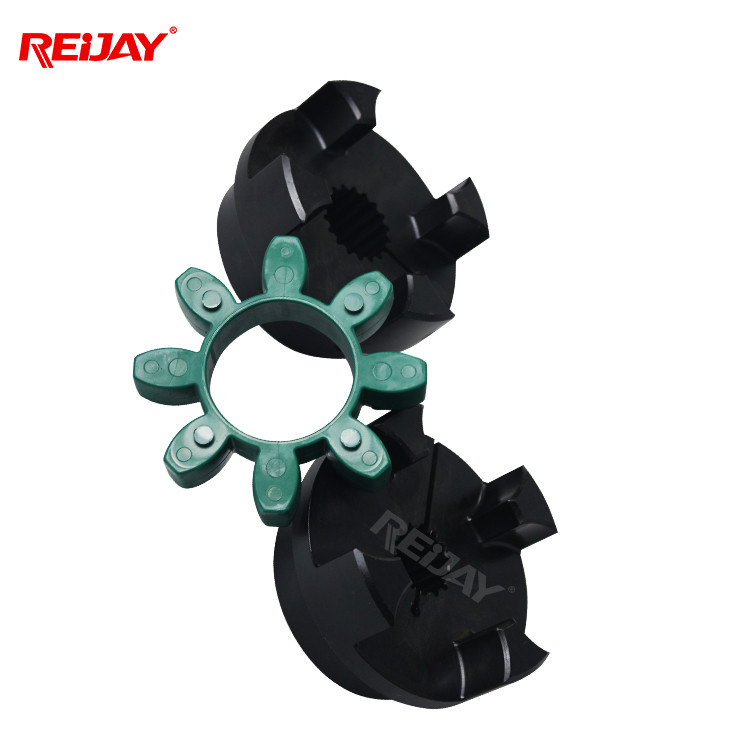

Hydraulic Flexible Jaw Coupling For Light Industrial Machinery

  • Hydraulic Flexible Jaw Coupling For Light Industrial Machinery
  • Hydraulic Flexible Jaw Coupling For Light Industrial Machinery
  • Hydraulic Flexible Jaw Coupling For Light Industrial Machinery
  • Hydraulic Flexible Jaw Coupling For Light Industrial Machinery
Place of Origin China
Brand Name REIJAY
Certification ISO CE
Model Number 55/70
Minimum Order Quantity 1set
Price USD10.00-USD50.00
Packaging Details Yes
Delivery Time 7 days
Payment Terms T/T, D/P, Western Union
Supply Ability 500 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum, Cast Iron And Steel Keywords Pline Shaft Coupling
Standard IEC Standard Motor And Nemo Motor Service OEM .ODM .Customized
Outside Diameter(D) 26mm ~ 420mm Hole Diameter(d) 4mm-200mm
Structure Jaw/Spider Warranty 2 Years
Packing Wooden Case Product Name Flexible Jaw Coupling
Brand Reijay
High Light

Hydraulic Jaw Type Flexible Coupling

,

Industrial Flexible Jaw Coupling

,

Light Machinery Flexible Shaft Coupling
Leave a Message
Product Description

Convenient Maintenance And Easy Disassembly Flexible Jaw Coupling For Light Industrial Machinery



Specifications of Flexible Jaw Coupling



Dimensions Max. Radial displacement ormax.angular displacement n=1500tnin-1 Torque(Nm) Dimensions Max radial displacement with 1°angular displacement and n=15001/mln Max axial displacement Hexagon screws
DIN933
8.8 or 10.9
Spec OD H LTB G S BSE OAL (ASPC) Tkn Tkmax F SL OAL ADSPC Screw Spec Screw Quartty Torque TA[Nm]
100 140 180 250
19 40 18 25 16 10 42 92 0.65 Each
Sleeve
Hub
1°30'		 　 　 　 　 　 　 　 　 　 　 　 　 　
24 55 27 30 18 16 52 112 0.89 35 70 8 52 BSE+60 1.4 　 　 　 1.4 M5 16 6
28 65 30 35 20 18 58 128 1 95 190 10 60 BSE+70 1.4 　 　 　 1.5 M6 16 14
38 80 38 45 24 20 68 158 1.15 190 380 10 68 BSE+90 1.3 2 　 　 1.8 M8 16 35
42 95 46 50 26 22 74 174 1.26 265 530 12 76 BSE+100 　 2 　 　 2 M8 16 35
48 105 61 56 28 24 80 192 1.36 310 620 12 80 BSE+112 　 2 　 　 2.1 M8 16 35
55 120 60 65 30 28 88 218 1.52 410 820 16 92 BSE+130 　 1.9 2.6 3.8 2.2 M10 8 69
65 135 68 75 35 32 102 252 1.75 625 1250 16 102 BSE+150 　 　 　 3.8 2.6 M10 12 69
75 160 80 85 40 36 116 286 2 1280 2560 19 118 BSE+170 　 　 2.4 3.7 3 M12 15 120
90 200 100 100 45 40 130 330 2.5 2400 4800 20 130 BSE+200 　 　 　 3.5 3.4 M16 15 295





Hydraulic Flexible Jaw Coupling For Light Industrial Machinery 0

Our Strategic Partners

Hydraulic Flexible Jaw Coupling For Light Industrial Machinery 1

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.



FAQ

Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.



Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment



Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters



Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.



Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.



Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.



Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
