Oil Resistance Electrical Insulation Flexible Jaw Coupling For Connecting Motor Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Steel | Product Name | Plum Coupling |
---|---|---|---|
Standard | IEC Standard Motor And Nemo Motor | Service | Customized |
Quotation | FOB, EXW And Other Methods | Advantage | Oil Resistance And Electrical Insulation |
Application | Textile Machine, Fans, Ventilators, Printing Machine | Warranty | 2.5years |
Packing | Plastic Bag+Carton+Wood Pallet/Standard Export Packing | ||
High Light | Electrical Insulation Spider Motor Coupling,Oil Resistance Flexible Jaw Coupling,Connecting Motor Pump Jaw Coupling |

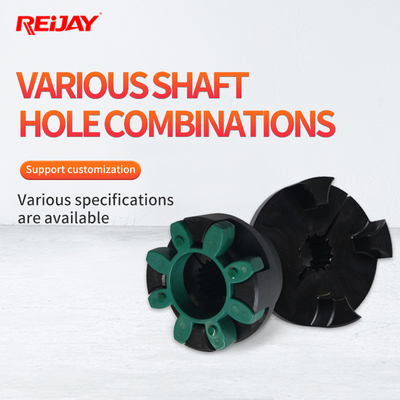

Oil resistance and electrical insulation Flexible Jaw Coupling used to connect the motor and the pump
Flexible Jaw Coupling is a very common application of the coupling, also called claw coupling, is composed of two metal claw plates and an elastomer.Two metal claw plates are generally 45 steel, but also useful aluminum alloy when the load is sensitive.
Technical Specifications
Type | Bans | Dimensions [mm] | Weight | Special Hub length | ||||||||||||||||
Finish bores | L1 + | |||||||||||||||||||
HubA | HubB | |||||||||||||||||||
mln | max | min | max | A | B | Ba | L | L2 | E | s | b | C | C1 | dh | g | f | H* | [kg] | [mm] | |
Material: Die cast Aluminium | ||||||||||||||||||||
A15 | 4 | 15 | 26 | 26 | 28 | 10 | 8 | 1 | 6 | 12 | M5 | 5 | 8 | 0.025 | ||||||
Al 9/24 | 6 | 19 | 19 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 0.13 | 55 |
A24/32 | 8 | 24 | 16 | 32 | 55 | 40 | 53 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 026 | 60 |
A28/38 | 10 | 28 | 28 | 38 | 65 | 48 | 63 | 90 | 35 | 20 | 2.5 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 0.46 | 60 |
A38/45 | 14 | 38 | 38 | 45 | 80 | 66 | 79 | 114 | 45 | 24 | 3 | 18 | 37 | 39 | 38 | M8 | 15 | 19 | 0.90 | 70 |
Material: Castimn (GG), SG Iron (GGG), Steel (St), Sintered steel (Si) | ||||||||||||||||||||
A14/16 Sint | 4 | 16 | 30 | 30 | 35 | 11 | 13 | 15 | 10 | 10 | M4 | 5 | 12 | 0.14 | 185 | |||||
A19/24 GG/St/Si | 6 | 19 | 12 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 035 | 55 |
A24/32 GG/St/SI | 10 | 24 | 14 | 32 | 55 | 40 | 52 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 1.0 | 60 |
A28/38 GG/St/Si | 12 | 28 | 28 | 38 | 65 | 45 | 62 | 90 | 35 | 20 | 25 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 1-6 | 80 |
A38/45 GG/GGG/SVSi | 14 | 38 | 38 | 45 | 80 | 66 | 77 | 114 | 45 | 24 | 3 | 18 | 37 | 37 | 38 | M8 | 15 | 19 | 023 | 110 |
A42/55 GG/GGG/St | 19 | 42 | 42 | 55 | 95 | 75 | 94 | 126 | 50 | 26 | 3 | 20 | 40 | 40 | 46 | M8 | 20 | 21 | 3.6 | no |
A48/60 GG/GGG/St | 19 | 48 | 48 | 60 | 105 | 85 | 102 | 140 | 56 | 28 | 3.5 | 21 | 45 | 45 | 51 | M8 | 20 | 22 | 4.8 | no |
A55/70 GG/GGG/St | 19 | 55 | 55 | 70 | 120 | 98 | 118 | 160 | 65 | 30 | 4 | 22 | 52 | 52 | 60 | M10 | 20 | 23 | 7.4 | 140 |
A65/75 GG/GGG/St | 22 | 65 | 65 | 75 | 135 | 115 | 132 | 185 | 75 | 35 | 4.5 | 26 | 61 | 59 | 68 | M10 | 20 | 27 | 10.9 | 140 |
A75/90 GG/GGG/St | 30 | 75 | 75 | 90 | 160 | 135 | 158 | 210 | 85 | 40 | 5 | 30 | 69 | 65 | 80 | M10 | 25 | 31 | 177 | 195 |
A90/100 GG/GGG/St | 40 | 90 | 90 | 100 | 200 | 160 | 180 | 245 | 100 | 45 | 5.5 | 34 | 81 | 81 | 100 | MIO | 25 | 35 | 29.5 | 140/210 |
A100/110 GG/GGG/St | 55 | 110 | 225 | 200 | 270 | 110 | 50 | 6 | 38 | 89 | 113 | M12 | 30 | 39 | 435 | |||||
A110/125 GG/GGG/St | 65 | 125 | 255 | 230 | 295 | 120 | 55 | 6.5 | 42 | 96 | 127 | M16 | 35 | 43 | 063 | |||||
A125/145 GG/GGG/St | 65 | 145 | 290 | 265 | 340 | 140 | 60 | 7 | 46 | 112 | 147 | M16 | 40 | 47 | 095 |
