Rexroth Replacement Flexible Jaw Coupling For Hydraulic Machinery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Jaw Coupling | Material | Alu, GG, St |
|---|---|---|---|
| Keywords | ROTEX Coupling Replacement | Standard | IEC Standard Motor And Nemo Motor |
| Quotation | FOB, EXW And Other Methods | Advantage | High-performance And Long-term |
| Application | Textile Machine, Fans, Ventilators, Printing Machine | Warranty | 2.5years |
| Packing | Plastic Bag+Carton+Wood Pallet/Standard Export Packing | Flexible Or Rigid | Flexible |
| High Light | Hydraulic Machinery Flexible Spider Coupling,Replacement Flexible Spider Shaft Coupling,Aluminium Flexible Jaw Coupling |
||
Product Description

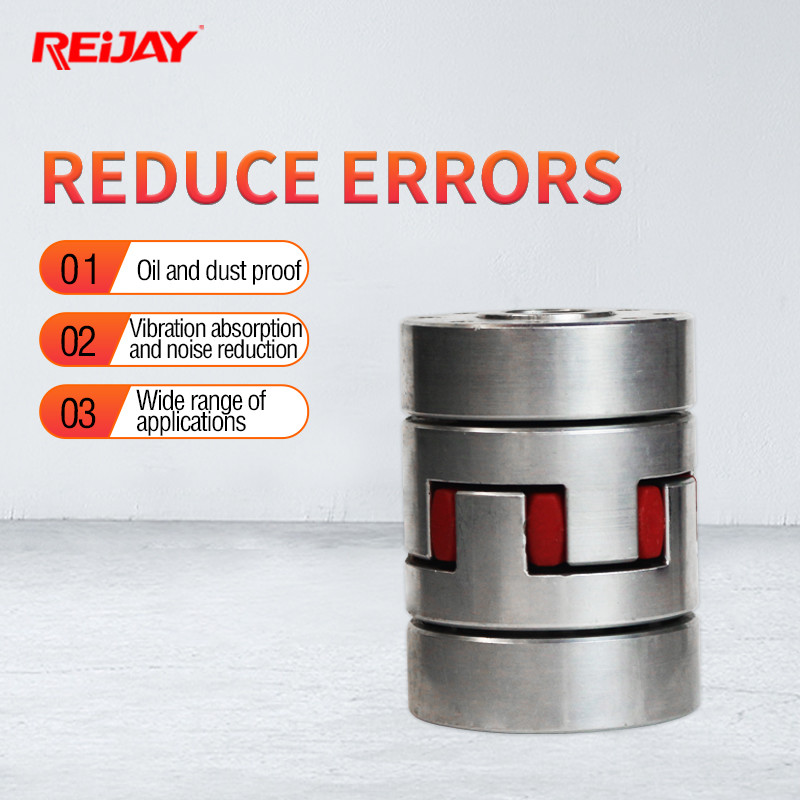

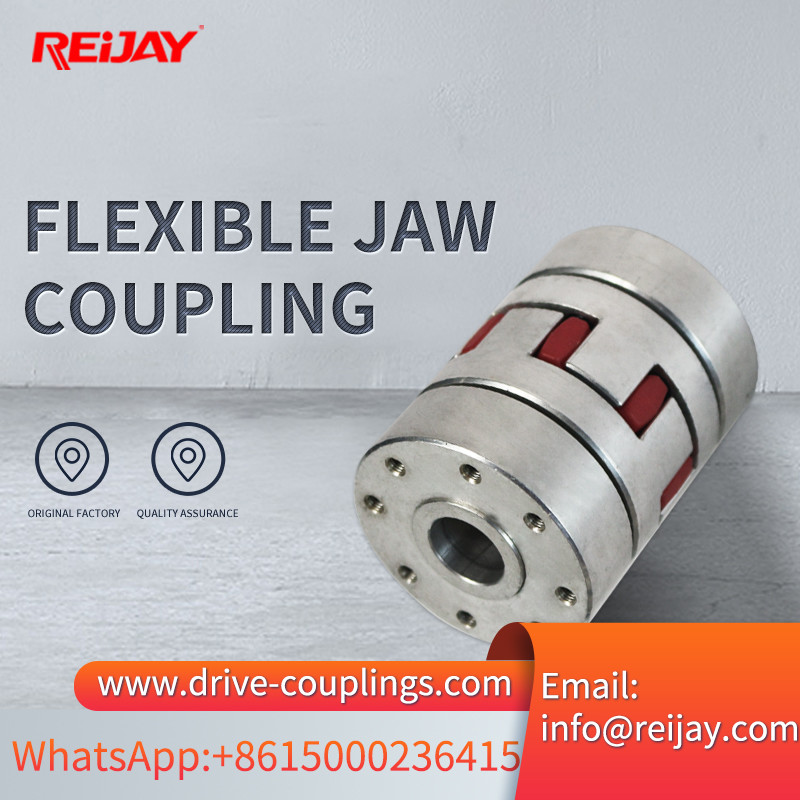

High Performance And Long Period Rexroth Coupling Replacement Flexible Jaw Coupling For Hydraulic Machinery
Rexroth Coupling Replacement Flexible Jaw Coupling can not only avoid various errors generated in the production process, but also meet and adapt to the high load operation capacity in different environments. It has ultra-high mechanical performance and service life in humid and hot environment and low temperature environment.
Technical Specifications
| Type | Bans | Dimensions [mm] | Weight | Special Hub length | ||||||||||||||||
| Finish bores | L1 + | |||||||||||||||||||
| HubA | HubB | |||||||||||||||||||
| mln | max | min | max | A | B | Ba | L | L2 | E | s | b | C | C1 | dh | g | f | H* | [kg] | [mm] | |
| Material: Die cast Aluminium | ||||||||||||||||||||
| A15 | 4 | 15 | 26 | 26 | 28 | 10 | 8 | 1 | 6 | 12 | M5 | 5 | 8 | 0.025 | ||||||
| Al 9/24 | 6 | 19 | 19 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 0.13 | 55 |
| A24/32 | 8 | 24 | 16 | 32 | 55 | 40 | 53 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 026 | 60 |
| A28/38 | 10 | 28 | 28 | 38 | 65 | 48 | 63 | 90 | 35 | 20 | 2.5 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 0.46 | 60 |
| A38/45 | 14 | 38 | 38 | 45 | 80 | 66 | 79 | 114 | 45 | 24 | 3 | 18 | 37 | 39 | 38 | M8 | 15 | 19 | 0.90 | 70 |
| Material: Castimn (GG), SG Iron (GGG), Steel (St), Sintered steel (Si) | ||||||||||||||||||||
| A14/16 Sint | 4 | 16 | 30 | 30 | 35 | 11 | 13 | 15 | 10 | 10 | M4 | 5 | 12 | 0.14 | 185 | |||||
| A19/24 GG/St/Si | 6 | 19 | 12 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 035 | 55 |
| A24/32 GG/St/SI | 10 | 24 | 14 | 32 | 55 | 40 | 52 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 1.0 | 60 |
| A28/38 GG/St/Si | 12 | 28 | 28 | 38 | 65 | 45 | 62 | 90 | 35 | 20 | 25 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 1-6 | 80 |
| A38/45 GG/GGG/SVSi | 14 | 38 | 38 | 45 | 80 | 66 | 77 | 114 | 45 | 24 | 3 | 18 | 37 | 37 | 38 | M8 | 15 | 19 | 023 | 110 |
| A42/55 GG/GGG/St | 19 | 42 | 42 | 55 | 95 | 75 | 94 | 126 | 50 | 26 | 3 | 20 | 40 | 40 | 46 | M8 | 20 | 21 | 3.6 | no |
| A48/60 GG/GGG/St | 19 | 48 | 48 | 60 | 105 | 85 | 102 | 140 | 56 | 28 | 3.5 | 21 | 45 | 45 | 51 | M8 | 20 | 22 | 4.8 | no |
| A55/70 GG/GGG/St | 19 | 55 | 55 | 70 | 120 | 98 | 118 | 160 | 65 | 30 | 4 | 22 | 52 | 52 | 60 | M10 | 20 | 23 | 7.4 | 140 |
| A65/75 GG/GGG/St | 22 | 65 | 65 | 75 | 135 | 115 | 132 | 185 | 75 | 35 | 4.5 | 26 | 61 | 59 | 68 | M10 | 20 | 27 | 10.9 | 140 |
| A75/90 GG/GGG/St | 30 | 75 | 75 | 90 | 160 | 135 | 158 | 210 | 85 | 40 | 5 | 30 | 69 | 65 | 80 | M10 | 25 | 31 | 177 | 195 |
| A90/100 GG/GGG/St | 40 | 90 | 90 | 100 | 200 | 160 | 180 | 245 | 100 | 45 | 5.5 | 34 | 81 | 81 | 100 | MIO | 25 | 35 | 29.5 | 140/210 |
| A100/110 GG/GGG/St | 55 | 110 | 225 | 200 | 270 | 110 | 50 | 6 | 38 | 89 | 113 | M12 | 30 | 39 | 435 | |||||
| A110/125 GG/GGG/St | 65 | 125 | 255 | 230 | 295 | 120 | 55 | 6.5 | 42 | 96 | 127 | M16 | 35 | 43 | 063 | |||||
| A125/145 GG/GGG/St | 65 | 145 | 290 | 265 | 340 | 140 | 60 | 7 | 46 | 112 | 147 | M16 | 40 | 47 | 095 | |
||||
Our Strategic Partners
Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.
FAQ
Q: Who are we?
We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.
Q: How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment
Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters
Q: What can you buy from us?
Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.
Q: Why should you buy from us, not from other suppliers?
We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.
Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.
Q: What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken: English, Chinese, Spanish
