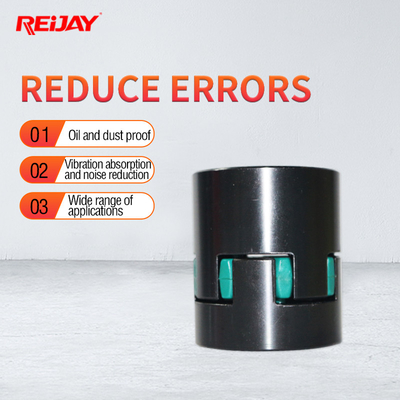

Replacement Flexible Jaw Coupling For Medium High Speed Occasions
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Jaw Coupling | Material | Alu, GG, St |
|---|---|---|---|
| Keywords | Rexroth Coupling Replacement | Quotation | FOB, EXW Etc. |
| Advantage | Convenient Maintenance And Easy Disassembly | Application | Medium And High Speed Occasions |
| Warranty | 2.5 Years | Packing | Wood Pallet/Case |
| Flexible Or Rigid | Flexible | Structure | Jaw / Spider |
| High Light | Medium Speed Occasions Flexible Jaw Coupling,Flexible Spider Coupling High Speed Occasions,Replacement Jaw Type Flexible Coupling |
||
Product Description
Convenient Maintenance And Easy Disassembly Flexible Jaw Coupling For Medium And High Speed Occasions
Like any coupling, Flexible Jaw Coupling is rated as maximum angle and parallel dislocation. Flexible Jaw Coupling, because the spider is essentially a wear element, it will last longer if the misalignment is minimized (and the efficiency of the transmission system will be optimized).
The specified Flexible Jaw Coupling needs to calculate the transmission torque, and then apply the multiplier provided by the manufacturer to evaluate the severity of the service, usually by machine type. The manufacturer usually has an online calculator to help the illustrator select the coupling.
Technical Specifications
| Type | Bans | Dimensions [mm] | Weight | Special Hub length | ||||||||||||||||
| Finish bores | L1 + | |||||||||||||||||||
| HubA | HubB | |||||||||||||||||||
| mln | max | min | max | A | B | Ba | L | L2 | E | s | b | C | C1 | dh | g | f | H* | [kg] | [mm] | |
| Material: Die cast Aluminium | ||||||||||||||||||||
| A15 | 4 | 15 | 26 | 26 | 28 | 10 | 8 | 1 | 6 | 12 | M5 | 5 | 8 | 0.025 | ||||||
| Al 9/24 | 6 | 19 | 19 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 0.13 | 55 |
| A24/32 | 8 | 24 | 16 | 32 | 55 | 40 | 53 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 026 | 60 |
| A28/38 | 10 | 28 | 28 | 38 | 65 | 48 | 63 | 90 | 35 | 20 | 2.5 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 0.46 | 60 |
| A38/45 | 14 | 38 | 38 | 45 | 80 | 66 | 79 | 114 | 45 | 24 | 3 | 18 | 37 | 39 | 38 | M8 | 15 | 19 | 0.90 | 70 |
| Material: Castimn (GG), SG Iron (GGG), Steel (St), Sintered steel (Si) | ||||||||||||||||||||
| A14/16 Sint | 4 | 16 | 30 | 30 | 35 | 11 | 13 | 15 | 10 | 10 | M4 | 5 | 12 | 0.14 | 185 | |||||
| A19/24 GG/St/Si | 6 | 19 | 12 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 035 | 55 |
| A24/32 GG/St/SI | 10 | 24 | 14 | 32 | 55 | 40 | 52 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 1.0 | 60 |
| A28/38 GG/St/Si | 12 | 28 | 28 | 38 | 65 | 45 | 62 | 90 | 35 | 20 | 25 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 1-6 | 80 |
| A38/45 GG/GGG/SVSi | 14 | 38 | 38 | 45 | 80 | 66 | 77 | 114 | 45 | 24 | 3 | 18 | 37 | 37 | 38 | M8 | 15 | 19 | 023 | 110 |
| A42/55 GG/GGG/St | 19 | 42 | 42 | 55 | 95 | 75 | 94 | 126 | 50 | 26 | 3 | 20 | 40 | 40 | 46 | M8 | 20 | 21 | 3.6 | no |
| A48/60 GG/GGG/St | 19 | 48 | 48 | 60 | 105 | 85 | 102 | 140 | 56 | 28 | 3.5 | 21 | 45 | 45 | 51 | M8 | 20 | 22 | 4.8 | no |
| A55/70 GG/GGG/St | 19 | 55 | 55 | 70 | 120 | 98 | 118 | 160 | 65 | 30 | 4 | 22 | 52 | 52 | 60 | M10 | 20 | 23 | 7.4 | 140 |
| A65/75 GG/GGG/St | 22 | 65 | 65 | 75 | 135 | 115 | 132 | 185 | 75 | 35 | 4.5 | 26 | 61 | 59 | 68 | M10 | 20 | 27 | 10.9 | 140 |
| A75/90 GG/GGG/St | 30 | 75 | 75 | 90 | 160 | 135 | 158 | 210 | 85 | 40 | 5 | 30 | 69 | 65 | 80 | M10 | 25 | 31 | 177 | 195 |
| A90/100 GG/GGG/St | 40 | 90 | 90 | 100 | 200 | 160 | 180 | 245 | 100 | 45 | 5.5 | 34 | 81 | 81 | 100 | MIO | 25 | 35 | 29.5 | 140/210 |
| A100/110 GG/GGG/St | 55 | 110 | 225 | 200 | 270 | 110 | 50 | 6 | 38 | 89 | 113 | M12 | 30 | 39 | 435 | |||||
| A110/125 GG/GGG/St | 65 | 125 | 255 | 230 | 295 | 120 | 55 | 6.5 | 42 | 96 | 127 | M16 | 35 | 43 | 063 | |||||
| A125/145 GG/GGG/St | 65 | 145 | 290 | 265 | 340 | 140 | 60 | 7 | 46 | 112 | 147 | M16 | 40 | 47 | 095 | |
||||
