Die Cast Aluminium Flexible Jaw Coupling For Blowers Compressors Mixers
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Flexible Jaw Coupling | Material | Alu, GG, St |
|---|---|---|---|
| Keywords | Jaw Coupling | Quotation | FOB, EXW Etc. |
| Advantage | Factory Direct Sales And Cost-effective | Application | Blowers Compressors Mixers |
| Warranty | 2.5 Years | Packing | Wood Case |
| Flexible Or Rigid | Flexible | Structure | Jaw / Spider |
| High Light | Blowers Flexible Spider Coupling,Flexible Spider Motor Coupling,Compressors Flexible Jaw Coupling |
||
Product Description
Factory Direct Sales and Cost-effective Flexible Jaw Coupling For Blowers Compressors Mixers

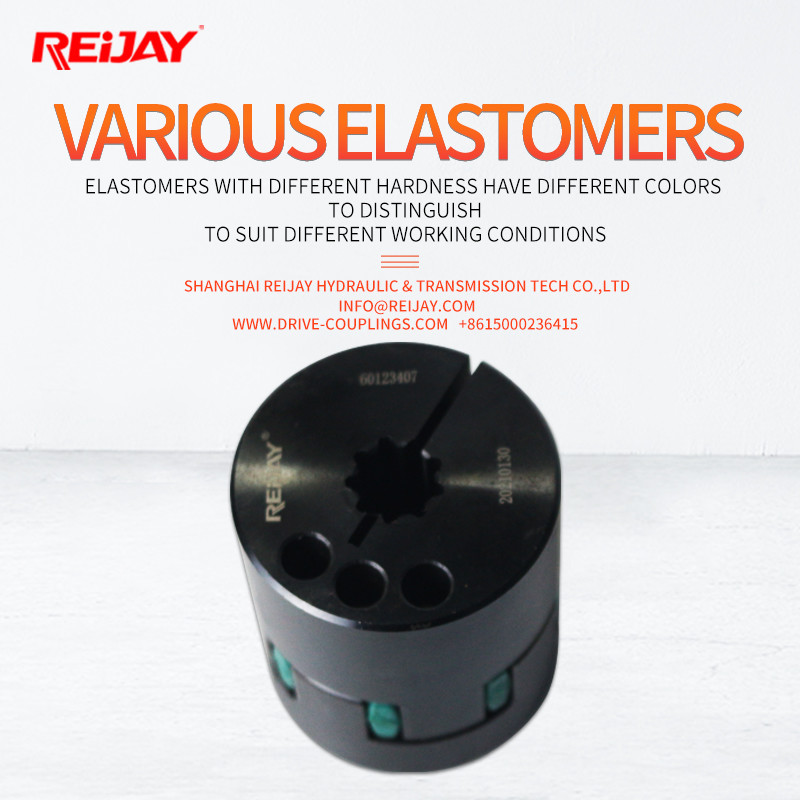

The Rexroth coupling replacement Flexible Jaw Coupling consists of the same left-hand and right-hand tooth elements with a flexible "spider" between them, resulting in a toothed driver with certain bending ability. You can specify a durometer for spider elastomers to establish a harder or softer connection between shafts. Mating elements are sometimes pressed together to eliminate any rebound in the system. Spiders are a wear element that can be replaced without changing the chin. The chin half is usually made up of three teeth, but sometimes two and four teeth are seen.
Technical Specifications
| Type | Bans | Dimensions [mm] | Weight | Special Hub length | ||||||||||||||||
| Finish bores | L1 + | |||||||||||||||||||
| HubA | HubB | |||||||||||||||||||
| mln | max | min | max | A | B | Ba | L | L2 | E | s | b | C | C1 | dh | g | f | H* | [kg] | [mm] | |
| Material: Die cast Aluminium | ||||||||||||||||||||
| A15 | 4 | 15 | 26 | 26 | 28 | 10 | 8 | 1 | 6 | 12 | M5 | 5 | 8 | 0.025 | ||||||
| Al 9/24 | 6 | 19 | 19 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 0.13 | 55 |
| A24/32 | 8 | 24 | 16 | 32 | 55 | 40 | 53 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 026 | 60 |
| A28/38 | 10 | 28 | 28 | 38 | 65 | 48 | 63 | 90 | 35 | 20 | 2.5 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 0.46 | 60 |
| A38/45 | 14 | 38 | 38 | 45 | 80 | 66 | 79 | 114 | 45 | 24 | 3 | 18 | 37 | 39 | 38 | M8 | 15 | 19 | 0.90 | 70 |
| Material: Castimn (GG), SG Iron (GGG), Steel (St), Sintered steel (Si) | ||||||||||||||||||||
| A14/16 Sint | 4 | 16 | 30 | 30 | 35 | 11 | 13 | 15 | 10 | 10 | M4 | 5 | 12 | 0.14 | 185 | |||||
| A19/24 GG/St/Si | 6 | 19 | 12 | 24 | 40 | 32 | 39 | 66 | 25 | 16 | 2 | 12 | 20 | 21 | 18 | M5 | 10 | 14 | 035 | 55 |
| A24/32 GG/St/SI | 10 | 24 | 14 | 32 | 55 | 40 | 52 | 78 | 30 | 18 | 2 | 14 | 24 | 26 | 27 | M5 | 10 | 16 | 1.0 | 60 |
| A28/38 GG/St/Si | 12 | 28 | 28 | 38 | 65 | 45 | 62 | 90 | 35 | 20 | 25 | 15 | 28 | 29 | 30 | M6 | 15 | 18 | 1-6 | 80 |
| A38/45 GG/GGG/SVSi | 14 | 38 | 38 | 45 | 80 | 66 | 77 | 114 | 45 | 24 | 3 | 18 | 37 | 37 | 38 | M8 | 15 | 19 | 023 | 110 |
| A42/55 GG/GGG/St | 19 | 42 | 42 | 55 | 95 | 75 | 94 | 126 | 50 | 26 | 3 | 20 | 40 | 40 | 46 | M8 | 20 | 21 | 3.6 | no |
| A48/60 GG/GGG/St | 19 | 48 | 48 | 60 | 105 | 85 | 102 | 140 | 56 | 28 | 3.5 | 21 | 45 | 45 | 51 | M8 | 20 | 22 | 4.8 | no |
| A55/70 GG/GGG/St | 19 | 55 | 55 | 70 | 120 | 98 | 118 | 160 | 65 | 30 | 4 | 22 | 52 | 52 | 60 | M10 | 20 | 23 | 7.4 | 140 |
| A65/75 GG/GGG/St | 22 | 65 | 65 | 75 | 135 | 115 | 132 | 185 | 75 | 35 | 4.5 | 26 | 61 | 59 | 68 | M10 | 20 | 27 | 10.9 | 140 |
| A75/90 GG/GGG/St | 30 | 75 | 75 | 90 | 160 | 135 | 158 | 210 | 85 | 40 | 5 | 30 | 69 | 65 | 80 | M10 | 25 | 31 | 177 | 195 |
| A90/100 GG/GGG/St | 40 | 90 | 90 | 100 | 200 | 160 | 180 | 245 | 100 | 45 | 5.5 | 34 | 81 | 81 | 100 | MIO | 25 | 35 | 29.5 | 140/210 |
| A100/110 GG/GGG/St | 55 | 110 | 225 | 200 | 270 | 110 | 50 | 6 | 38 | 89 | 113 | M12 | 30 | 39 | 435 | |||||
| A110/125 GG/GGG/St | 65 | 125 | 255 | 230 | 295 | 120 | 55 | 6.5 | 42 | 96 | 127 | M16 | 35 | 43 | 063 | |||||
| A125/145 GG/GGG/St | 65 | 145 | 290 | 265 | 340 | 140 | 60 | 7 | 46 | 112 | 147 | M16 | 40 | 47 | 095 | |||||
